Wireless Back-Up Sensor

DesignTech's New Wireless Back-Up Sensor is the Ultrasonic Back-Up Guidance System. It warns you as your vehicle approaches an object in the detection zone. An alarm sounds, increasing in intensity the closer you get to the object. The digital read-out displays distance of the object behind the vehicle. With both audio and visual warning, you are able to back your vehicle with confidence and safety.

Features:

• Easy wireless installation
  from back to front

• • Distance to nearest object
    behind vehicle is displayed in
    either meters or feet

  • Alarm sound increases in
    intensity as distance to object
    decreases (sound can be turned on or off)

  • Detects from 1 to 6.6ft (.4 to 2 meters)

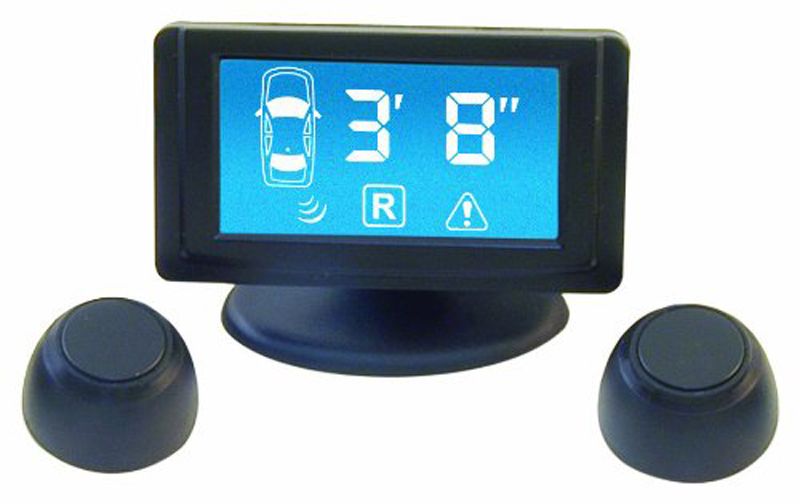

  • Compact, wireless digital display

  • 2 ultrasonic rear sensors

  • 4-stage audio and visual display

  • Aids reversing in all weather

Installation Instructions:

• Display connects to ignition
  and ground

• Sensors connect to control
  module in trunk which connects
  to reverse light wire and ground

• Installation instructions
  (click to view)
