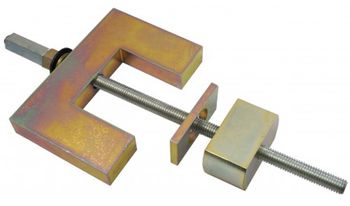

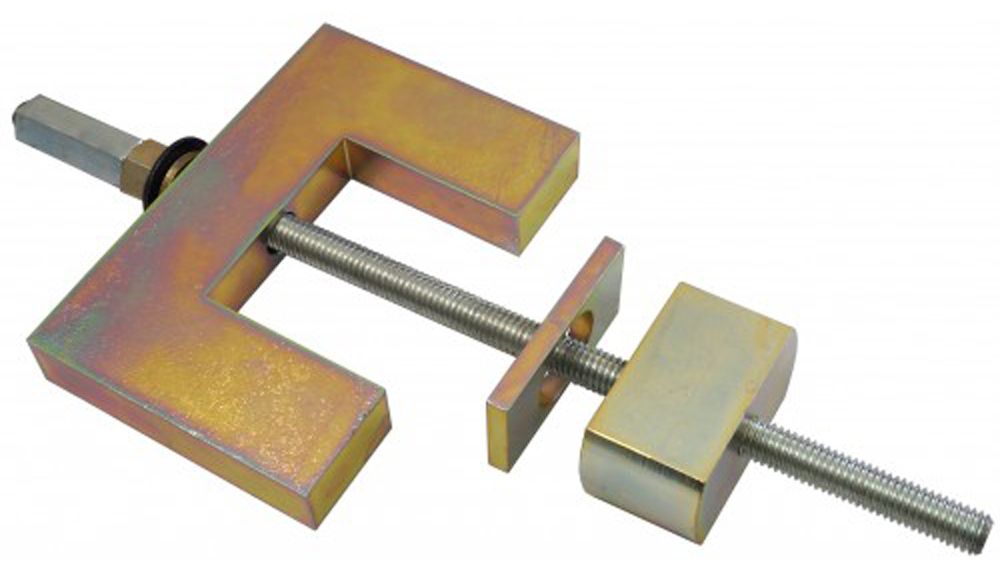

CTA BMW Trailing Arm Bushing Removal & Installation Tool

CTA BMW Trailing Arm Bushing Removal & Installation Tool
Item #:XXXCTA7642
Rating:
Availability:Usually ships the next business day
Our Price:$103.95
Sale Price:$98.95
You Save:
$5.00
Quantity:
FREE SHIPPING ON ORDERS OF $69 OR MORE
Ground Shipping Only. No PO Boxes
  • For E36 & E46 (3 Series only)

  • Drive End: 16mm Hex

  • Will not service some E36 with
    newer bushing style





Instructions:

Removal:

  • Unbolt shock absorber at trailing arm. Remove
    2 bolts holding S-shape brake line to trailing arm

  • Mark forward trailing arm carrier bracket for later
    re-installation. Unbolt forward trailing arm carrier
    bracket from chassis and lower front of trailing
    arm to gain access to bushing.

  • Unbolt bracket from bushing and remove from
    trailing arm. Mark so that the new bushing can
    be inserted in the same orientation

  • Install bushing tool on trailing arm. Set aside rectangular washer
    (this part will only be used when installing new bushing)
    Thread the threaded block over the threaded rod bored-out
    portion first (to fit over the metal portion of bushing)

  • Insert rod through bore of bushing and slip U-shaped part over rod
    Slip one steel washer over threaded rod. Thread on short nut and
    snug assembly in place on trailing arm. Thread second, long nut
    and jam against first, tightening the two using a pair of wrenches.
    NOTE: Be sure U-shaped block seats neatly against trailing arm
    and threaded block seats neatly against the bushing ONLY

  • Begin tightening nut. If excessive force is required, be sure tool
    components are properly seated against their respective parts
    NOTE: use penetrating fluid to loosen corroded bushings and housings

  • Continue tightening nuts to slowly pull bushing out of trailing arm
    Once bushing is removed, clean surface of trailing arms bushing housing


Installation
:

  • Install bushing tool on subframe with U-shaped
    block seated against inner face of trailing arm

  • SlipSlip new bushing over threaded rod. Slip
    rectangular washer over threaded rod and
    seat against new bushing

  • Thread threaded block down the rod
    until snug against rectangular washer

  • Offset the marked bushing about 1/8” opposite
    the tightening direction. The reinstallation of the
    bushing will align itself

  • Lubricate bushing with soapy water and begin
    tightening nut to draw bushing into housing
    Be sure bushing is drawn in evenly

  • Remove tool and re-install bushing carrier
    bracket (using the mark you made earlier)
    brake line and shock absorber





Applications:

Make Model Year Code
BMW 318i 1992-1999 E36
BMW 318ic 1992-1999 E36
BMW 318is 1992-1999 E36
BMW 320i 1999-2005 E46
BMW 323Ci 1999-2005 E46
BMW 323i 1999-2005 E46
BMW 323ic 1992-1999 E36
BMW 323is 1992-1999 E36
BMW 325Ci 1999-2005 E46
BMW 325i 1992-1999 E36
BMW 325i 1999-2005 E46
BMW 325ic 1992-1999 E36
BMW 325is 1992-1999 E36
BMW 325xi 1999-2005 E46
BMW 328Ci 1999-2005 E46
BMW 328is 1992-1999 E36
BMW 328is 1999-2005 E46
BMW 330Ci 1999-2005 E46
BMW 330i 1999-2005 E46
BMW 330xi 1999-2005 E46
BMW M3 1995-1999 E36
BMW M3 1999-2005 E46
