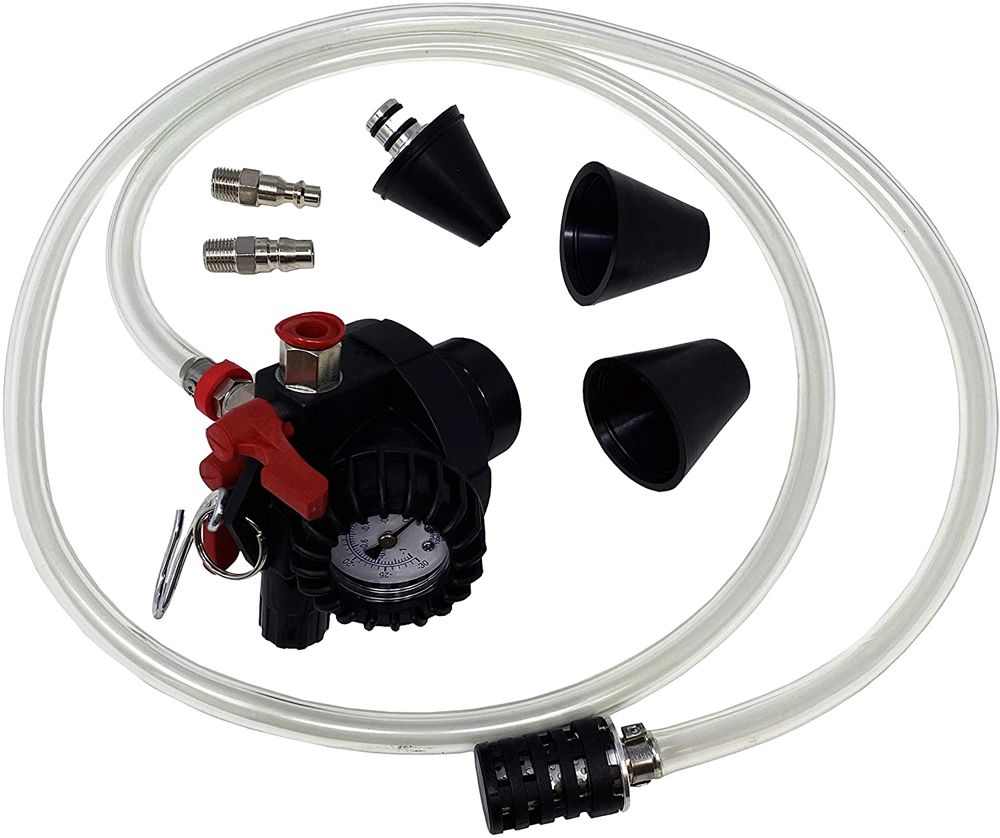

CTA Vacuum Cooling System Filler

• Destroys trapped air from cooling system

• Can test for any coolant system leaks

• Refills cooling system

• Quick, clean and easy service

• Rubber body, with adapters

• Adapters cover most vehicle radiators

Instructions:

Purging:

• Connect cone adapter to the radiator neck. Add cone sleeves, as needed, making sure seal is tight

• Close valve to coolant suction hose

• Using proper air fitting, connect shop air and open valve to air line

• Check vacuum gauge to monitor purge process. When gauge reads between 50~60 mm Hg (6.67 – 8 kPa),
  vacuum is set. Coolant hoses should be collapsed and free of air. If you cannot reach this setting, check for leaks

Coolant Refilling:

• After following steps above, close valve to air line. Vacuum will remain in system

• With both switches closed, put suction hose in coolant container.
  Open switch tosuction hose and vacuum in system will suck coolant in

• After filling, close the switch and check the coolant level.
  If the coolant level is “OK,” process is complete

• Disconnect air and open hose switch to release excess fluid back into container
