What is the benefit of the Mono-Drive hub?

The Mono-Drive hub is made from heat-treated chromoly for strength and durability. Its solid design helps extend input shaft life by providing a continuous spline connection.

Are replacement discs available for this clutch kit?

Yes, the Mod-Twin clutches are fully rebuildable. Replacement discs can be ordered separately if needed.

What is the pedal feel like with this clutch?

The diaphragm spring undergoes an exclusive four-stage heat treating process. This provides a consistent pedal feel that requires moderate effort.

ACT Chevy Camaro/Corvette LS1/LS2/LS3/LS6/LS7 Mod-Twin 10.5 XX Rigid Disc Race Clutch Kit

1 / 4

ACT

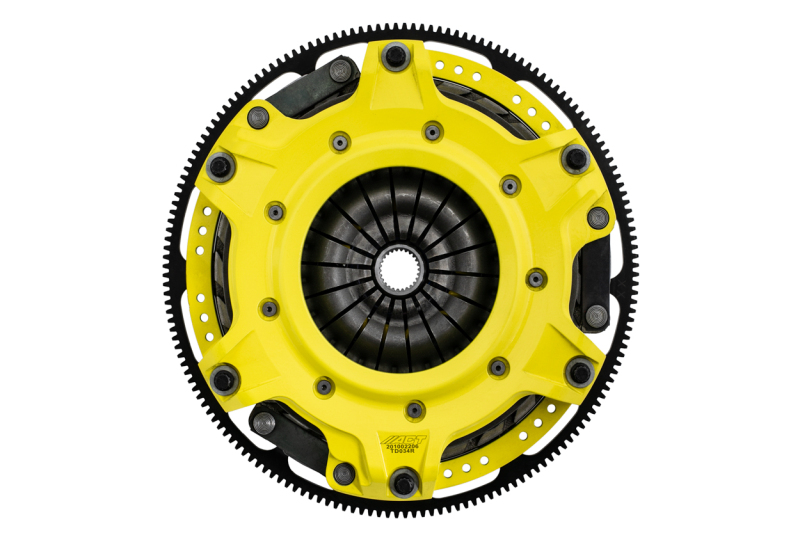

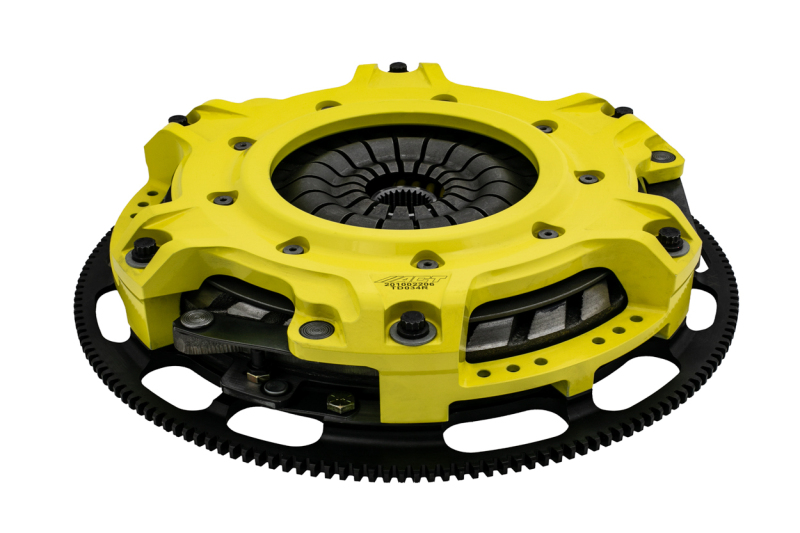

ACT Chevy Camaro/Corvette LS1/LS2/LS3/LS6/LS7 Mod-Twin 10.5 XX Rigid Disc Race Clutch Kit

Name: ACT Chevy Camaro/Corvette LS1/LS2/LS3/LS6/LS7 Mod-Twin 10.5 XX Rigid Disc Race Clutch Kit
Brand: ACT
Price: 2165.59 USD
Availability: InStock

$2165.59

ACT Mod-Twin clutch kit for high-powered Chevy LS engines. Features ceramic friction plates and a solid hub for aggressive launches and quick shifts.

Key Features

Puck-style ceramic friction plates — deliver high friction coefficient, superior heat capacity, and long clutch life.
Solid Mono-Drive Chromoly hub — heat treated for strength and durability, extending input shaft life.
Modular design — allows for easier service and replacement of individual components.
Diaphragm spring — undergoes a four-stage heat treating process for consistent pedal feel.
Lightweight, rigid design — allows for quicker shifts.

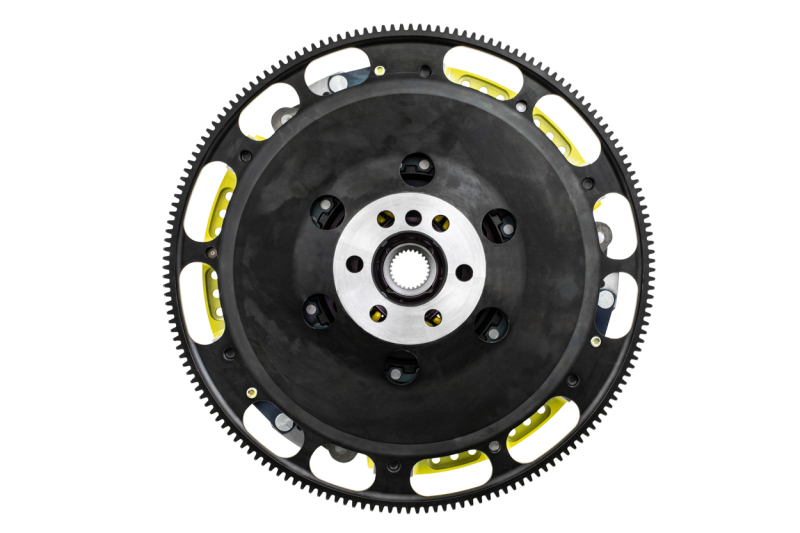

Includes CNC-machined and dynamically balanced flywheel.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Will this fit your vehicle?

Compatible with 36 vehicles

Need Help?

631-982-0042

Fast Shipping

Nationwide delivery

Secure Checkout

Safe & protected

Since 1957

Family-owned

Product Details

T3R-G13 Mod-Twin 10.5 XX Rigid Race Kit tackles aggressive launches and rapid shifting of high-powered machines by combining twice the ceramic friction surfaces with a no-nonsense solid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process to provide a consistent pedal feel requiring moderate effort. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive Chromoly hub, which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, alignment tool and pilot bearing (where applicable). Mod-Twin clutches are fully rebuildable, and replacement discs may be ordered separately.
