Specifications
- Brand
- AEM
- Part #
- 30-8401M
- UPC
- 840879027094

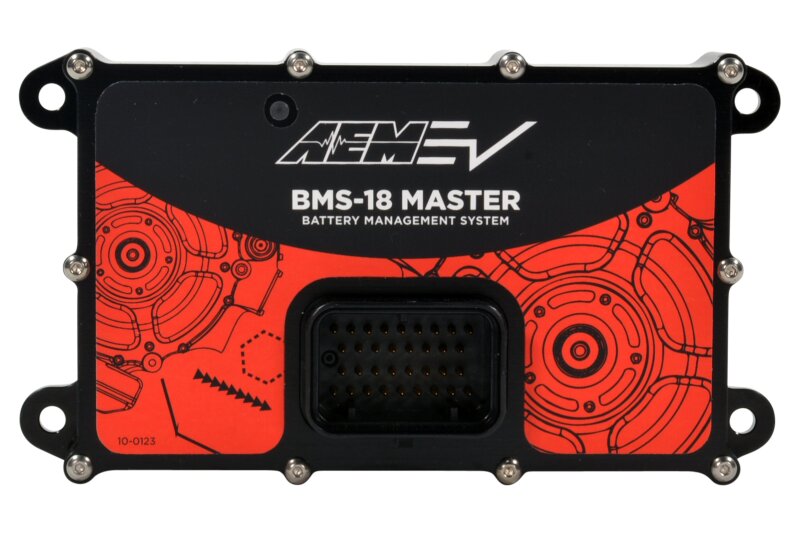

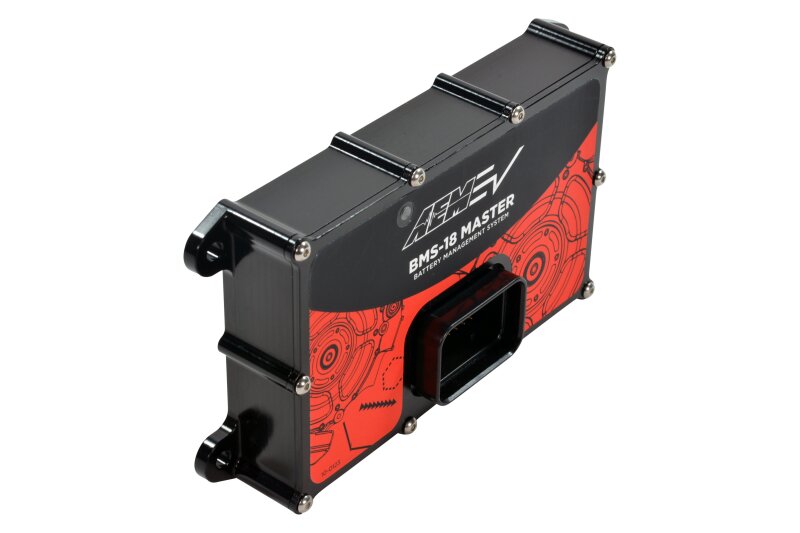

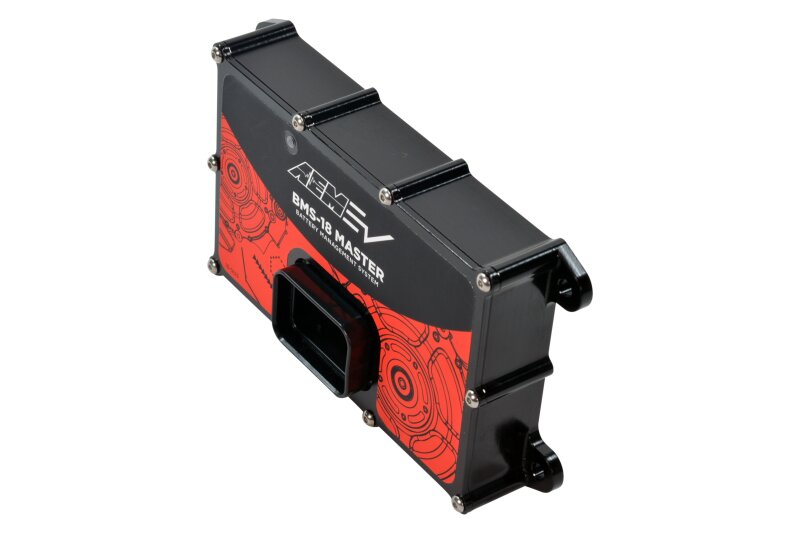

AEM Battery Management System Master (MUST BE USED WITH AEM VCU - 18 Cell Taps)
$404.53
Manages your battery pack when used with an AEM VCU. Connects to battery cells and communicates pack status.
Key Features
- Battery Management System Master Module — Controls battery packs.
- Requires AEM VCU — Essential for system operation.
- Supports 18 battery cell taps.
- Connects to BMS-18 Satellite modules for expanded capacity.
- Includes CAN communication interface.
- Includes J1772 charging connections.
Product Details
The VCU communicates with the BMS via the Master Module and all battery packs need at least one Master unit. The Satellites expand the capability of the Master by an additional 18 cells and 3 thermistors per additional Satellite connected. The Satellite Modules are connected to their Master via a high-speed serial interface (isoSPI) that allows additional units to be daisy chained together, adding as many Satellites as necessary for the battery pack configuration.The BMS is implemented as two different Module types: the BMS Master and the BMS Satellite. Master also contains the CAN communication interface and J1772 charging specific connections needed for each battery pack.The VCU is responsible for all BMS control logic. All setup and calibration items can be modified using the AEMCal user interface.The AEM Battery Management System (BMS-18) is comprised of three components:3. BMS-18 Satellite(s)2. BMS-18 Master1. VCU
Description
Battery Management System MasterSpecifications
- Brand
- AEM
- Manufacturer Part #
- 30-8401M
- UPC
- 840879027094
