Specifications
- Brand
- AEM
- Part #
- 30-8401S
- UPC
- 840879027087

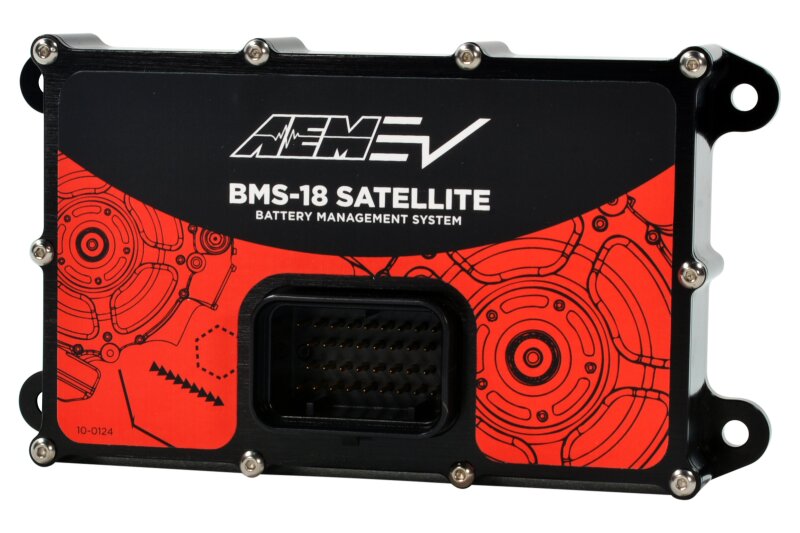

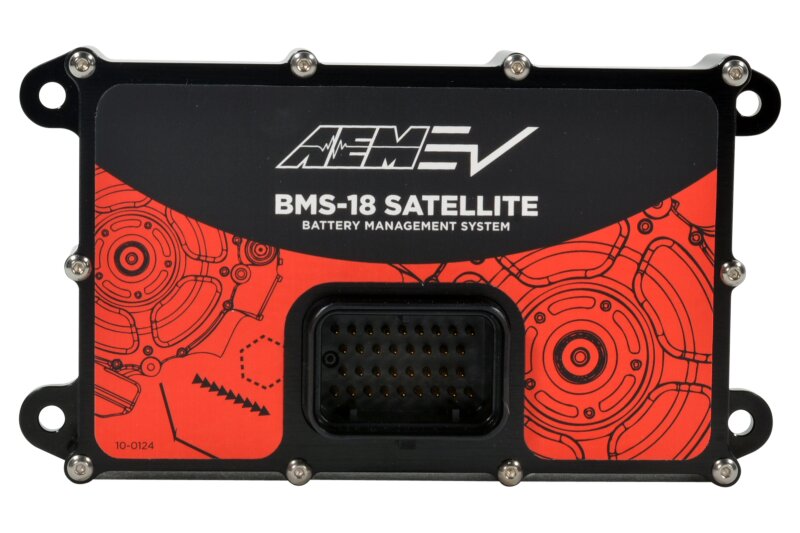

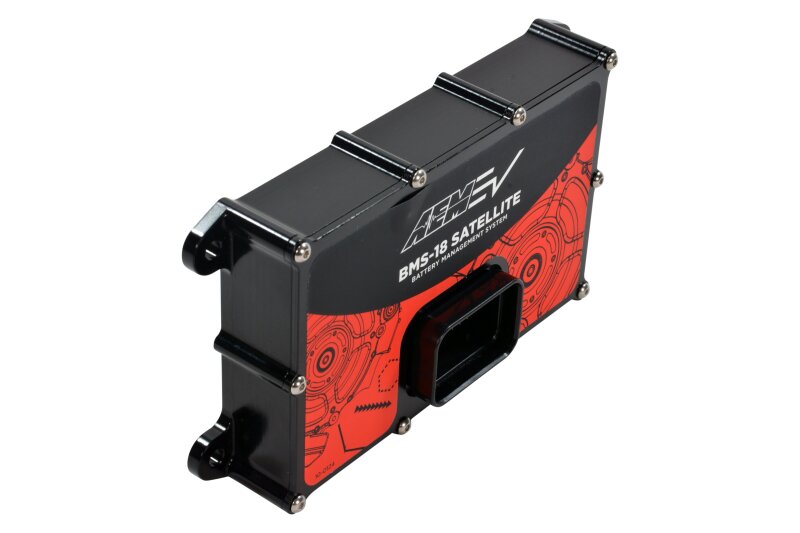

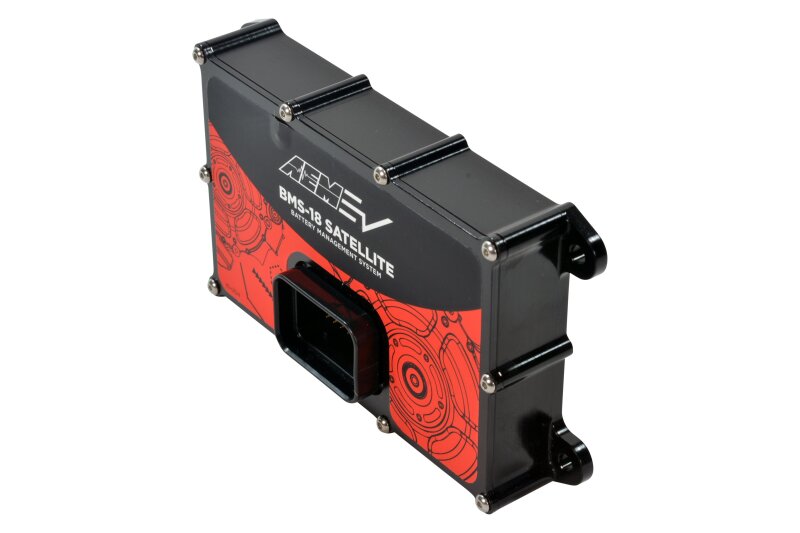

AEM Battery Management System Satellite (MUST BE USED WITH MASTER - 18 Cell Taps)
$347.39
Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.
AEM's BMS Satellite module expands your EV battery monitoring system. Connects to the Master Module to add more cell and temperature readings.
Key Features
- Expands battery monitoring — Connects to the BMS-18 Master module to add more cell and temperature readings.
- isoSPI communication — Uses a high-speed serial interface to link Satellite modules to the Master.
- Scalable design — Allows you to daisy-chain multiple Satellite modules as needed for your battery pack.
- Measures 18 cells and 3 temperatures — Each module supports monitoring of individual cells and temperature points.
- VCU controlled — The Vehicle Control Unit manages the overall BMS logic.
Product Details
The VCU communicates with the BMS via the Master Module and all battery packs need at least one Master unit. The Satellite Modules are connected to their Master via a high-speed serial interface (isoSPI) that allows additional units to be daisy chained together, adding as many Satellites as necessary for the battery pack configuration.The BMS is implemented as two different Module types: the BMS Master and the BMS Satellite. Each Module is capable of measuring up to 18 cells and 3 temperatures (thermistors) but the Master also contains the CAN communication interface and J1772 charging specific connections needed for each battery pack.The VCU is responsible for all BMS control logic. All setup and calibration items can be modified using the AEMCal user interface.The AEM EV Battery Management System (BMS-18) is comprised of three components:3. BMS-18 Satellite(s)2.BMS-18 Master1. VCU
Description
Battery Management System SatelliteSpecifications
- Brand
- AEM
- Manufacturer Part #
- 30-8401S
- UPC
- 840879027087
