What kind of fuel can I use with the Aeromotive A2000 pump?

The Aeromotive A2000 fuel pump is alcohol compatible, meaning it can be used with alcohol-based fuels. It also works with gasoline.

What makes the bypass valve on this pump different?

This pump uses a diaphragm-controlled, adjustable bypass valve. This design helps to dampen pressure spikes and provides smoother, more controlled fuel flow and pressure compared to typical poppet-style valves.

Can this fuel pump be shipped to California?

No, this fuel pump is not CARB approved and cannot be shipped to California due to emissions regulations.

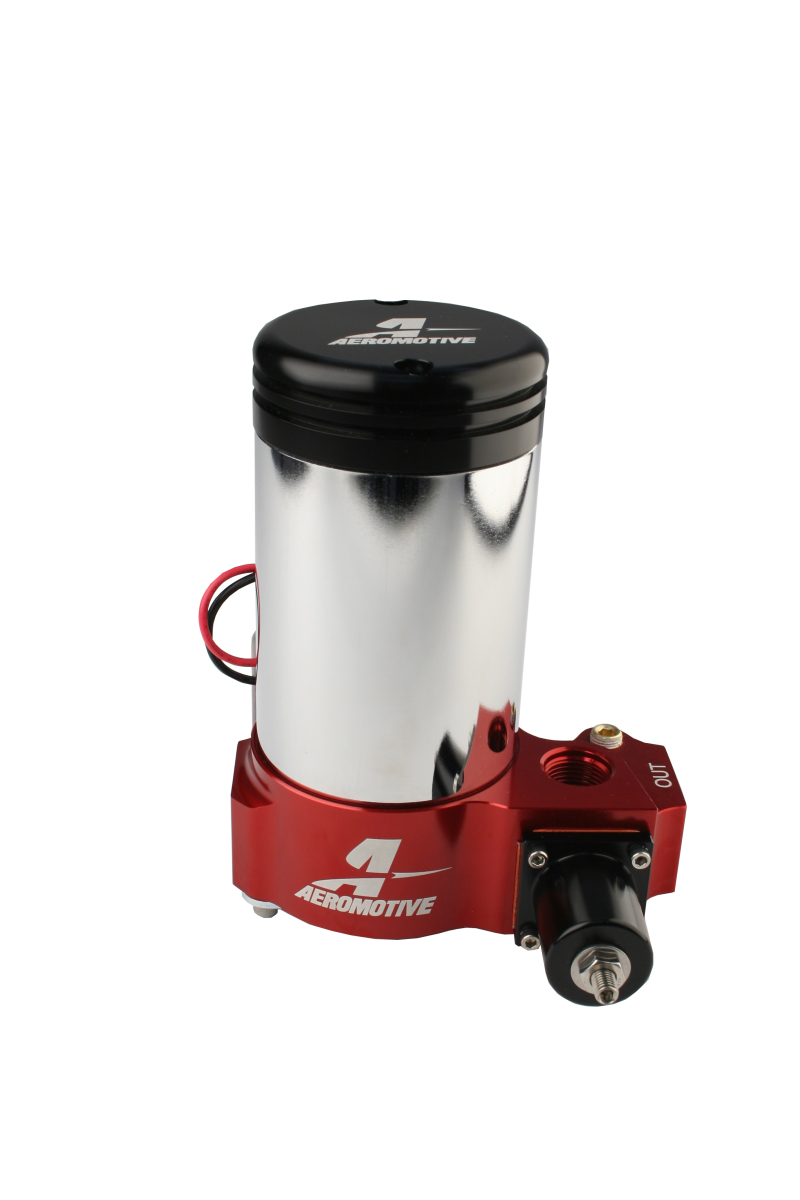

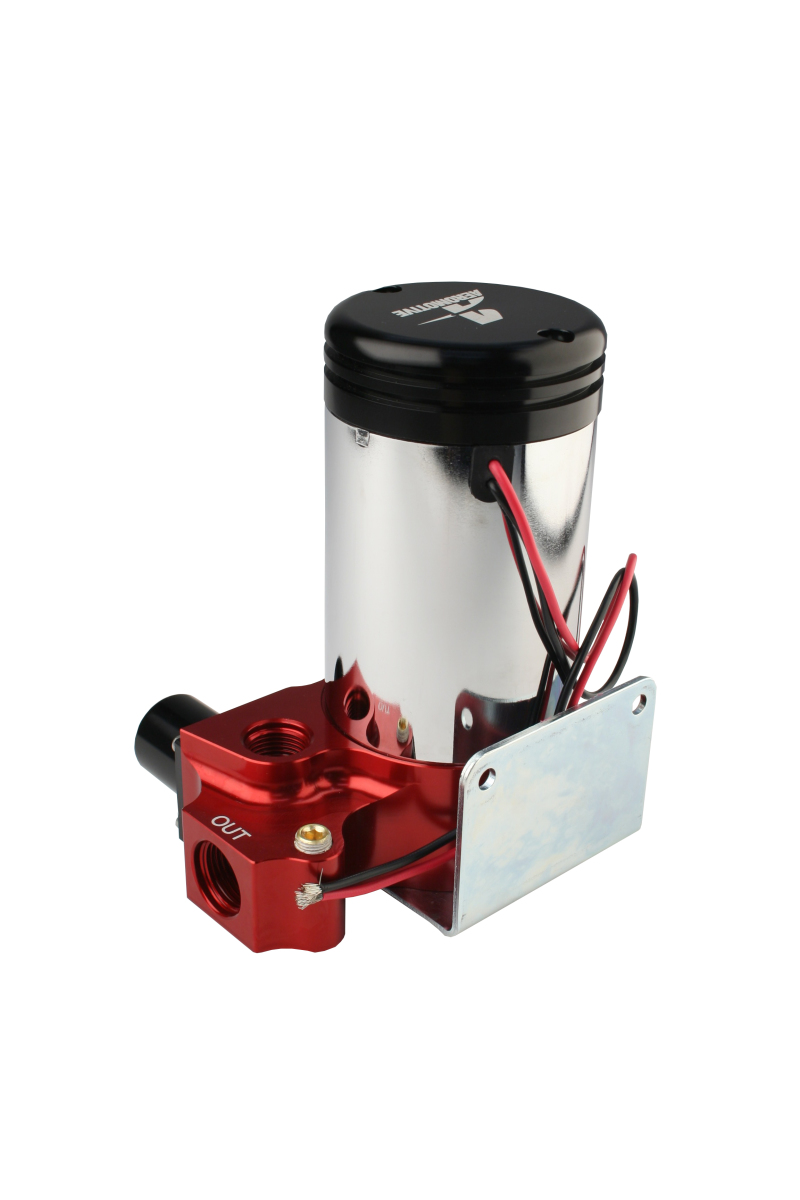

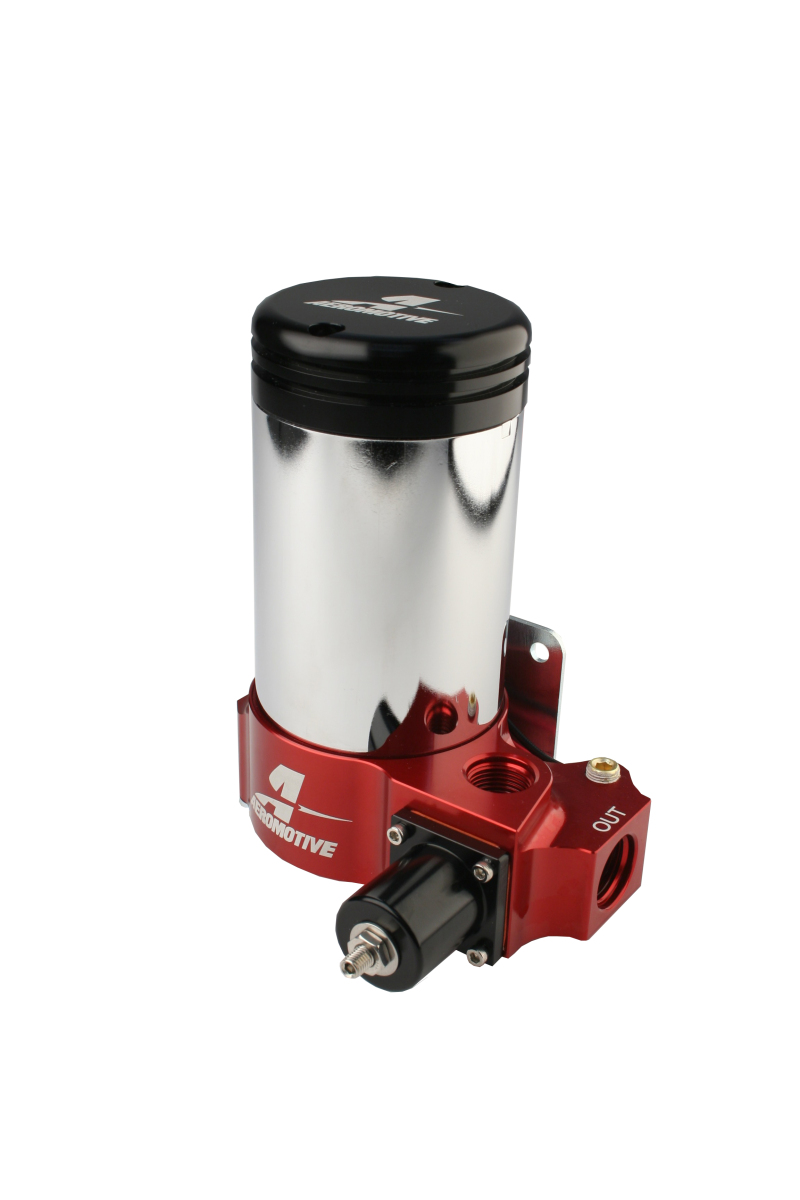

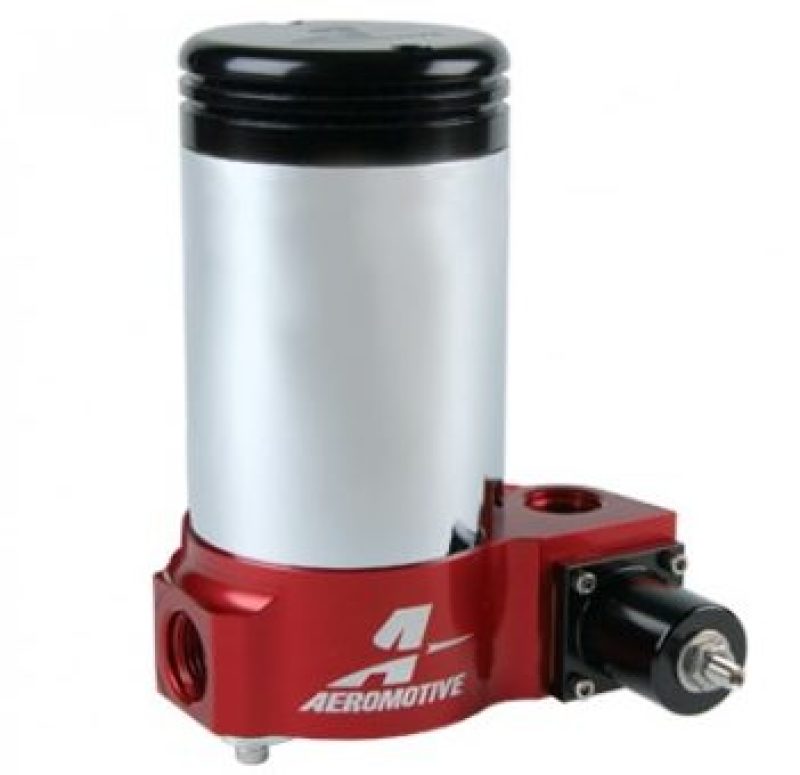

Aeromotive A2000 Drag Race Carbureted Fuel Pump

1 / 17

Specifications

Brand: Aeromotive
Part #: 11202
UPC: 684980000023

Aeromotive A2000 Drag Race Carbureted Fuel Pump

Name: Aeromotive A2000 Drag Race Carbureted Fuel Pump
Brand: Aeromotive
SKU: aeromotive-aeromotive-a2000-drag-race-carbureted-fuel-pump-t14-4339883
Price: 672.59 USD
Availability: InStock

$672.59

Only 3 left in stock

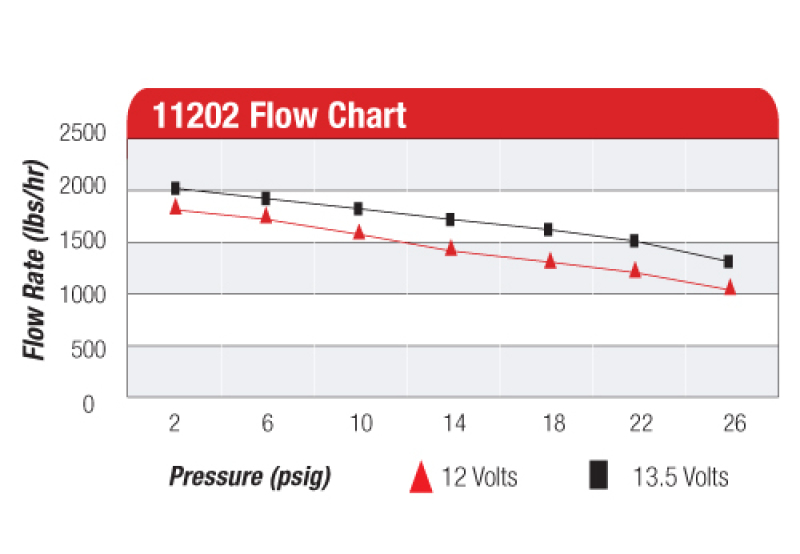

This Aeromotive A2000 fuel pump flows over 350 GPH and features an adjustable bypass valve for consistent fuel pressure.

Key Features

Flows over 350 GPH free flow — enough fuel for high-horsepower drag cars.
Adjustable diaphragm bypass valve — dampens pressure spikes for smoother, more consistent fuel delivery.
Low current draw motor — high torque design uses less power than comparable pumps.
Alcohol compatible — suitable for use with alcohol-based fuels.
ORB-10 inlet and outlet ports, ORB-8 return port — standard connections for fuel lines.
Proprietary seal design — prevents fuel leaks.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Product Details

From Stock Eliminator to Pro Mod, the Aeromotive A2000 is a versatile force to reckoned with and stands alone as a 'big' carbureted fuel pump. The A2000 flows enough fuel to support the world's quickest nitrous Pro Mods on gasoline, and is the industry's only fuel pump that uses a true diaphragm controlled, adjustable bypass valve, integral to the pump. This design dampens pressure spikes, delivering smoother, more controlled flow and pressure, ensuring more consistent E.T.s and win lights. High torque, low RPM motor design delivers more than 350 GPH free flow, while developing less current draw than any other pump in its class. Adjustable diaphragm bypass valve outperforms ineffective poppet designs, minimizing flow loss and pressure fluctuation to the regulator and carburetor. ORB-10 inlet and outlet ports with ORB-8 return and 1/8' NPT gauge port. Proprietary seal design eliminates leakage. Alcohol compatible. Multiple bolt patterns on the bottom of the pump body fit many chassis mounting options.
