Specifications
- Brand
- Aeromotive
- Part #
- 13137
- UPC
- 684980008609

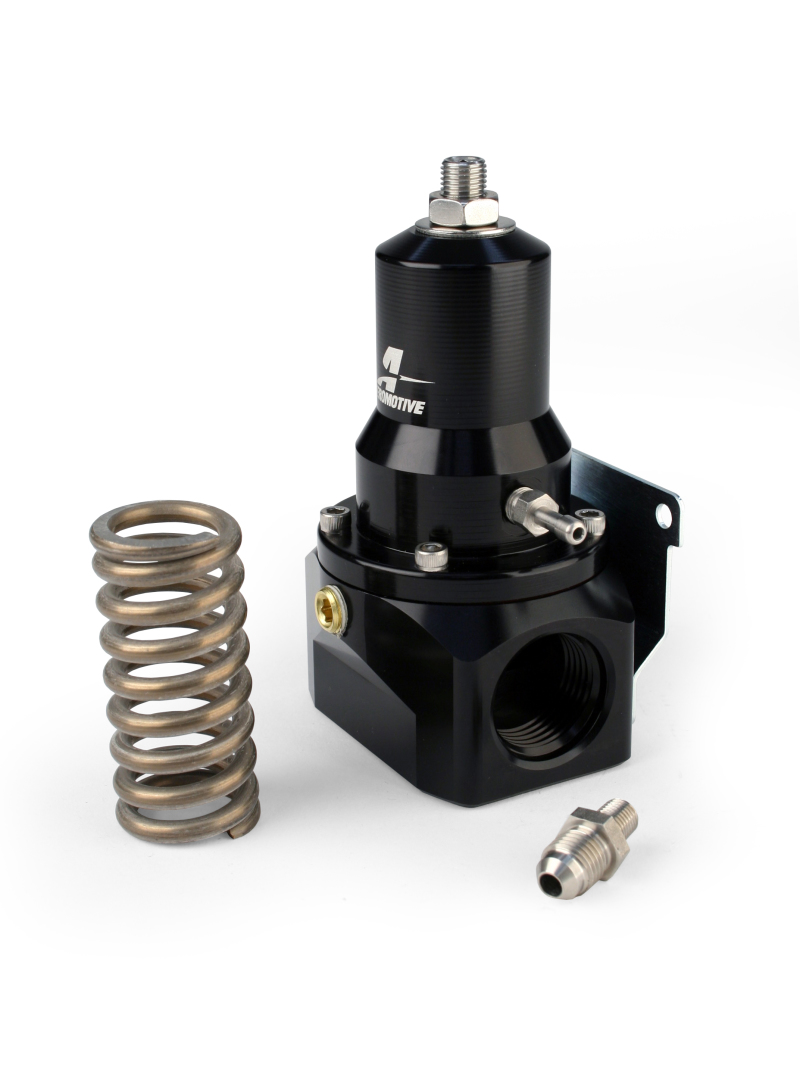

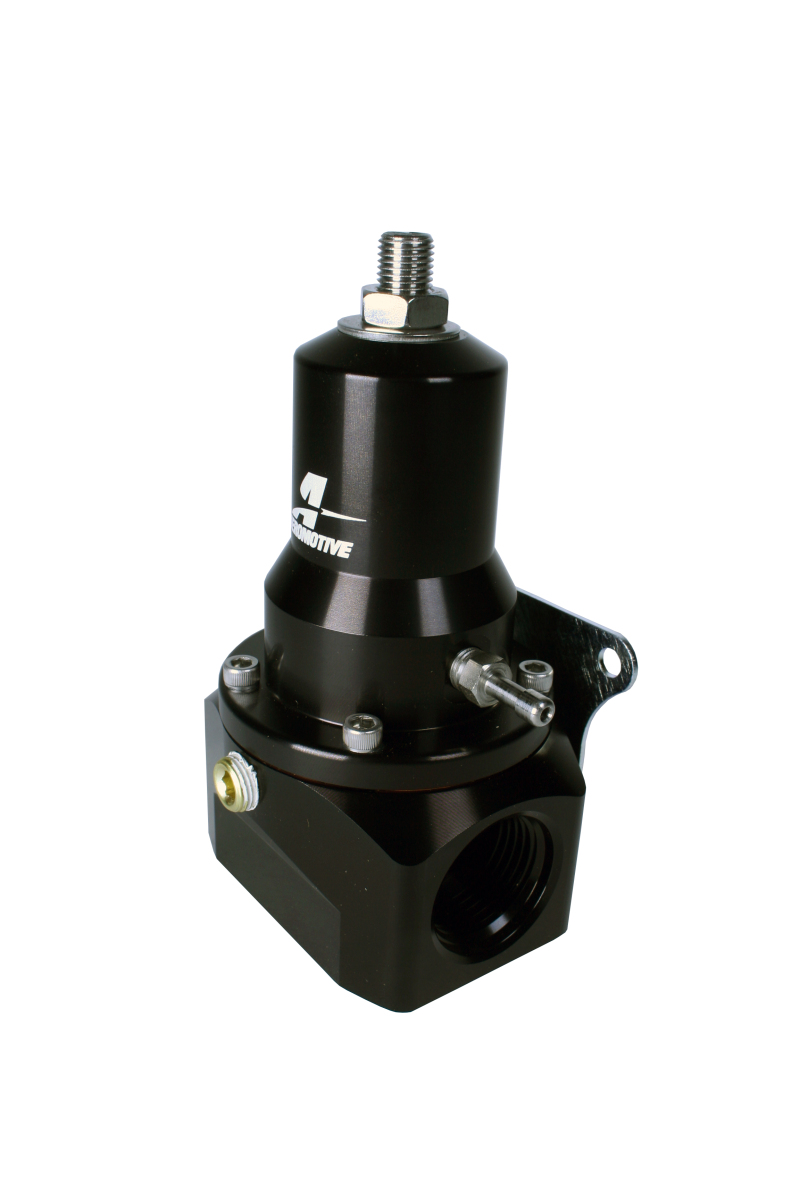

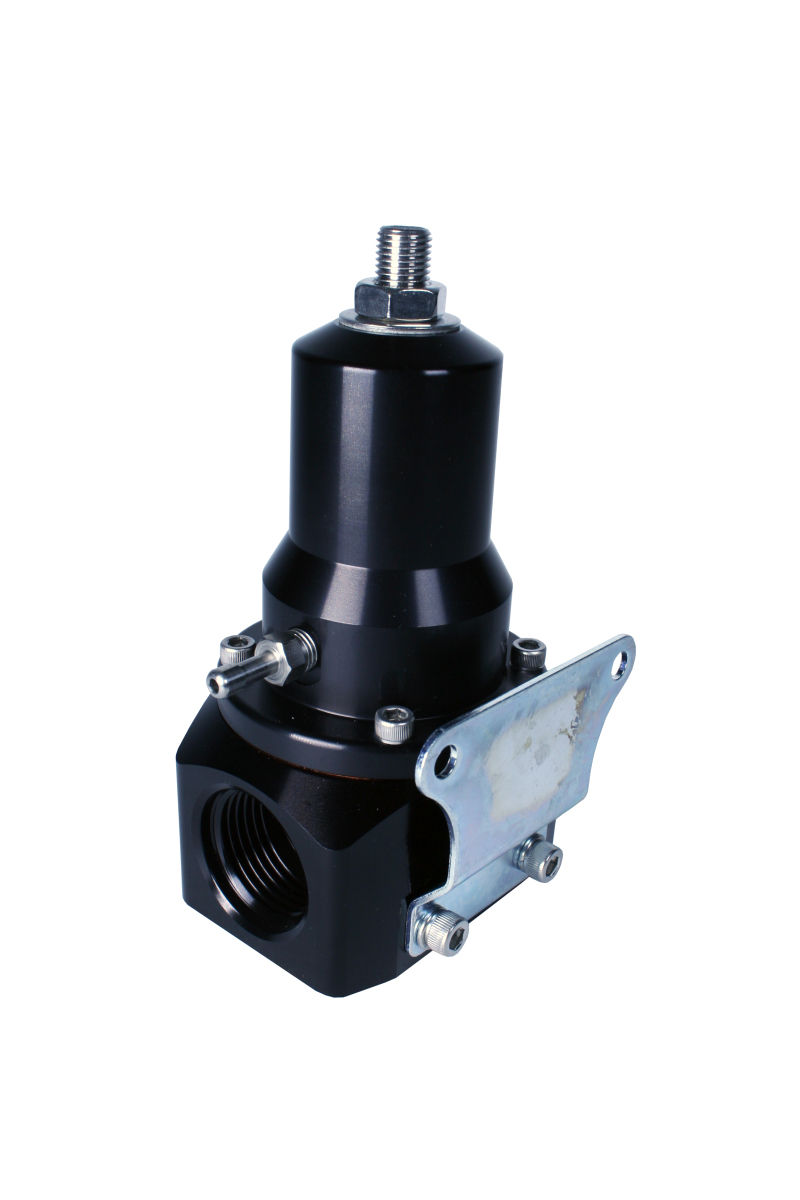

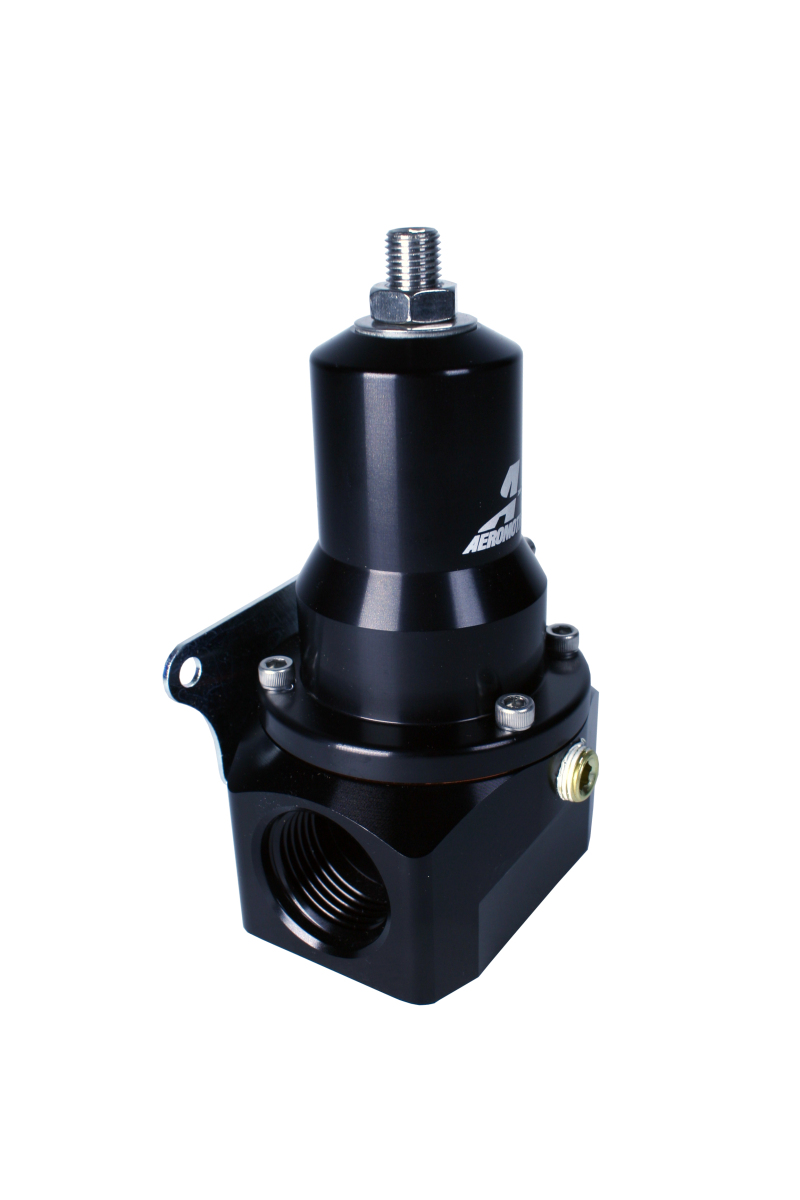

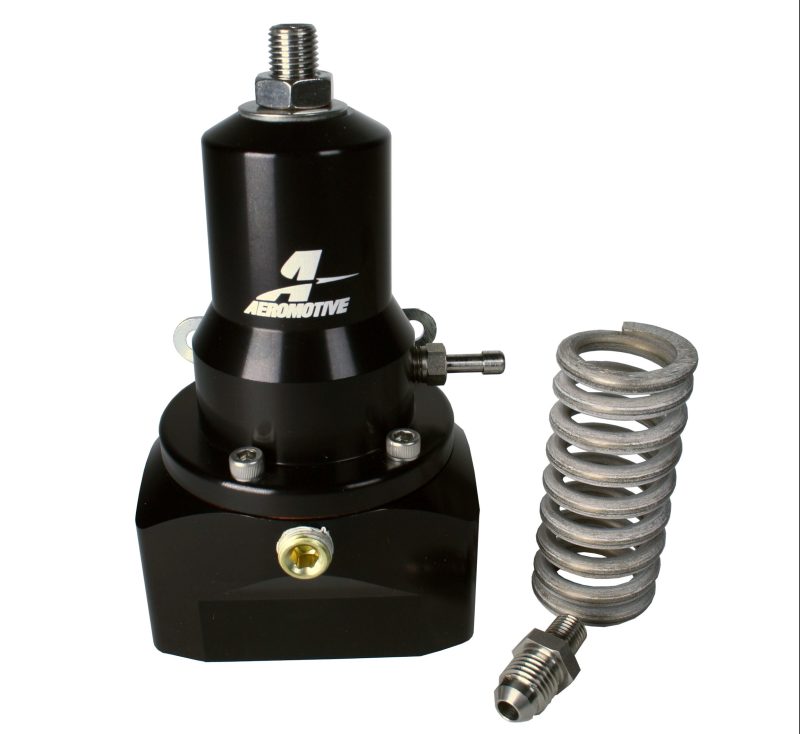

Aeromotive Adjustable Regulator - 30-120 PSI - .500 Valve - 2x AN-12 Inlets / AN-12 Return
$323.90
Aeromotive's adjustable fuel pressure regulator handles up to 32 GPM pumps and offers a wide pressure range with included springs.
Key Features
- Adjustable Pressure Range — Supports 30-75 PSI with the standard spring, and 75-120 PSI with the included high-pressure spring.
- High Flow Capacity — The .500-inch valve and seat can handle fuel pumps rated from 7 to 32 GPM.
- Dual Spring Design — Expands the operating pressure range while maintaining a low profile and reduced weight.
- Dual Inlet/Outlet Ports — Features two ORB-12 inlet/outlet ports for flexible fuel line routing.
- Boost and Vacuum Reference — Works with vacuum and boost on a 1:1 ratio with base fuel pressure.
- Compact Body — Designed for a low profile and reduced weight in your fuel system.
⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more
Product Details
Our ALL-NEW Extreme-Flow EFI Regulator now comes with -12 ports! It?s designed for use with Belt or Hex Drive Fuel Pumps. Compact, 2-Port Body with dual ORB-12 inlet/outlet ports and one ORB-12 return port. 0.500? high-flow valve/seat, able to handle 7-32 GPM Fuel Pumps. Dual springs expand the range of operating pressure while maintaining a low profile regulator with reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High Pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI.Our ALL-NEW Extreme-Flow EFI Regulator now comes with -12 ports! It's designed for use with Belt or Hex Drive Fuel Pumps. Compact, 2-Port Body with dual ORB-12 inlet/outlet ports and one ORB-12 return port. 0.500 high-flow valve/seat, able to handle 7-32 GPM Fuel Pumps. Dual springs expand the range of operating pressure while maintaining a low profile regulator with reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High Pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI.
Description
Extreme Flow EFI RegulatorSpecifications
- Brand
- Aeromotive
- Manufacturer Part #
- 13137
- UPC
- 684980008609
