What type of fuel pumps is this regulator designed for?

This regulator is designed to work with Aeromotive's A1000 Marine Fuel Pump or any similar style fuel pump.

Can I use this regulator with a naturally aspirated engine?

Yes, this regulator is suitable for naturally aspirated engines, as well as blow-through turbocharged or supercharged applications.

Does this regulator come with a fuel pressure gauge?

No, this regulator includes a 1/8' NPT port for you to install a fuel pressure gauge, but the gauge itself is not included.

FEATURED BRAND = Au-Tomotive Gold Shop Now →

Questions? Call Us:631-982-0042

M-F 8AM-4PM ET

Trusted Since 1957

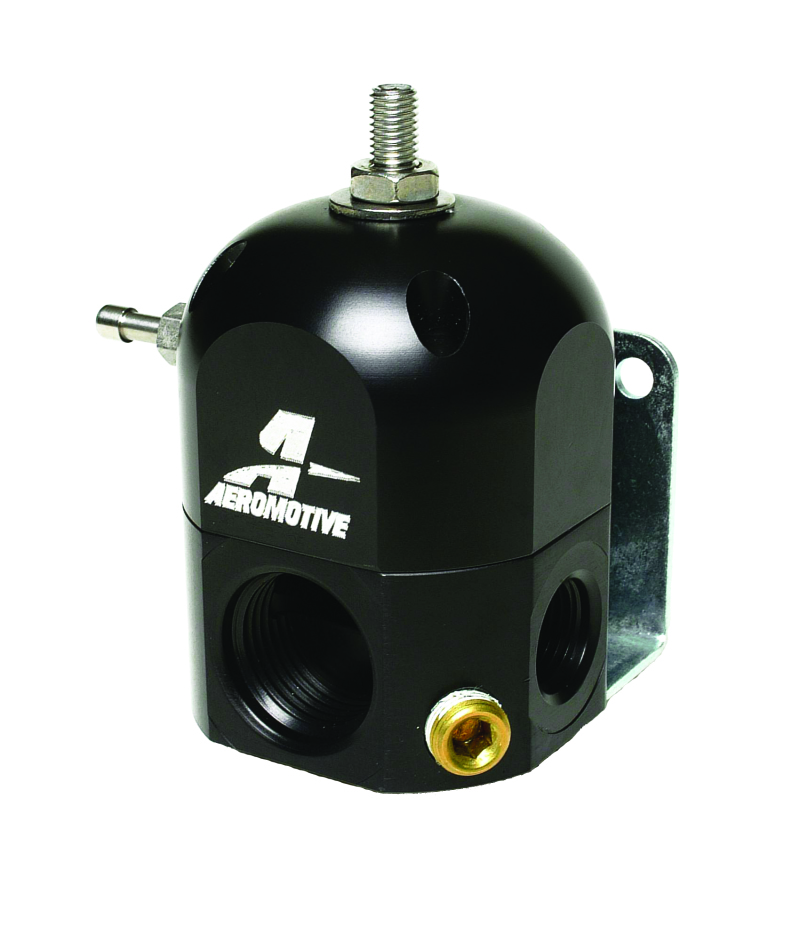

Aeromotive Marine Carb 2-Port Bypass Regulator

1 / 3

Specifications

Brand: Aeromotive
Part #: 13207
UPC: 684980001969

Aeromotive Marine Carb 2-Port Bypass Regulator

Name: Aeromotive Marine Carb 2-Port Bypass Regulator
Brand: Aeromotive
Price: 368.15 USD
Availability: InStock

$368.15

Aeromotive 13207 Marine Bypass Regulator. Keeps fuel pressure steady for naturally aspirated or boosted engines.

Key Features

Adjustable base fuel pressure — Set from 3 to 15 PSI.
1:1 boost reference — Fuel pressure rises with boost for consistent delivery.
Multiple port sizes — Features (1) ORB-10 inlet, (1) ORB-8 return, and (2) ORB-6 outlets.
Gauge port — Includes a 1/8' NPT port for a fuel pressure gauge.
Marine use — Designed for marine applications.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Product Details

Full volume at perfect pressure, the A1000 Regulator was designed for use with our Marine A1000 Fuel Pump or any similar style pump. This regulator is perfect for naturally aspirated or blow-through turbo-charged or supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-8 return port. (2) O RB-6 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost.Full volume at perfect pressure, the A1000 Regulator was designed for use with?our Marine A1000 Fuel Pump or any similar style pump. This regulator is perfect for naturally aspirated or ?blow-through? turbo-charged or supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-8 return port. (2) ORB-6 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost.
