What kind of engines is this fuel system designed for?

This Aeromotive Phantom 200 system is intended for naturally aspirated EFI engines that produce between 300 and 500 horsepower. It's specifically made for carb-to-EFI throttle body conversion systems.

What additional parts do I need to complete the fuel supply line installation?

You will need to supply your own AN-06 style fuel hose and hose-ends for the fuel supply line. These are sold separately and are not included in this kit.

Can this fuel system be used in California?

No, this system is not CARB approved and cannot be shipped to California due to emissions regulations. It is also subject to California Proposition 65 warnings.

1 / 3

Specifications

Brand: Aeromotive
Part #: 17171
UPC: 684980005936

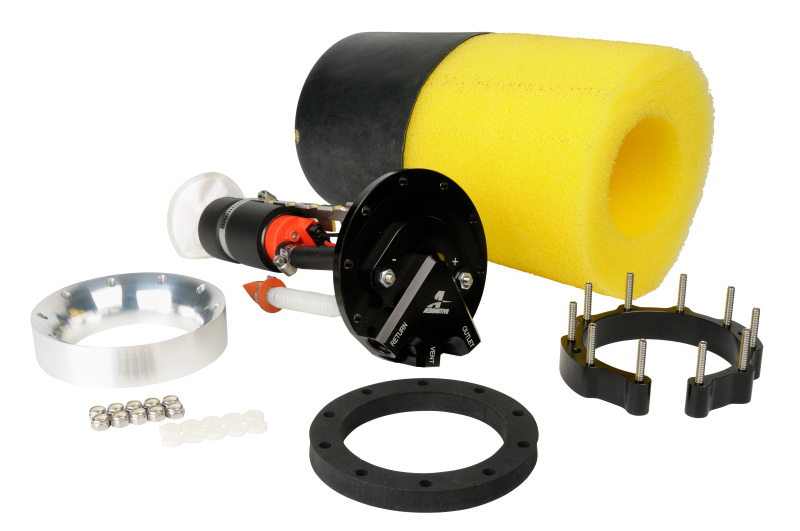

Aeromotive Phantom 200 Fuel System - Returnless w/Throttle Body

Name: Aeromotive Phantom 200 Fuel System - Returnless w/Throttle Body
Brand: Aeromotive
SKU: aeromotive-aeromotive-phantom-200-fuel-system-returnless-w-throttle-body-t14-4340240
Price: 1254.06 USD
Availability: BackOrder

$1254.06

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

This Aeromotive Phantom 200 fuel system is for returnless throttle body EFI conversions, supporting 300-500 HP.

Key Features

Complete returnless EFI fuel system kit — simplifies conversion for throttle body EFI systems.
Phantom Baffled Fuel Pump Kit with 200 LPH pump — supports 300-500 HP naturally aspirated engines.
Includes Aeromotive billet high-flow 10-micron paper fuel filter and bracket.
Comes with required ORB fittings and port plugs for installation.
Designed for EFI throttle body systems with ECU-controlled fuel pressure.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

About this part
