What is the pressure range for this regulator?

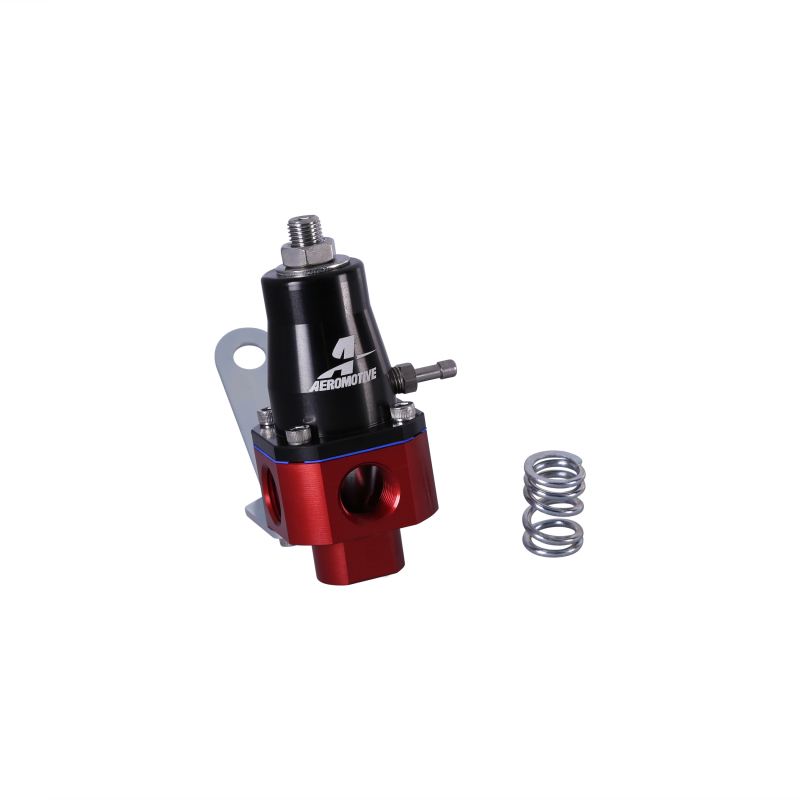

The regulator has two adjustable pressure ranges. With the installed standard spring, it's adjustable from 3 to 20 PSI. With the included high-pressure spring, it adjusts from 20 to 60 PSI.

What is boost reference, and how does this regulator handle it?

Boost reference means the regulator increases fuel pressure as your engine builds boost. This regulator references boost on a 1:1 ratio, so for every pound of boost, fuel pressure rises by one pound.

What else do I need to install this regulator?

You will need to install a return line from the bottom port of the regulator back to the top of your fuel tank. You'll also need appropriate 3/8 inch NPT fittings for your fuel lines.

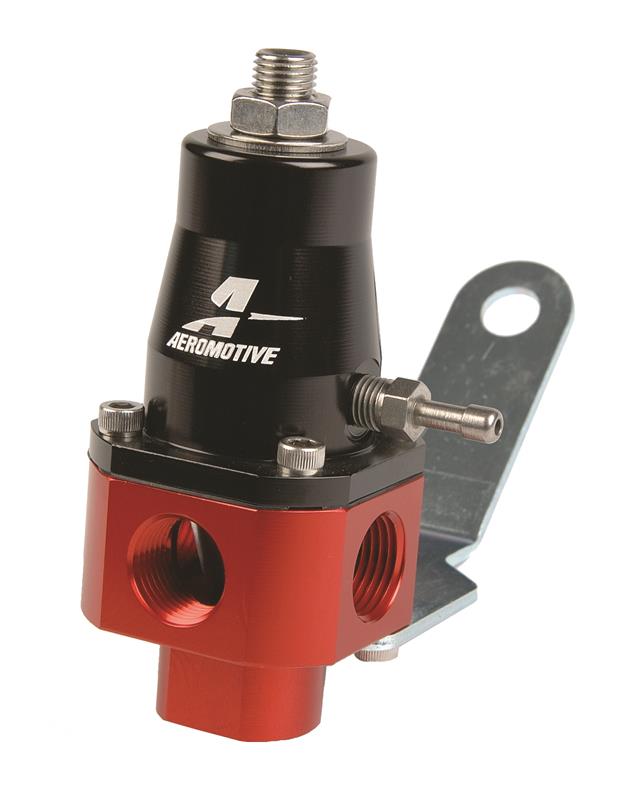

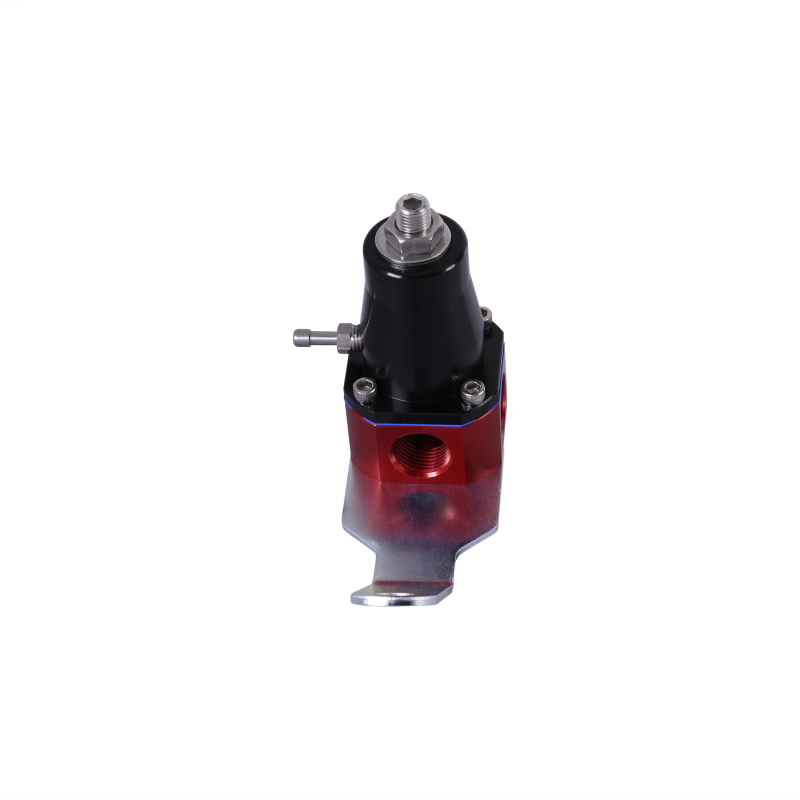

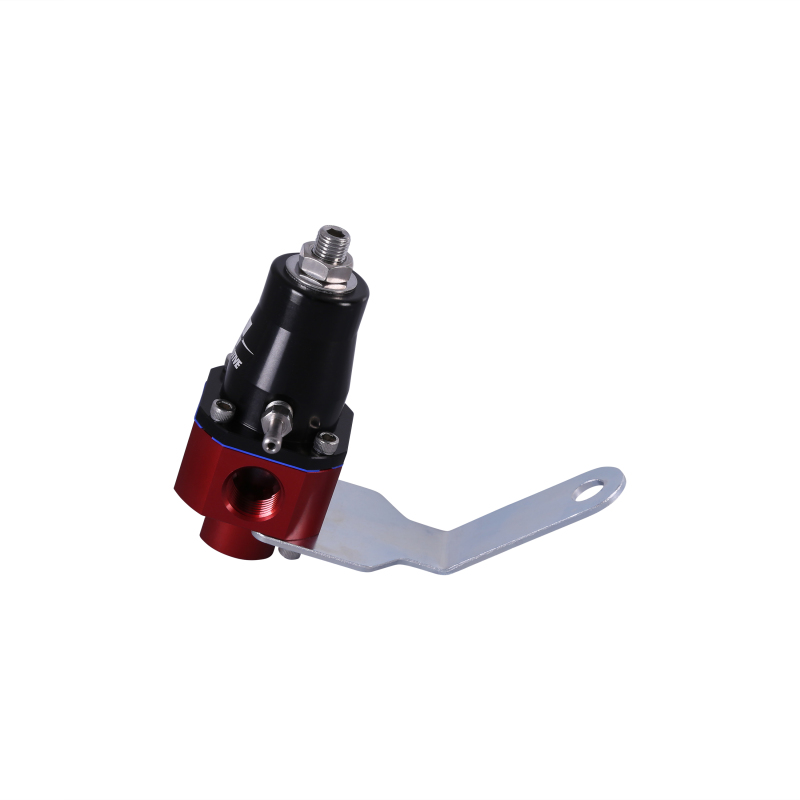

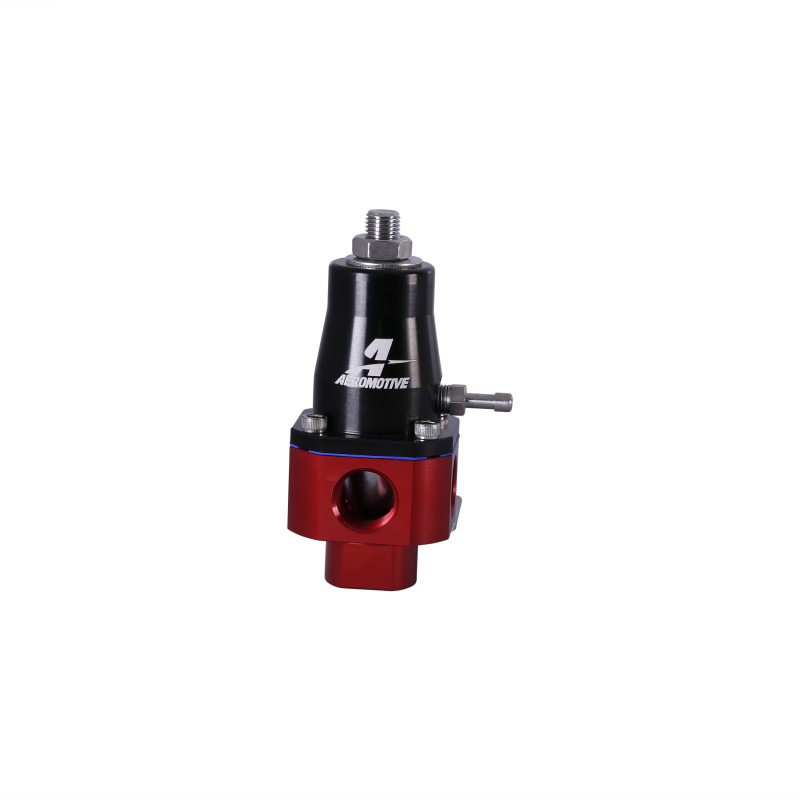

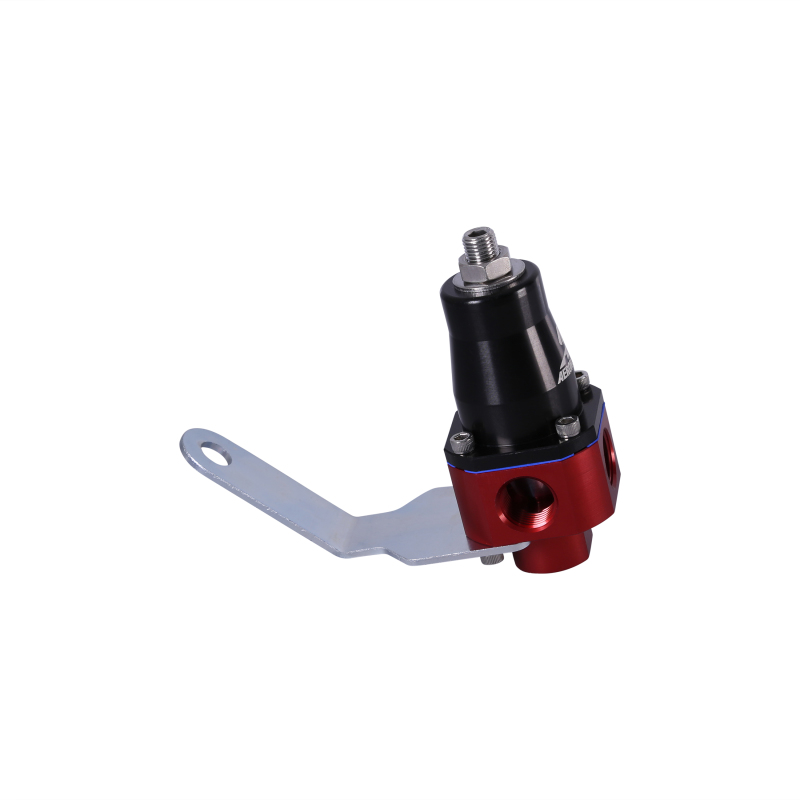

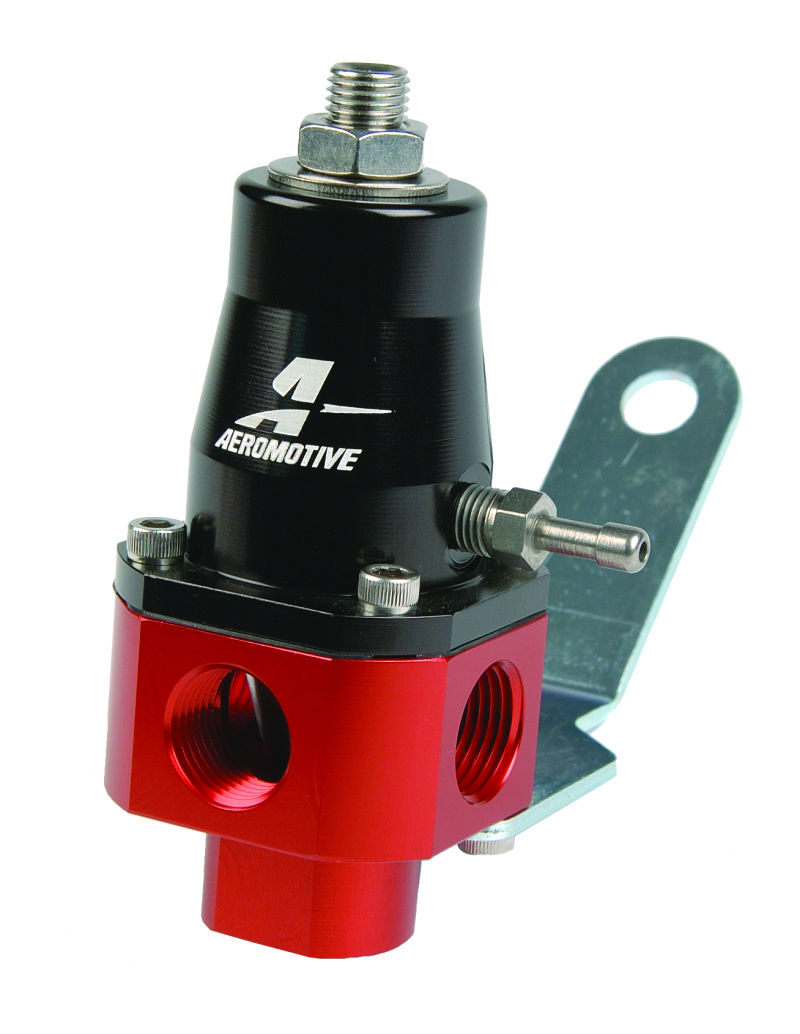

Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT

1 / 8

Specifications

Brand: Aeromotive
Part #: 13301
UPC: 684980000214

Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT

Name: Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT
Brand: Aeromotive
SKU: aeromotive-aeromotive-universal-bypass-regulator-3-port-3-8in-npt-t14-4340021
Price: 243.23 USD
Availability: InStock

$243.23

In Stock

Universal bypass fuel pressure regulator for EFI or carbureted setups. Adjustable from 3-60 PSI with included springs.

Key Features

Adjustable base pressure from 3 to 60 PSI — includes standard and high-pressure springs.
Maintains steady fuel pressure for EFI or carbureted applications.
Works with fuel pumps rated from 100 to 250 GPH.
Boost reference capability on a 1:1 ratio.
All ports are 3/8 inch NPT for easy plumbing.
Bypass design offers dynamic fuel pressure control.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Product Details

A dual purpose, universal regulator for EFI or Carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive bypass regulator provides. Capable of regulating any fuel pump between 100 and 250 GPH. Fuel pressure rises on a 1:1 ratio when referencing boost. All ports are 3/8' NPT, with one inlet and three outlets on the main body and one return port on the bottom. Bypass design provides the ultimate, dynamic fuel pressure control.?Note: Requires a return line to be installed from the bottom of the regulator to the top of the tank.A dual purpose, universal regulator for EFI or Carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive bypass regulator provides. Capable of regulating any fuel pump between 100 and 250 GPH. Fuel pressure rises on a 1:1 ratio when referencing boost. All ports are 3/8' NPT, with one inlet and three outlets on the main body and one return port on the bottom. Bypass design provides the ultimate, dynamic fuel pressure control. Note: Requires a return line to be installed from the bottom of the regulator to the top of the tank.
