How does this recovery point help with angled recoveries?

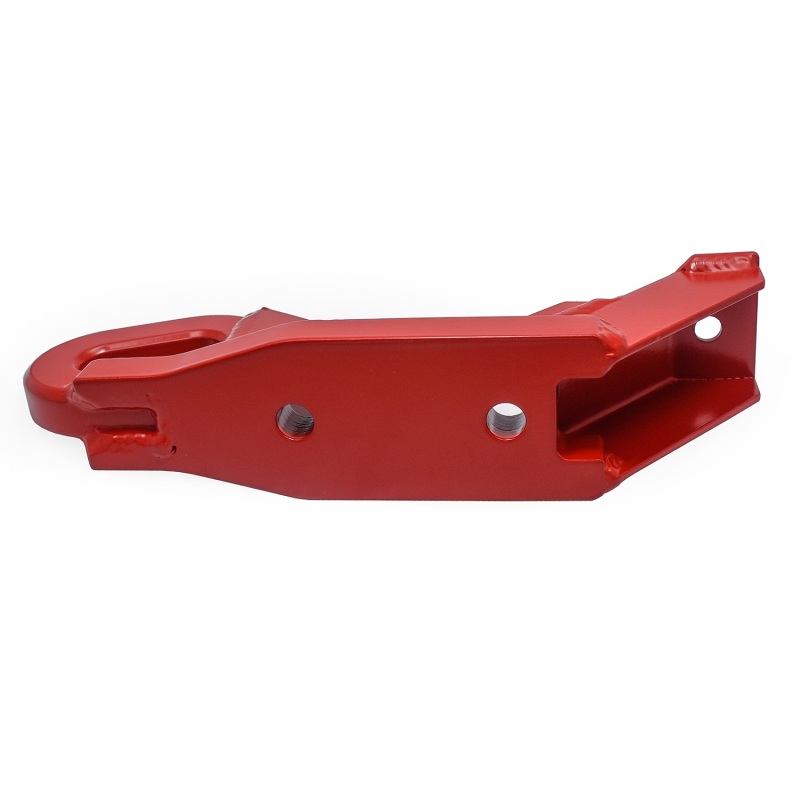

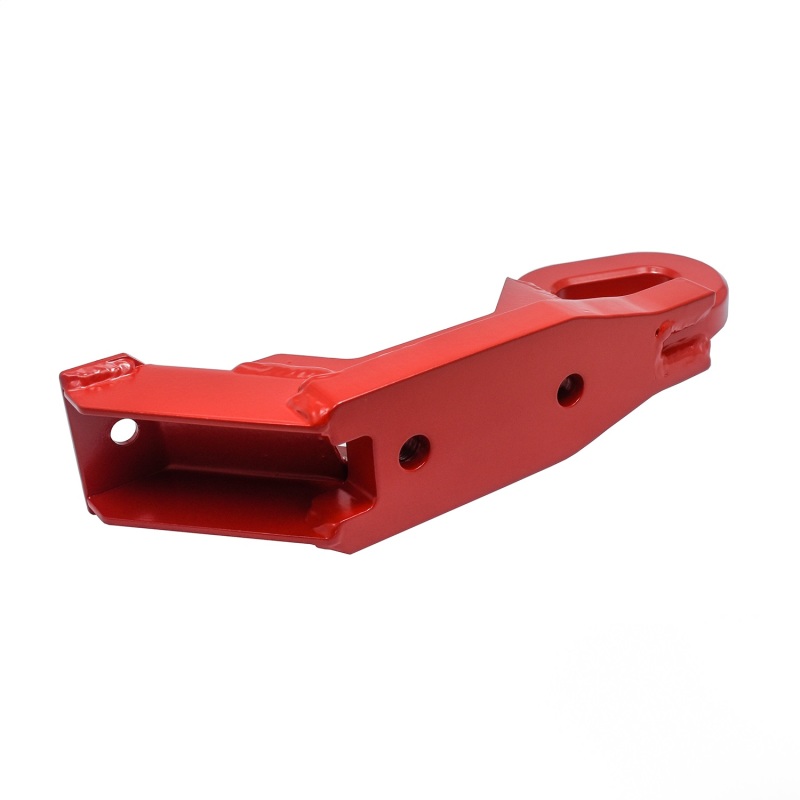

The recovery point has a long slot that allows the shackle pin to take the load from the strap. This distributes the force evenly through the shackle, preventing side loads on the pin during angled pulls.

Can I use this with my ARB Under Vehicle Protection?

Yes, this recovery point is designed to fit in conjunction with ARB Under Vehicle Protection. It also works with the original equipment stone guard.

What size shackle and strap are recommended?

The recovery point is designed to accept a 9500lb bow shackle, allowing a 17600lb strap to be attached via the shackle pin.

1 / 6

ARB

ARB 2019+ Ford Ranger Recovery Point

Name: ARB 2019+ Ford Ranger Recovery Point
Brand: ARB
Price: 234.00 USD
Availability: InStock

$234.00

ARB recovery point for 2019+ Ford Ranger. Mounts left or right, works with factory stone guard or ARB UVP.

Key Features

Mounts to left or right side of the chassis — offers flexible installation.
Works with factory stone guard or ARB Under Vehicle Protection — maintains existing underbody protection.
Long slot accepts 9500lb bow shackle for strap attachment — allows for secure connection.
Distributes recovery force evenly to prevent side loads on the shackle pin — improves safety during angled recoveries.

Fits this vehicle

Ford Ranger 2019-2023

Need Help?

631-982-0042

Fast Shipping

Nationwide delivery

Secure Checkout

Safe & protected

Since 1957

Family-owned

Product Details

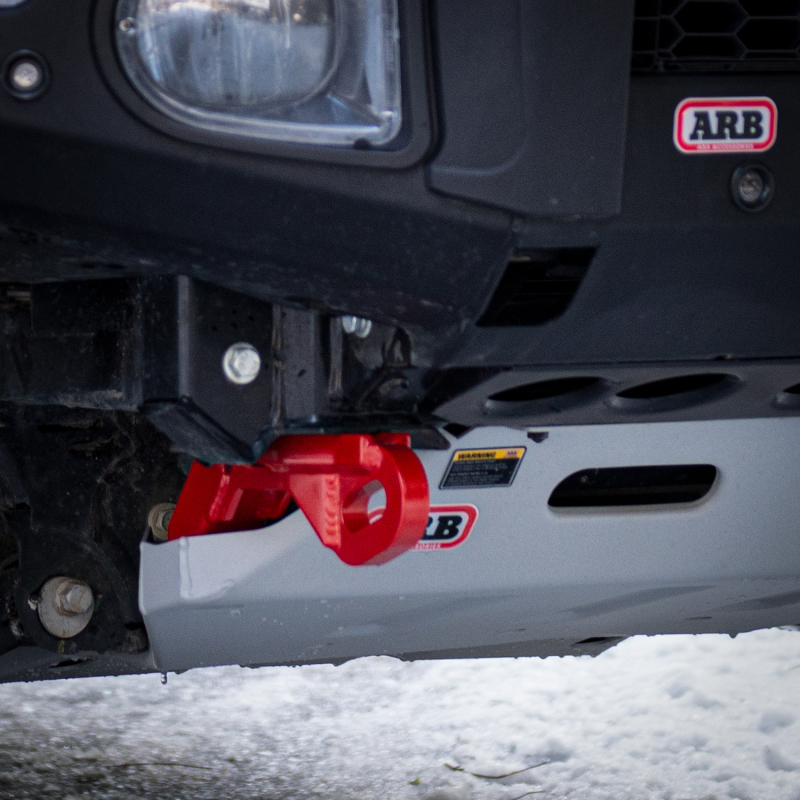

ARB has developed a recovery point that can be fitted to either the left-hand or right-hand side of the Ford Ranger chassis. The recovery points have been designed to fit with the original equipment stone guard, or in conjunction with ARB Under Vehicle Protection. To ensure there are no inappropriate forces exerted on the shackle during an angled recovery, the Recovery Point has a long slot that allows the recommended 9500lb bow shackle to be fed through and the 17600lb strap attached via the pin instead of the bow. This distributes the recovery force evenly through the shackle to avoid side loads on the pin.
