What specific data channels can this tachometer record?

This tachometer can record engine RPM, driveshaft RPM, lateral G-force, longitudinal G-force, vertical G-force, air/fuel ratio (with optional wideband), and one user-selected pressure channel (like fuel, oil, or brake pressure).

How do I analyze the recorded data?

You can playback recorded data directly on the tachometer for up to 60 seconds per run. For more detailed analysis, you can download the high-resolution (100 Hz) data to your PC using the included DataPro software.

What ignition systems is this tachometer compatible with?

It is compatible with 0.5 to 6 pulse ignition signals and supports 1-12 cylinder engines. This includes points, electronic, and most 12V high-performance racing ignitions.

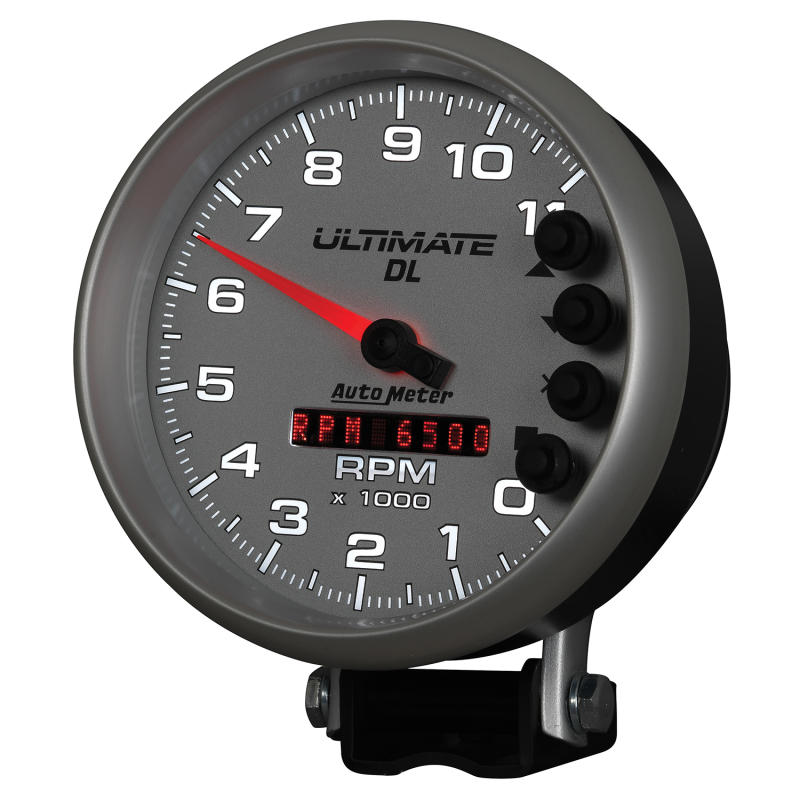

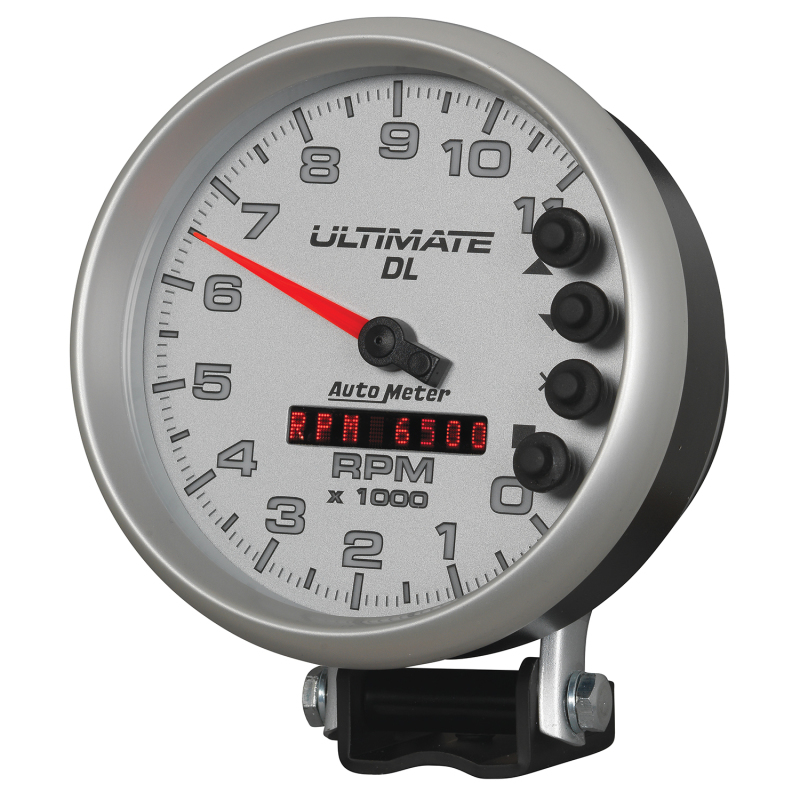

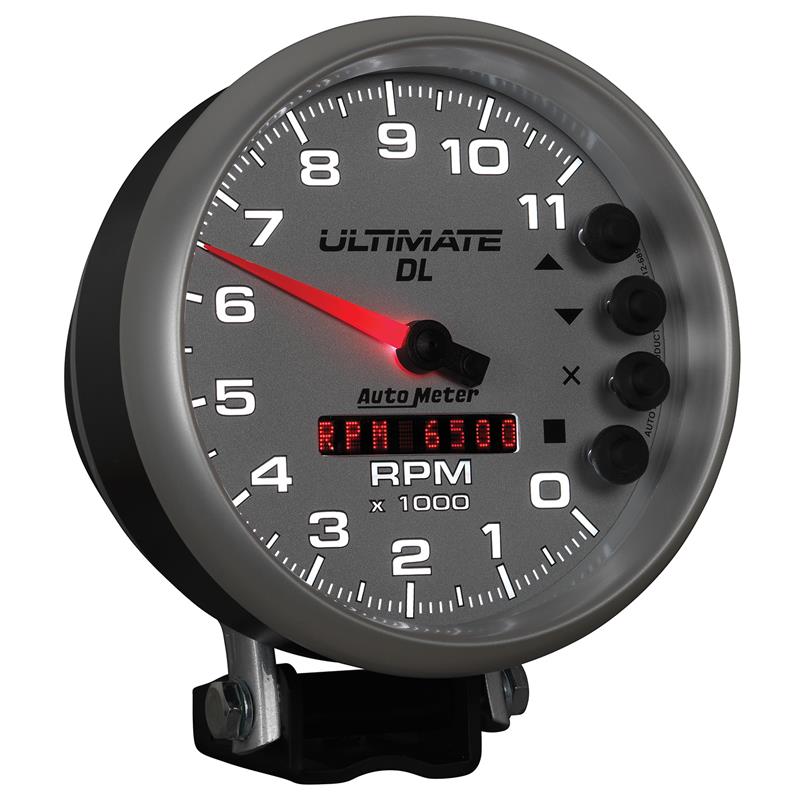

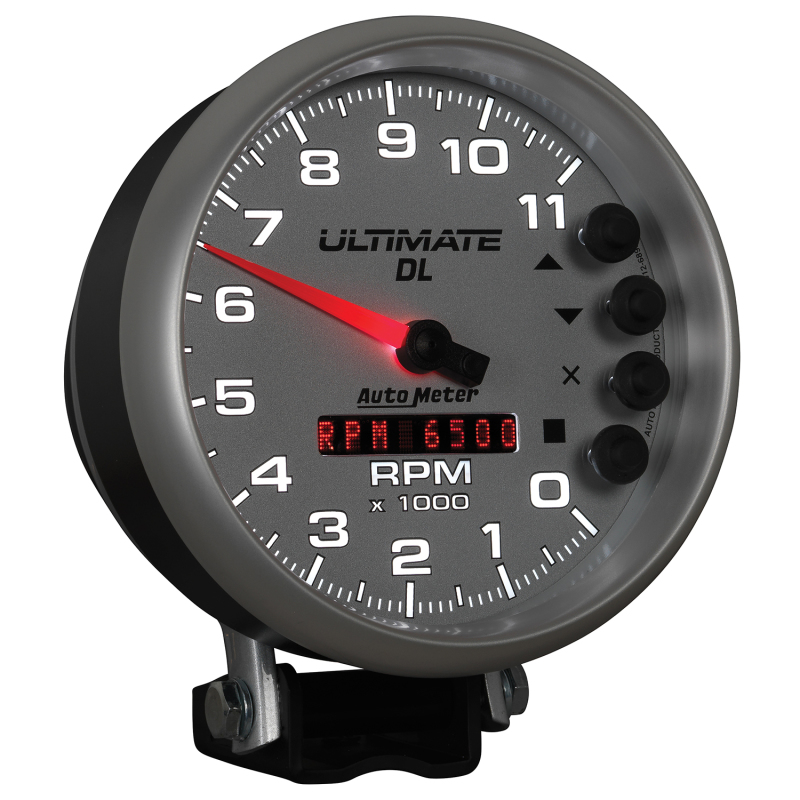

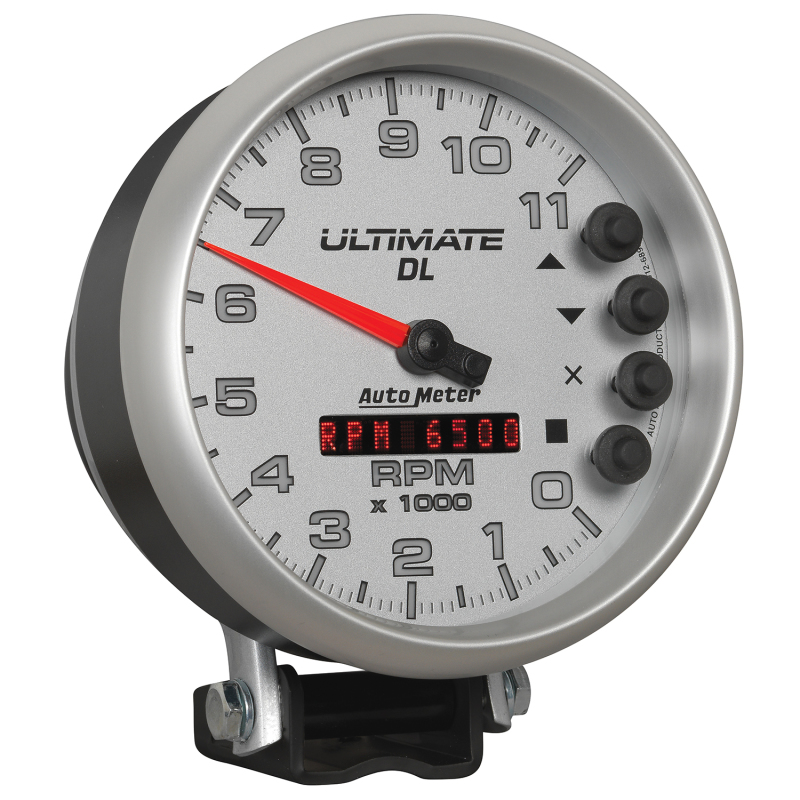

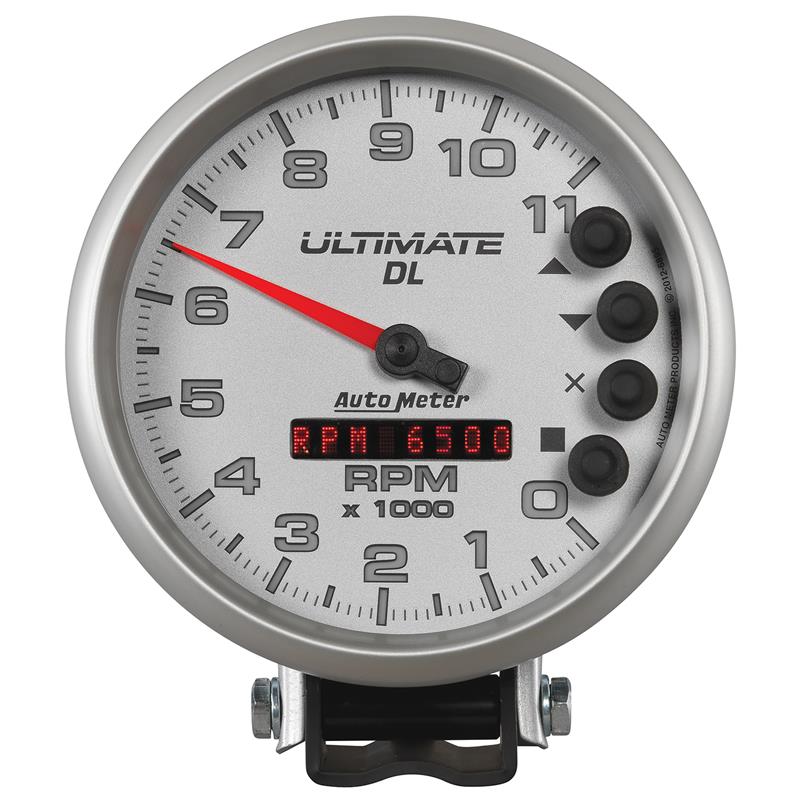

Autometer 5 inch Ultimate DL Playback Tachometer 11000 RPM - Silver

1 / 12

Specifications

Brand: AutoMeter
Part #: 6895
UPC: 46074068959

Autometer 5 inch Ultimate DL Playback Tachometer 11000 RPM - Silver

Name: Autometer 5 inch Ultimate DL Playback Tachometer 11000 RPM - Silver
Brand: AutoMeter
Price: 942.21 USD
Availability: InStock

$942.21

AutoMeter 5" Ultimate DL Playback Tachometer 11000 RPM - Silver. Records engine RPM, G-forces, and more for analysis.

Key Features

This tachometer records engine and driveshaft RPM to analyze wheelspin, clutch slip, converter lock-up, and gear changes.
It can record and playback up to 4 runs, each 60 seconds long, capturing engine RPM, G-forces, air/fuel ratio, and a user-selected pressure channel.
The 0-11,000 RPM sweep time is a rapid 333 milliseconds, allowing it to track even the fastest-revving engines.
It includes 4-stage shift light control and an Automatic Recording Memory Start (ARMS) system for driver convenience.
Data can be downloaded to a PC via USB for advanced analysis using the included DataPro software.
Compatible with 0.5 to 6 pulse ignition signals for 1-12 cylinder engines, supporting points, electronic, and most 12V high-performance racing ignitions.

This tachometer is designed for a wide range of applications, supporting 1-12 cylinder engines with various ignition types.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Product Details

When you're pushing your drag car to the limit, you need to know exactly what's happening under the hood. This AutoMeter Ultimate DL Playback Tachometer gives you the critical data you need to protect your engine, fine-tune your clutch and converter strategy, nail your shift points, and improve launch consistency. It's built around AutoMeter's responsive, competition-grade movements, capable of tracking the fastest engines with a 0-11,000 RPM sweep in just 333 milliseconds. This tachometer is 30% lighter than previous designs, making it a great choice for serious racers.

The Ultimate DL goes beyond basic RPM tracking by adding seven channels of performance data. You can record and playback up to four runs, each lasting 60 seconds, capturing engine and driveshaft RPM, lateral, longitudinal, and vertical G-forces, air/fuel ratio, and a pressure channel of your choice. You can even download high-resolution (100 Hz) data to AutoMeter's easy-to-use DataPro software for more in-depth analysis. The tachometer also features standard 4-stage shift light control and an improved Automatic Recording Memory Start (ARMS) system for worry-free operation. Its latest LED technology offers superior visibility, shock and vibration resistance, and reduced power consumption, while expanded cylinder selection means it supports more applications than ever before.

This tachometer is compatible with 0.5 to 6 pulse ignition signals, supporting 1-12 cylinder engines with points, electronic, and most 12V high-performance racing ignitions. It's also 12 and 16-volt compatible, making it well-suited for nearly every street or race car electrical system. You can expand its capabilities by adding an optional wideband channel to record air/fuel ratio or a pressure channel for fuel, oil, or brake pressure. The included DataPro software allows you to compare current runs to your best runs, showing you exactly what happened and where. This is a well-built unit designed for serious performance analysis.
