What is the cooling capacity of this transmission cooler?

This BD Diesel Xtrude transmission cooler offers 22% more cooling capacity than other designs. It's rated for 33,930 BTU/HR and can handle transmissions over 30,000 GVW.

Does this transmission cooler come with a fan?

Yes, this cooler assembly includes an 80-watt, 10-inch electric fan that moves 800 CFM of air to help with cooling, especially at low speeds or when stopped.

What kind of warranty does this cooler have?

The BD Diesel Xtrude Transmission Cooler comes with a 12-month or 12,000-mile warranty, whichever comes first.

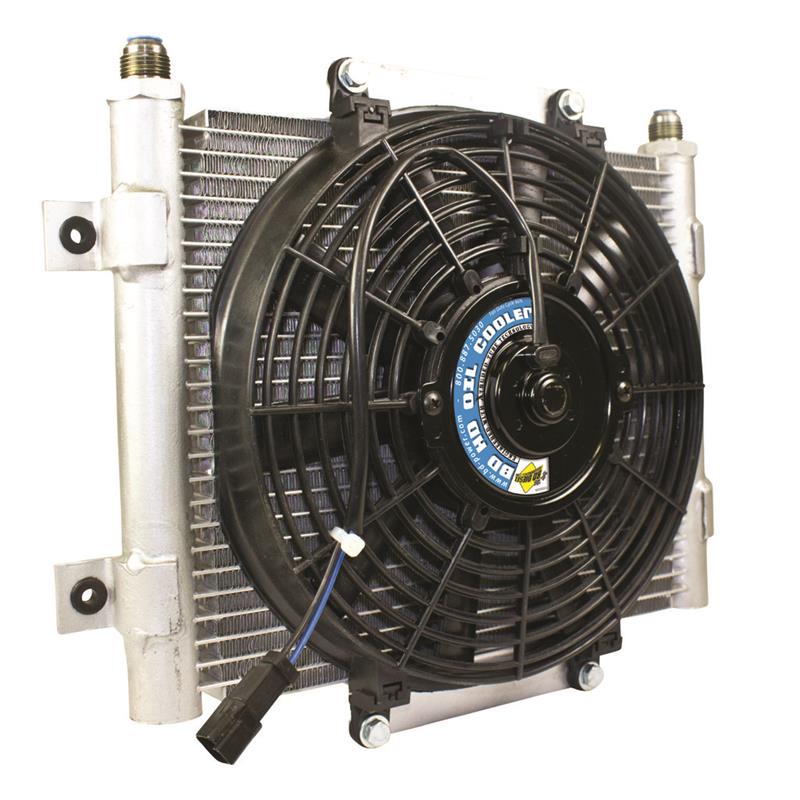

BD Diesel Xtrude Trans Cooler w/Fan 5.5in

1 / 2

Specifications

Brand: BD Diesel
Part #: 1300611
UPC: 019025016750

BD Diesel Xtrude Trans Cooler w/Fan 5.5in

Name: BD Diesel Xtrude Trans Cooler w/Fan 5.5in
Brand: BD Diesel
Price: 359.82 USD
Availability: InStock

$359.82

BD Diesel Xtrude Transmission Cooler w/ Fan. Offers 22% more cooling capacity for your transmission.

Key Features

Fits various vehicles with its universal design and -10 JIC male connections.
Offers 22% more cooling capacity compared to other designs.
Features a large surface area for efficient heat transfer to external airflow.
Furnace-brazed rails are tested to withstand up to 300psi of pressure.
Turbulent oil flow design promotes more complete cooling of transmission fluid.
Large 5/8-inch ports help prevent inlet and outlet restriction.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Product Details

BD Diesel is known for making tough parts for trucks that work hard, and their Xtrude Transmission Cooler with Fan is no exception. If you're looking to keep your transmission running cooler, especially under heavy loads or during demanding use, this cooler is a solid option. It's built with extruded passages that create a large surface area, which is key for transferring heat away from your transmission fluid to the outside air.

This cooler is designed to improve cooling significantly, boasting 22% more cooling capacity than other designs. It features furnace-brazed rails that have been tested to hold up to 300psi, and a turbulent oil flow design that helps ensure your fluid gets cooled more completely. The large 5/8-inch ports are there to prevent any restriction in the oil flow, and the whole assembly is rated for over 30,000 GVW. It also comes with a powerful 10-inch, 800 CFM electric fan to help pull air through the cooler, especially when the vehicle isn't moving.

This cooler assembly is designed as a direct fit and includes the fan. It's a well-built piece that can make a real difference in transmission temperatures, helping to extend the life of your transmission components.
