What does a pinion shim do?

A pinion shim is used to adjust the angle of your rear axle's pinion gear. When this angle is off, often due to suspension modifications like lifting a vehicle, it can cause driveline vibrations. The shim helps to bring the pinion angle back into alignment with the driveshaft, reducing or eliminating these vibrations.

What is included in this kit?

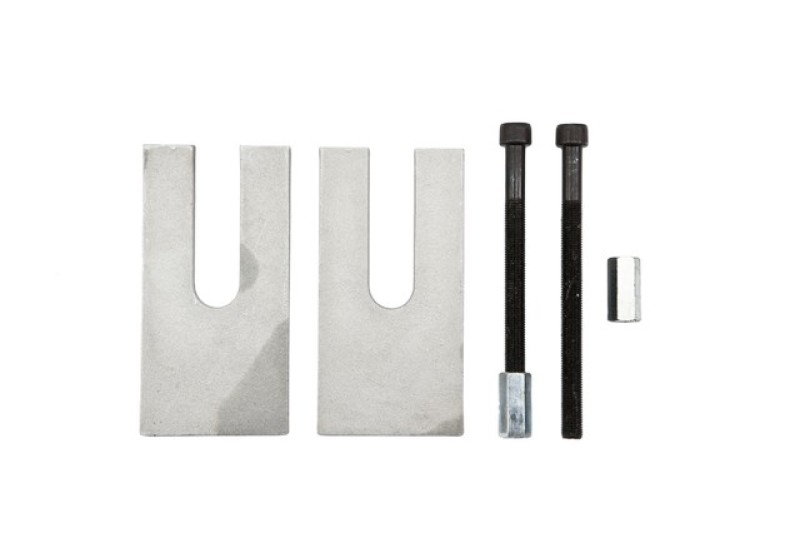

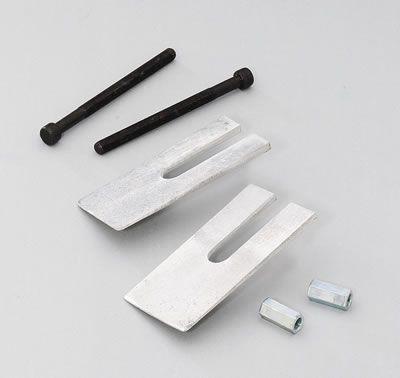

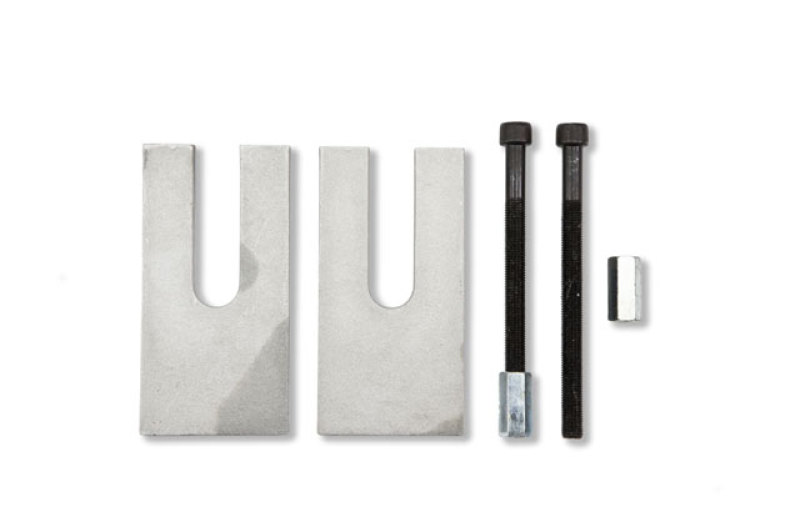

This kit includes two 2-degree pinion shims, two new spring centering bolts, and two nuts. This hardware is necessary for properly installing the shims between your leaf spring and axle.

Will these shims fit my leaf springs?

These shims are designed to fit leaf spring packs that are either 2.5 inches or 3 inches wide. They also accommodate applications that use either a single or a double center pin design.

Belltech 2 Degree Pinion Shim Set 4975 | Drivetrain

Name: Belltech PINION SHIM SET 2 DEGREE (PAIR)
Brand: Belltech
Price: 36.74 USD
Availability: InStock

Belltech PINION SHIM SET 2 DEGREE (PAIR)

$36.74

Belltech PINION SHIM SET 2 DEGREE (PAIR). Corrects driveline angles to remove unwanted vibrations.

Key Features

Belltech pinion shims help correct driveline angles to remove unwanted vibrations.
Constructed from high-strength ductile cast iron for durability.
Includes 2 shims, 2 spring centering bolts, and 2 nuts.
Designed for leaf spring packs that are 2.5 inches or 3 inches wide.
This set provides a 2-degree angle correction.
Suitable for single and double center pin applications.

This is a universal pinion shim set designed for leaf spring packs that are 2.5 inches or 3 inches wide, and it fits applications with single or double center pin designs.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Product Details

If you've recently lifted your truck or made other suspension changes, you might notice some unwanted vibrations coming from the driveline. That's often because the angle of your rear axle's pinion has changed. This Belltech pinion shim set is designed to help you correct that angle, bringing it back in line with your driveshaft to smooth things out.

These shims are made from strong ductile cast iron, so they'll hold up under load. They're designed to fit between your leaf spring and your axle, and they come with new spring centering bolts and nuts to make installation straightforward. This particular set gives you a 2-degree correction, which is a common need for many lifted vehicles. They're made to fit leaf spring packs that are either 2.5 or 3 inches wide, and they work with applications that have one or two center pin bolts.

This kit includes two shims and the necessary hardware to get them installed. It's a pretty common fix for driveline vibrations after a lift, and it's a solid option for getting your truck running smoothly again.
