What is position-sensitive damping?

Position-sensitive damping means the shock absorber's valving changes based on how far the suspension is compressed. The Bilstein B8 8112 uses a triple piston design with multiple zones to provide a softer response for everyday driving and firmer control during larger suspension movements.

How much can I adjust the ride height with this coilover?

The threaded spring seat on this coilover module allows for ride height adjustability. You can typically achieve a lift range of 0 to 3.8 inches, depending on your specific vehicle application and how the suspension is set up.

What comes included with this Bilstein B8 8112 module?

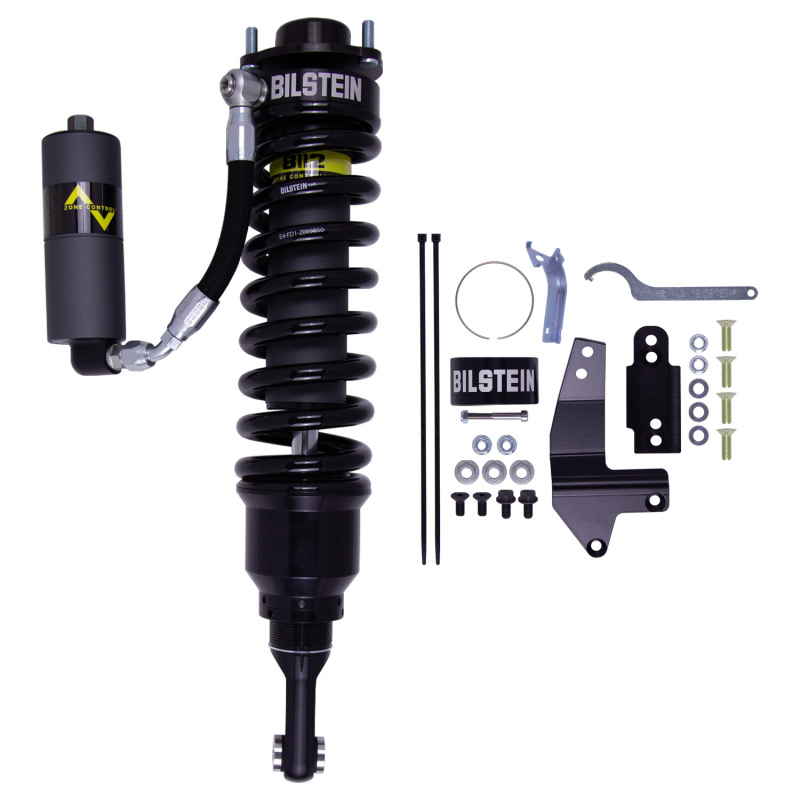

This is a front left corner module that includes the coilover assembly with a threaded spring seat, a remote reservoir, and a bolt-on anodized reservoir chassis mount. It is designed as a direct fit for your vehicle.

Bilstein B8 8112 Series 10-23 Toyota 4Runner Zone Control Monotube Front Left Corner Module

1 / 6

Specifications

Brand: Bilstein
Part #: 41-324172
UPC: 651860896700

Bilstein B8 8112 Series 10-23 Toyota 4Runner Zone Control Monotube Front Left Corner Module

Name: Bilstein B8 8112 Series 10-23 Toyota 4Runner Zone Control Monotube Front Left Corner Module
Brand: Bilstein
Price: 1211.66 USD
Availability: InStock

$1211.66

Only 5 left in stock

Fits 2010-2024 Toyota 4Runner. Bilstein B8 8112 Series front left coilover module with position-sensitive damping for improved control.

Key Features

Fits 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser.
ZoneControl CR position-sensitive damping uses a triple piston design with 3 compression and 2 rebound zones.
Adjustable ride height with a threaded spring seat, offering 0-3.8 inches of lift.
Features a 60mm body and a remote reservoir for increased oil capacity and cooling.

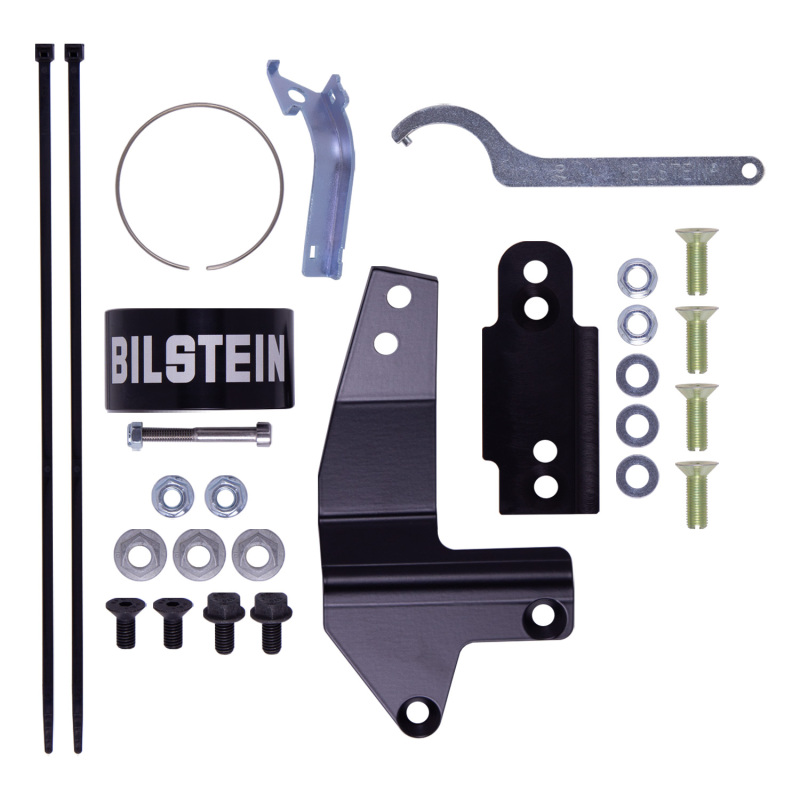

Includes a bolt-on anodized reservoir chassis mount for easier installation.
Designed as a direct fit for light trucks and SUVs.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Fits these vehicles

Toyota 4Runner 2010-2024
Toyota FJ Cruiser 2010-2014

Product Details

The Bilstein B8 8112 ZoneControl CR coilover module uses a triple piston design with three stages of compression valving and two stages of rebound valving. This advanced setup allows for position-sensitive damping, meaning it adjusts its response based on how far the suspension is compressed. For your 2010-2024 Toyota 4Runner, this translates to a more comfortable ride during normal driving and significantly better control when you encounter larger impacts or uneven terrain.

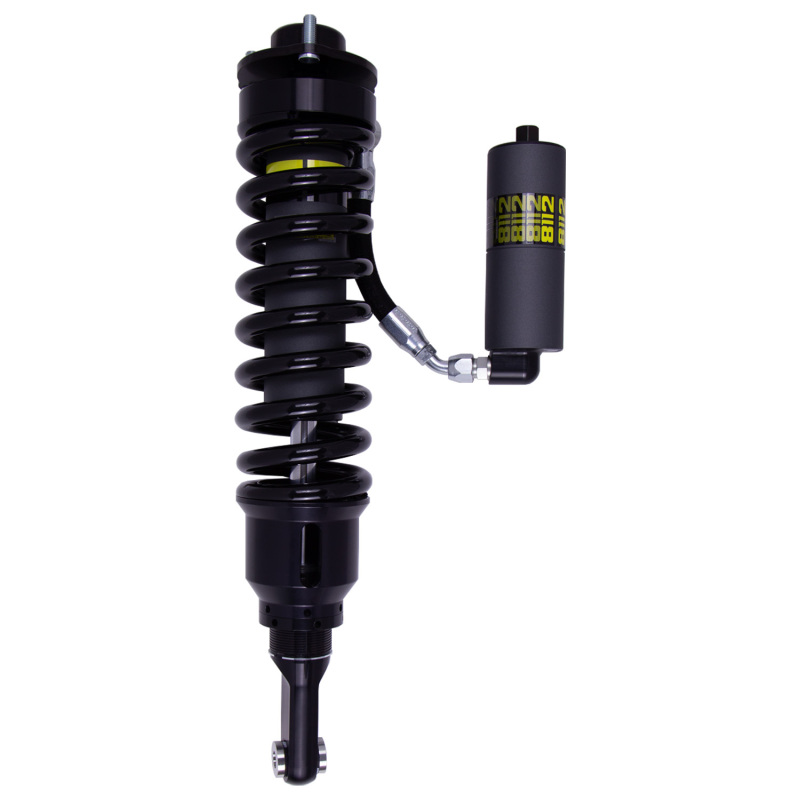

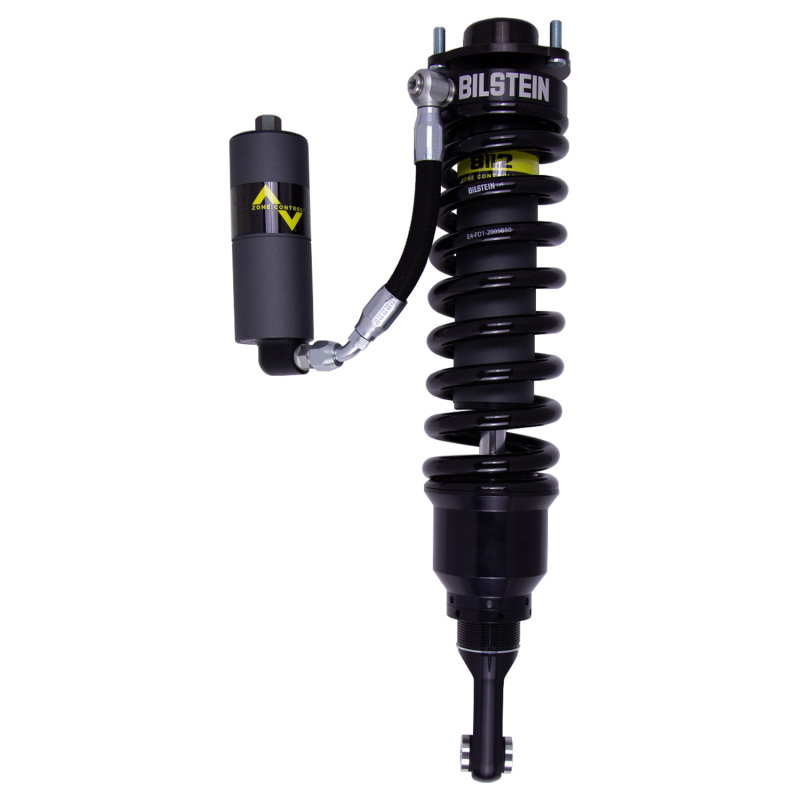

This front left corner module is built around a 60mm body and includes a remote reservoir, which helps manage heat for consistent performance, especially during demanding use. The threaded spring seat lets you adjust the ride height, giving you a range of 0 to 3.8 inches of lift depending on your specific application. It's designed as a direct fit, and the kit comes with a bolt-on anodized reservoir mount, making installation more straightforward.

This is a substantial upgrade for your 4Runner's suspension, offering a noticeable improvement in both daily comfort and off-road capability. You'll want to refer to the manufacturer's installation instructions for specific details on setting the ride height and mounting the reservoir.
