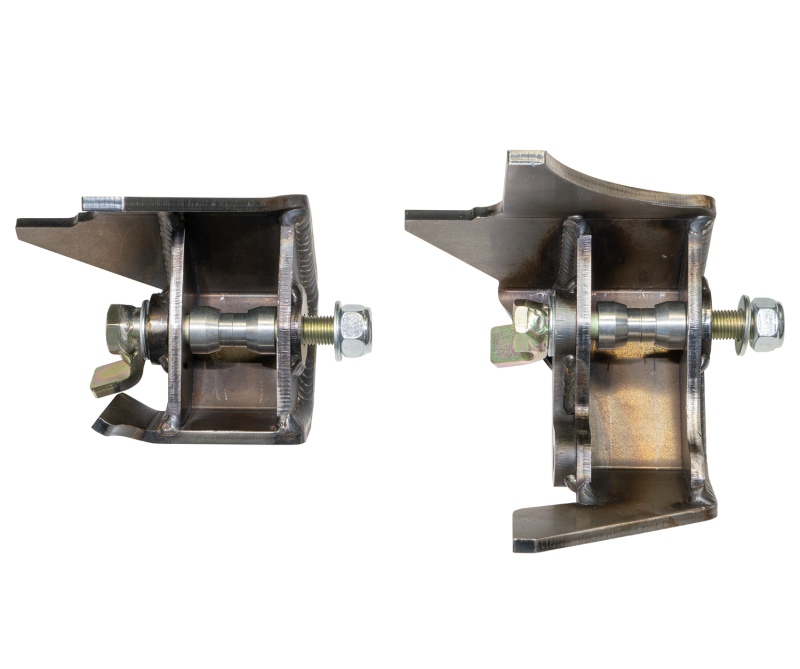

Carli 2017+ Ford F250/350 4x4 Weld-In Rear Shock Mount Pair

The 2017 and newer Ford Super Duty trucks feature a boxed steel frame, which is great for rigidity but means many bolt-on upgrades need a new approach. These weld-in rear shock mounts from Carli are designed specifically for that boxed frame, offering a robust solution to upgrade your rear suspension. They allow you to fit larger, 3.0-inch diameter shocks, which can significantly improve your ride quality both on and off-road.

Ford's factory rear shock mounts are a single-shear, pin-style design that can struggle with the forces from larger aftermarket shocks. Carli's solution replaces that weak point with a much stronger, weld-in mount. These are not intended for use with factory-style shocks or those with bushings; they are built to adapt off-road race shocks, like King or Fox, that use a 5/8-inch internal diameter uniball. The kit includes misalignment spacers to adapt these uniballs to the factory 14mm x 1.667-inch mounting dimension, giving you the flexibility to run serious suspension components.

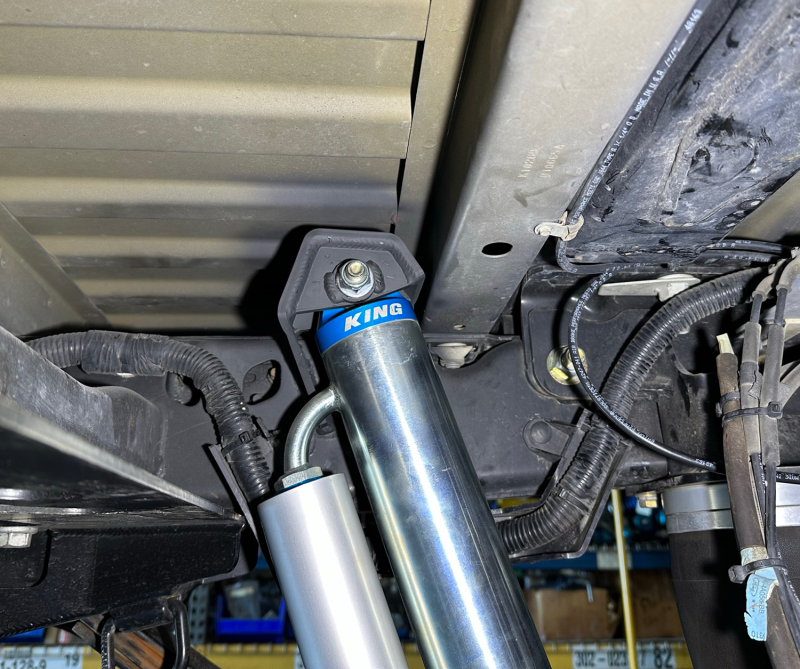

Installation requires welding, as these mounts are designed to be permanently integrated into the frame for maximum strength. While not required, these mounts would also be a great upgrade for the E-Venture model. Please note that these mounts will not work with the Pintop kit's rear remote reservoir shocks due to clearance issues with the hose fitting.
