What is the compressed thickness of this head gasket?

The compressed operating thickness of this Cometic head gasket is 0.045 inches. This measurement is important for maintaining the correct compression ratio in your engine.

Does this head gasket require any sealant?

No, this Multi-Layer Steel (MLS) head gasket does not require any additional sealants. The design and materials used are intended to create a complete seal on their own.

What is the benefit of the Viton coating on the outer layers?

The Viton coating on the outer layers provides excellent heat resistance, up to 482°F (250°C), and is designed to handle harsh sealing environments. It also helps the gasket seal effectively against different block materials like aluminum and cast iron.

Specifications

Brand: Cometic Gasket
Part #: C4231-045
UPC: 191070008048

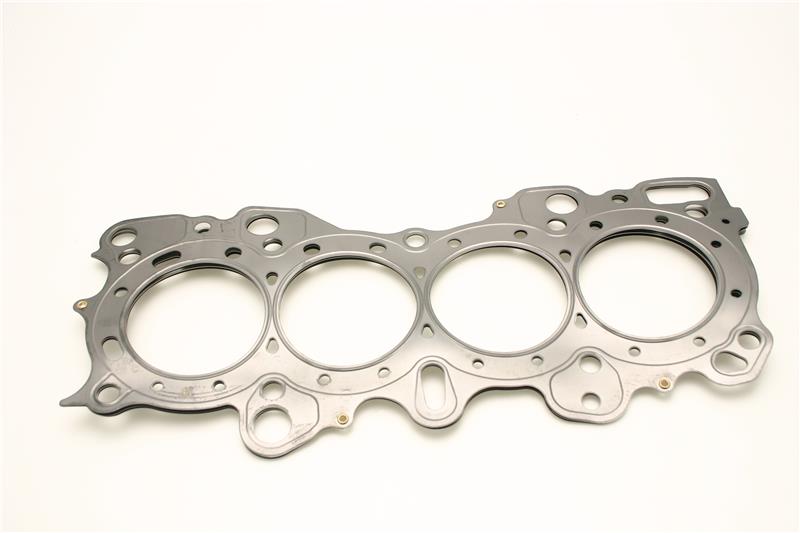

Cometic Honda CRX/Civic Integra -VTEC 81mm .045 inch MLS Head Gasket

Name: Cometic Honda CRX/Civic Integra -VTEC 81mm .045 inch MLS Head Gasket
Brand: Cometic Gasket
SKU: cometic-gasket-cometic-honda-crx-civic-integra-vtec-81mm-045-inch-mls-head-gaske-t14-6868
Price: 106.52 USD
Availability: BackOrder

$106.52

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

Fits 1994-2001 Acura Integra. Cometic MLS head gasket with Viton coating for a strong seal.

Key Features

Fits 1994-2001 Acura Integra, 1994-1997 Honda Civic del Sol, and 1999-2000 Honda Civic.
Multi-Layer Steel (MLS) construction offers increased strength and rebound resistance.
Outer layers are embossed and coated with Viton, a heat-resistant rubber material.
Viton coating can withstand temperatures up to 482°F (250°C).
Compressed operating thickness is 0.045 inches.
Features an 81mm bore size.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Will it fit your car?

Fits these vehicles

Acura Integra 1994-2001
Honda Civic 1999-2000
Honda Civic del Sol 1994-1997

About this part

Product Details

Cometic Gasket is known for making well-built gaskets that hold up in demanding engine applications. This Multi-Layer Steel (MLS) head gasket is built for Honda B-series VTEC engines, specifically those found in the 1994-2001 Acura Integra, 1994-1997 Civic del Sol, and 1999-2000 Civic. It's designed to provide a reliable seal between your cylinder head and engine block, which is crucial for keeping combustion pressures contained and preventing coolant and oil from mixing.

This gasket is constructed from multiple layers of stainless steel for increased strength and resistance to corrosion. The outer layers are coated with Viton, a heat-resistant rubber material that can handle temperatures up to 482°F (250°C) and works well with both aluminum and cast iron engine blocks. The compressed thickness is 0.045 inches, and it features an 81mm bore, making it suitable for engines with that specific bore size. Because it's an MLS gasket, it doesn't require any additional sealants, simplifying the installation process.
