What kind of distributor gear do I need for this camshaft?

This COMP Cams camshaft is optimized for use with a Melanized or Nitrided distributor gear. Using standard cast iron or steel gears without these surface treatments is not recommended and will void all warranties and return policies.

Will this camshaft fit my 1966 Chevrolet 396 Big Block?

This specific camshaft part number (11-773-8) is not compatible with 1965-66 396 Big Block models that have an oiling groove in the rear journal. If your engine has this feature, you will need to contact COMP Cams directly for an alternative camshaft option.

What other components are recommended for this camshaft?

For optimal performance, this camshaft is best suited for engines with a well-matched intake and exhaust system, a compression ratio of 11:1 or higher, and a torque converter with a stall speed of 3500 RPM or more.

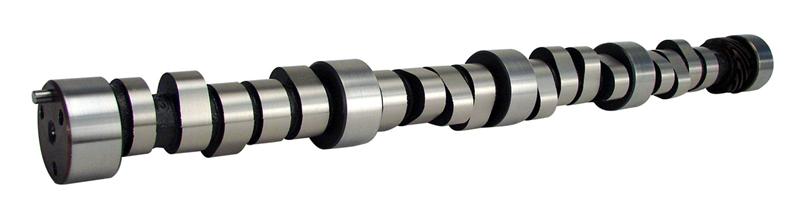

COMP Cams XR292 R-10 Solid Roller Camshaft 11-773-8

Name: COMP Cams Camshaft CB XR292 R-10
Brand: COMP Cams
Price: 610.12 USD
Availability: InStock

COMP Cams Camshaft CB XR292 R-10

$610.12

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

COMP Cams XR292 R-10 solid roller camshaft for Chevrolet Big Block engines. Optimized for Pro Street builds with high compression and performance exhaust.

Key Features

Fits Chevrolet Big Block 396-454 engines originally equipped with flat tappet camshafts.
Solid roller design for high-performance applications.
254/260 degrees duration at .050 inch lift.
.620 inch lift.
Optimized for Pro Street builds requiring high compression (11:1+) and a 3500+ RPM stall converter.
Requires a Melanized or Nitrided distributor gear; cast iron or steel gears are not compatible and will void warranty.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Will this fit your vehicle?

Product Details

This is the COMP Cams XR292 R-10 solid roller camshaft, part number 11-773-8, designed for Chevrolet Big Block engines like the 396, 427, and 454. It's a popular choice for Pro Street applications where significant performance gains are desired, fitting a wide range of vehicles including the Chevrolet Impala, Chevelle, and Corvette from the late 60s through the mid-70s, as well as later C-series trucks and SUVs originally equipped with flat tappet camshafts.

The XR292 R-10 is built for serious performance, featuring a 254/260 degree duration at .050 inch lift and a .620 inch lift. To get the most out of this camshaft, you'll need a well-matched intake and exhaust system, at least 11:1 compression, and a torque converter with a stall speed of 3500 RPM or higher. It's important to note that this camshaft is optimized for use with a Melanized or Nitrided distributor gear. Using cast iron or steel gears without these surface treatments can void your warranty and cause premature wear.

When installing this camshaft, be aware that some early 1965-66 396 Big Block models have an oiling groove in the rear journal that this specific camshaft does not accommodate. If your engine falls into that specific early range and requires that groove, you'll need to contact COMP Cams directly for a different option. This camshaft is not CARB approved and cannot be shipped to California.
