Specifications
- Brand
- COMP Cams
- Part #
- 4775-1
- UPC
- 036584391432
COMP Cams ID Spring Seat 1.625 X 630 X
$11.95
Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

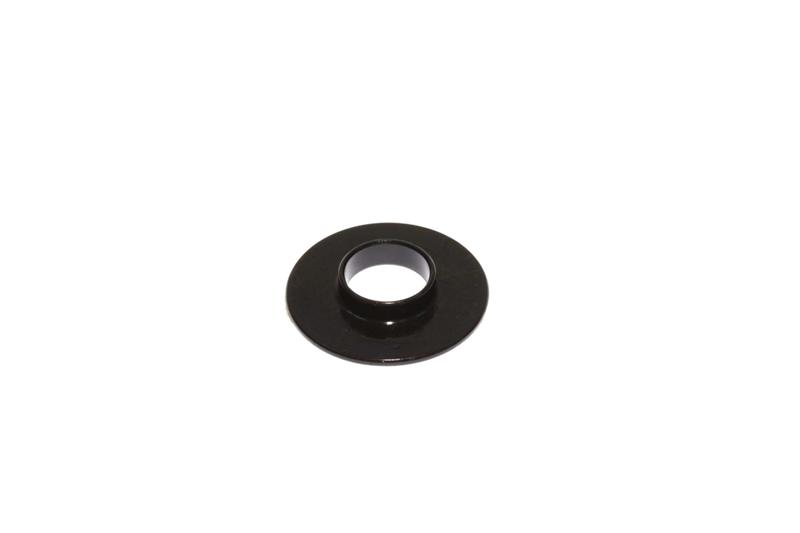

COMP Cams ID Spring Seat 4775-1. Hardened steel construction with an inboard locating shoulder to center and hold the spring.
Key Features
- Fits COMP Cams dual valve springs 996, 998, 26099, and 991.
- Made from hardened steel for durability.
- Features an inboard locating shoulder to center and hold the spring.
- Has a 1.540" outer diameter and a .640" inner diameter.
- Protects the cylinder head and shim from extreme spring pressures.
⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more
Product Details
Made from hardened steel, this locator uses an inboard locating shoulder to center the seat and hold the spring in place. The old standard shims won't hold up to the extreme spring pressures and high RPM found in today's race engines. COMP Cams offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place.
This particular locator has a 1.540" outer diameter and a .640" inner diameter, making it a good match for COMP Cams dual valve springs like the 996, 998, 26099, and 991 models. Previously, this type of part was only available in a cup form with the retaining portion on the outside, which required significant machining of the cylinder head. COMP now offers an ID locator with the locating shoulder on the inside, along with the spring cup, simplifying installation.
Specifications
- Brand
- COMP Cams
- Manufacturer Part #
- 4775-1
- UPC
- 036584391432
