Specifications
- Brand
- COMP Cams
- Part #
- 4776-16
- UPC
- 036584393085

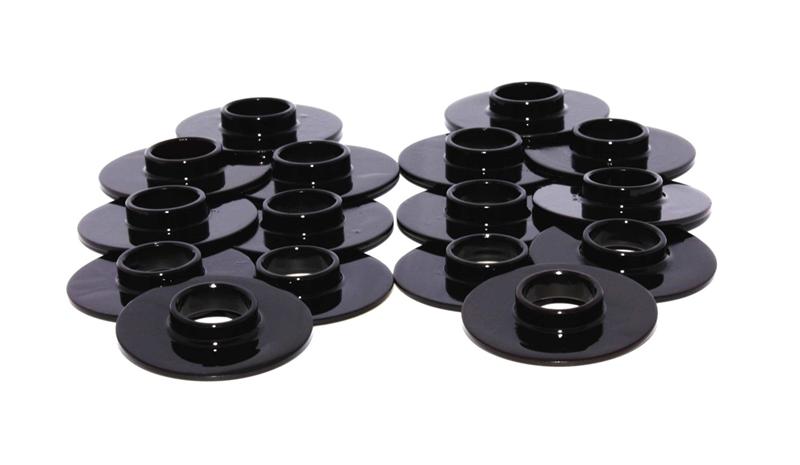

COMP Cams ID Spring Seats 1.55 X 570 X
$73.51
Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.
COMP Cams ID Spring Seats (16 pc). Hardened steel with inboard locating shoulder. Part# 4776-16. Fast shipping.
Key Features
- You receive a set of 16 ID Spring Seats.
- Made from hardened steel alloy for durability.
- Features an inboard locating shoulder to center the seat and hold the spring.
- Protects the cylinder head and shim from extreme spring pressures.
- Designed for high RPM and extreme spring pressure applications.
- Has a 1.550 inch outer diameter and a .570 inch inner diameter.
⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more
Product Details
You're getting a set of 16 ID Spring Seats from COMP Cams. These are designed to handle the high spring pressures and RPMs found in performance and race engines, where standard shims might not hold up. They act as a hardened steel alloy seat that protects both the cylinder head and the shim underneath, while also keeping the valve spring properly located and held in place.
Unlike older designs that required significant machining to fit, these feature an inboard locating shoulder. This means the locating part is on the inside, making installation simpler. The hardened steel construction helps ensure durability under demanding conditions. This particular set has a 1.550 inch outer diameter and a .570 inch inner diameter, and they are .060 inches thick. They work well with several COMP Cams spring numbers, including the 928, 944, 26089, and 955.
Specifications
- Brand
- COMP Cams
- Manufacturer Part #
- 4776-16
- UPC
- 036584393085
