What material are these spring locators made from?

These spring locators are made from a hardened steel alloy. This material is chosen for its strength and ability to withstand the pressures found in high-performance engines.

How do these locators differ from traditional shims?

Unlike standard shims, these locators provide a hardened steel seat that protects the head and shim. They also actively locate and hold the spring in place, which is crucial for high RPM and extreme spring pressure applications.

What are the key dimensions of these spring locators?

Each locator has an outer diameter of 1.565 inches, an inner diameter of 0.535 inches, and a thickness of 0.100 inches. This set comes with 16 locators.

COMP Cams Valve Spring Seats 4713-16 | Hardened Steel

Name: COMP Cams Spring Seats Cnc .100X.535X1.
Brand: COMP Cams
SKU: comp-cams-comp-cams-spring-seats-cnc-100x-535x1-t14-4392327
Price: 79.95 USD
Availability: BackOrder

COMP Cams Spring Seats Cnc .100X.535X1.

$79.95

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

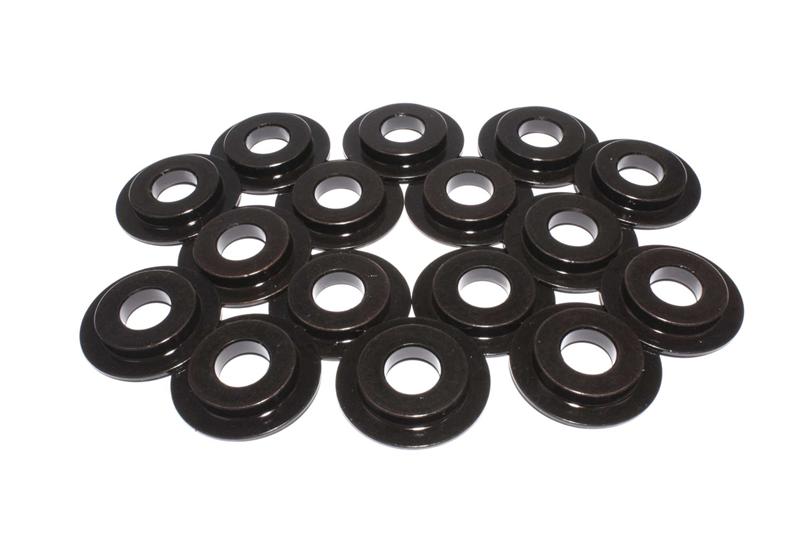

COMP Cams ID Spring Locator Set of 16. Hardened steel construction protects your head and shim while holding the spring in place.

Key Features

Set includes 16 ID spring locators.
Made from hardened steel alloy for durability.
Protects the cylinder head and shim from spring pressure.
Features an inboard locating shoulder to center and hold the spring.
Outer diameter is 1.565 inches.
Inner diameter is 0.535 inches.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Product Details

COMP Cams is well-known for making performance valvetrain components. For engines that see high RPM and extreme spring pressures, standard shims just won't cut it. These valve spring locators from COMP Cams offer a straightforward yet effective fix. They act as a thin, hardened steel alloy seat that protects both the cylinder head and the shim underneath it, while also keeping the spring properly centered and seated.

Unlike older designs that required significant machining to fit, these locators feature an inboard locating shoulder. This means the locating shoulder is on the inside, making installation simpler. The hardened steel construction is built to withstand the demands of performance engines, ensuring the spring stays put even under high stress.

This set includes 16 locators, each with a 1.565-inch outer diameter and a 0.535-inch inner diameter, and a thickness of 0.100 inches. They are designed to be a direct fit for many performance applications where spring control is critical.
