What is the benefit of a beehive valve spring design?

Beehive valve springs have a tapered shape that reduces the mass of the spring and retainer. This lower mass allows the valvetrain to operate more smoothly at higher engine speeds, helping to prevent valve float and improve overall engine response.

What is the maximum valve lift these springs can handle?

These COMP Cams valve springs are designed to accommodate a maximum valve lift of .650 inches. This specification is important to consider when choosing camshafts to ensure compatibility and prevent coil bind.

Does this kit include everything needed to replace the valve springs on a V8 engine?

Yes, this kit includes 32 individual valve springs, which is the correct quantity for a complete V8 engine application. You will need to ensure you have the necessary tools and any other required components for the valve spring installation process.

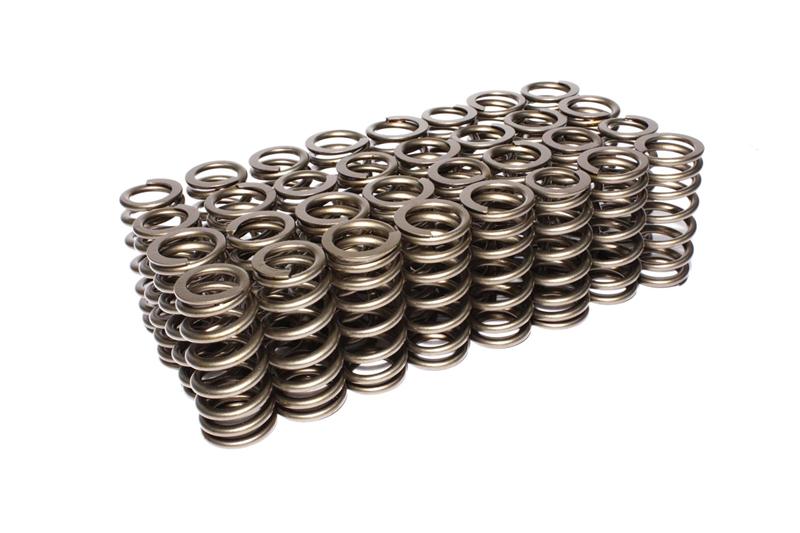

COMP Cams Valve Springs 26125-32 for Ford 4.6L/5.4L V8

Name: COMP Cams Valve Springs H/L Ford 4.6L/5.4L 2V/3V V8
Brand: COMP Cams
Price: 717.07 USD
Availability: InStock

COMP Cams Valve Springs H/L Ford 4.6L/5.4L 2V/3V V8

$717.07

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

COMP Cams Beehive Valve Springs for Ford 4.6L/5.4L 2V/3V V8 engines. Designed for up to .650" lift.

Key Features

Fits a wide range of Ford 4.6L and 5.4L 2-valve and 3-valve V8 engines.
Designed for a maximum valve lift of .650 inches.
Beehive spring design reduces valvetrain mass for improved high-RPM performance.
Includes 32 individual valve springs for a complete V8 engine.
Features a 1.640 inch installed height.
Top outer diameter measures 1.013 inches, bottom outer diameter is 1.101 inches.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Will this fit your vehicle?

Product Details

If you're working on the top end of a Ford 4.6L or 5.4L Modular engine, specifically the 2-valve or 3-valve configurations, these COMP Cams Beehive Valve Springs are a solid choice. They are built to handle up to a .650 inch maximum valve lift, which is a notable increase over stock, making them suitable for street performance applications. This set includes 32 springs, enough for a complete V8 engine.

These springs feature a beehive design, meaning they taper down in diameter towards the top. This design helps reduce the mass of the retainer and spring, which in turn lowers the overall valvetrain weight. Less weight means the valvetrain can operate more reliably at higher RPMs, reducing the chance of valve float. The installed height is set at 1.640 inches, and the top OD is 1.013 inches, while the bottom OD is 1.101 inches. This specific sizing is crucial for proper fitment and function with the factory cylinder heads on a wide range of Ford vehicles.

This kit is designed to fit a broad spectrum of Ford vehicles, including popular models like the Mustang, F-150, Expedition, and Crown Victoria, across various model years. When rebuilding or upgrading your engine's valvetrain, using springs designed for the specific lift and RPM range you're targeting is key to achieving reliable performance. These COMP Cams springs offer a well-built solution for those looking to improve their engine's breathing capabilities.
