Does this radiator come with a new radiator cap?

This CSF radiator does not include a radiator cap. You will need to reuse your original radiator cap or purchase a new one separately to ensure proper system pressure.

What is CSF's B-Tube technology?

CSF's B-Tube technology uses a specially shaped tube that increases the heat transfer surface area by about 15% compared to standard oval tubes. This design allows for dual liquid laminar flow, enhancing the radiator's overall cooling efficiency.

Will this radiator fit with my aftermarket cold air intake?

This radiator is designed to accept all original attaching OEM components, including the fan shroud and AC condenser. Compatibility with aftermarket cold air intake systems can vary, so it's best to check the specific dimensions and mounting points of your intake.

2005-2014 Ford Mustang Radiator | CSF

Name: CSF 05-14 Ford Mustang Radiator
Brand: CSF
Price: 539.00 USD
Availability: InStock

CSF 05-14 Ford Mustang Radiator

$539.00

Only 5 left in stock

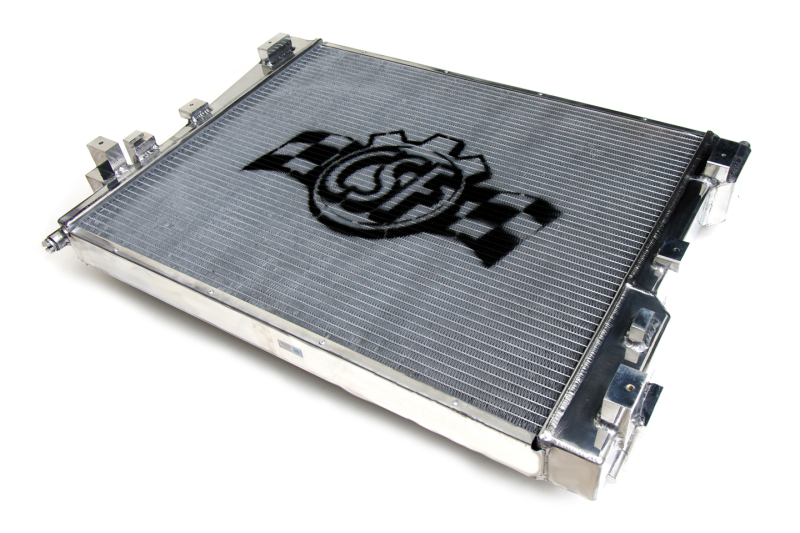

Fits 2005-2014 Ford Mustang. CSF's all-aluminum radiator uses B-Tube technology for improved heat transfer and cooling.

Key Features

Fits 2005-2014 Ford Mustang V6 and V8 models, both automatic and manual transmissions.
Features CSF's exclusive 2-row, 42mm core with B-Tube technology for approximately 15% increased heat transfer surface area.
Ultra-efficient, multi-louvered fins are precisely aligned to maximize airflow and heat rejection.
True 'drop-in fit' design requires no modifications and accepts all original attaching OEM components, including quick-connect hoses, AC condenser, and fan shroud.

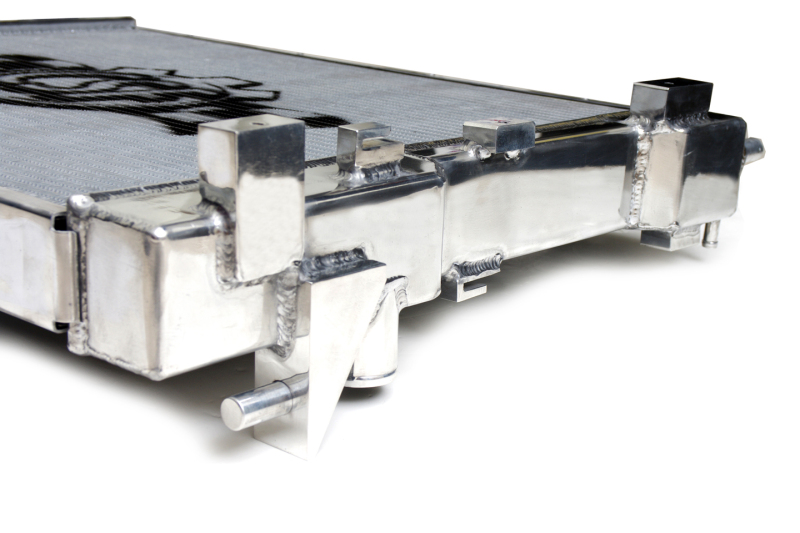

CNC machined brackets and fittings ensure superb fit and durability.
Includes a race-style, all-aluminum drain plug for easy draining.

Secure CheckoutFast Shipping631-982-0042

Fits this vehicle

Ford Mustang 2005-2014

Product Details

When you're pushing your 2005-2014 Ford Mustang hard, whether on the street or the track, keeping engine temperatures in check is crucial. This all-aluminum radiator from CSF is built to handle the extra heat generated by higher horsepower builds or demanding motorsports use. It's designed as a direct replacement, meaning it fits right into your Mustang without needing any modifications, and accepts all your original mounting hardware and hoses.

What sets this radiator apart is CSF's B-Tube technology. Instead of a standard oval tube, these B-tubes are shaped and seam-brazed for increased strength and a larger surface area, boosting heat transfer by about 15% over conventional tubes. This allows for a dual liquid flow, enhancing cooling efficiency. Combined with multi-louvered fins precisely aligned to maximize airflow, this radiator is engineered to reject heat effectively. The core is a 2-row, 42mm design, offering substantial cooling capacity. Even the drain plug is a race-style aluminum unit, and the brackets are CNC machined for a solid, durable fit.

This radiator is designed to use your Mustang's original quick-connect hoses, AC condenser, and fan shroud, making installation straightforward. It's a well-built component from a company with over 50 years of experience in radiator manufacturing, ensuring your engine stays cool and performs at its best.
