CSF 07-18 Jeep Wrangler (JK) Radiator

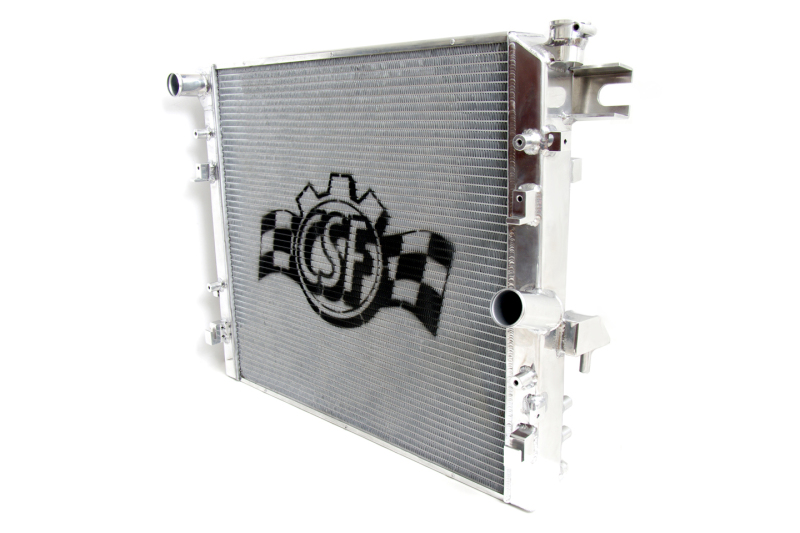

Photo - out of package
Photo - out of package

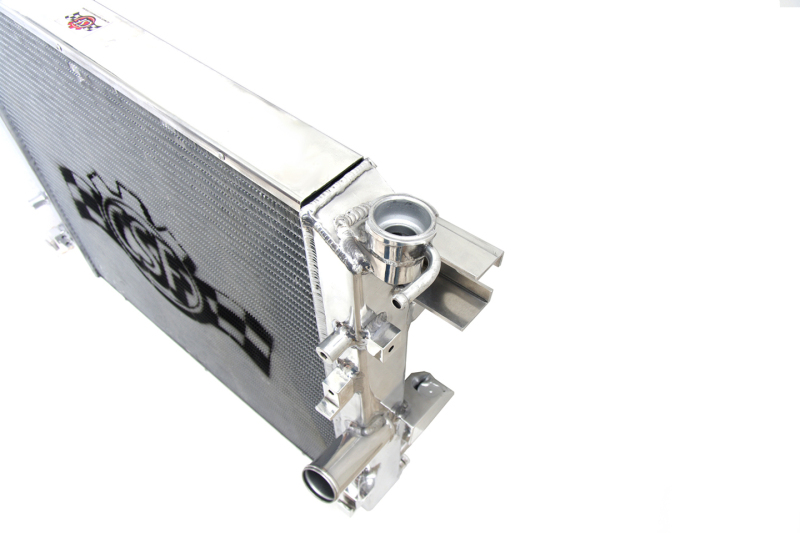

Photo - Close Up

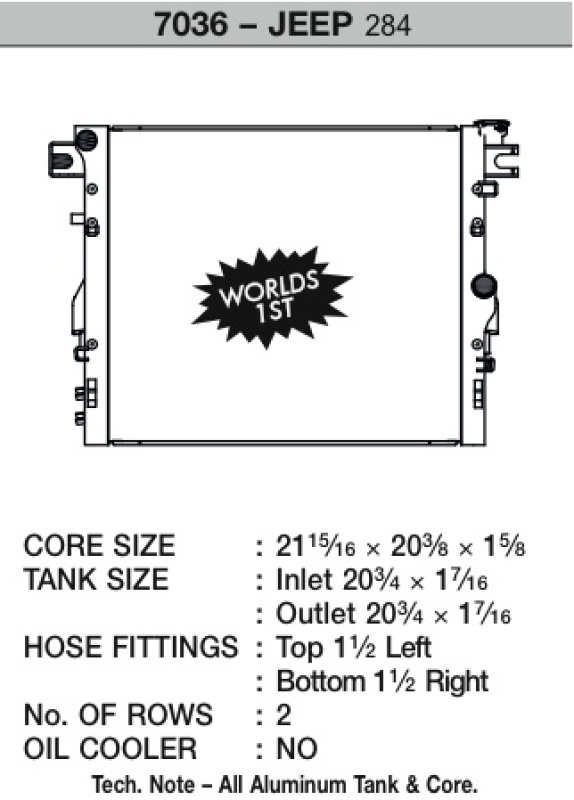

Technical Drawing
1 / 5
CSF
CSF

CSF 07-18 Jeep Wrangler (JK) Radiator

$525.00

Only 3 left in stock

Fits 2007-2018 Jeep Wrangler. CSF all-aluminum radiator with B-Tube technology for improved engine cooling.

Key Features

  • Fits 2007-2018 Jeep Wrangler.
  • Features CSF's exclusive 2-row, 42mm core with B-Tube technology for increased heat transfer surface area.
  • Ultra-efficient, multi-louvered fins are precisely aligned to maximize airflow and heat rejection.
  • Designed as a direct, "drop-in fit" requiring no modifications for installation.
  • Accepts all original attaching OEM components, including quick-connect hoses, AC condenser, and fan shroud.
  • CNC machined brackets and connections ensure superb fit and durability.
Secure CheckoutFast Shipping631-982-0042

Fits this vehicle

  • Jeep Wrangler 2007-2018

Product Details

CSF uses a specially engineered tube shape, called "B-tube" technology, in this radiator for your 2007-2018 Jeep Wrangler. Unlike standard oval tubes, these B-tubes are seam-brazed, making them stronger and allowing for thinner, lighter aluminum. This design increases the heat transfer surface area by about 15%, giving you the cooling efficiency of two smaller tubes in the space of one large one, which CSF calls "dual liquid laminar flow." Combined with ultra-efficient, multi-louvered fins precisely aligned to maximize airflow, this radiator is built to reject heat effectively.

This CSF radiator is designed as a true drop-in fit, meaning no modifications are needed for installation. It accepts all the original attaching components, including your AC condenser, mounting brackets, and fan shroud. The OE-style brackets are CNC machined and welded for solid durability, and the inlet and outlet connections are made to match the factory specifications, so you can reuse your original or aftermarket hoses. Whether you're tackling tough off-road trails, towing a load, or just driving daily, this all-aluminum radiator offers a robust cooling solution for your Wrangler.

Specifications

Brand
CSF
Manufacturer Part #
7036
UPC
710353070369
