How much oil do I need to add when installing this cooler?

You will need to add an additional half quart of oil during installation. The system will require a total of 7.5 quarts of oil for proper fill-up, compared to the 7 quarts needed for the OEM cooler.

Will this cooler require any modifications to install on my BMW M2?

No, this CSF oil cooler is designed as a true 'drop-in fit'. It accepts all original attaching OEM components, including the oil-line connections, mounting brackets, and shroud/ducting, meaning no modifications are necessary.

What is the main benefit of the 2-core in-series system?

The 2-core in-series system, with its front full-size core and secondary backside cooler, significantly increases cooling surface area and oil volume. This design is crucial for managing higher oil temperatures experienced during track use or demanding driving, helping to prevent the engine from entering limp mode.

2016-2018 BMW M2 Oil Cooler | CSF 8104

Name: CSF 15-18 BMW M2 (F87) Race-Spec Oil Cooler
Brand: CSF
SKU: csf-csf-15-18-bmw-m2-f87-race-spec-oil-cooler-t14-205333
Price: 406.48 USD
Availability: InStock

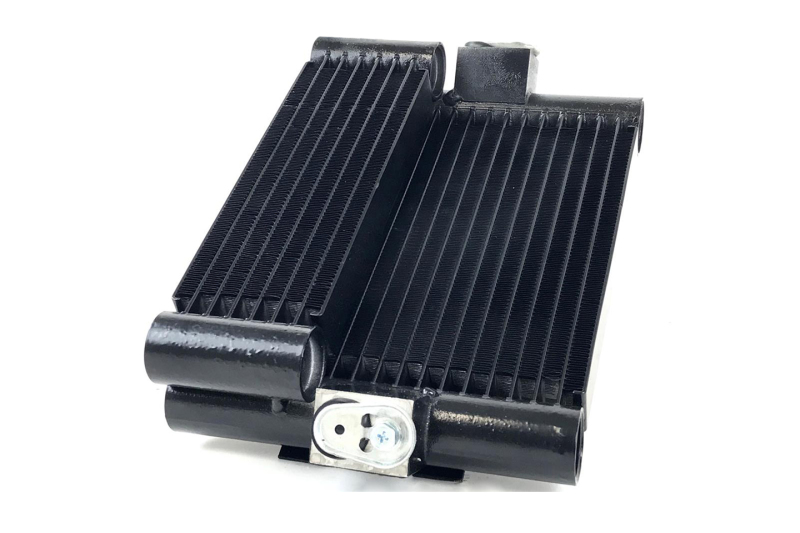

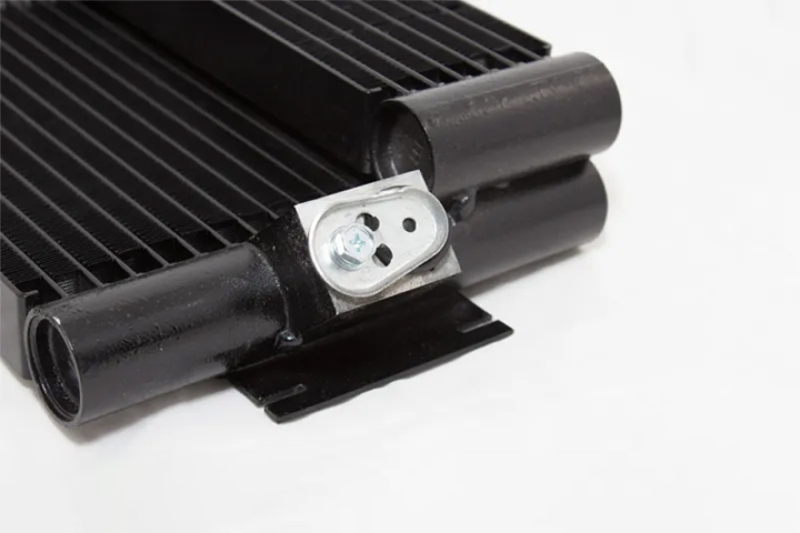

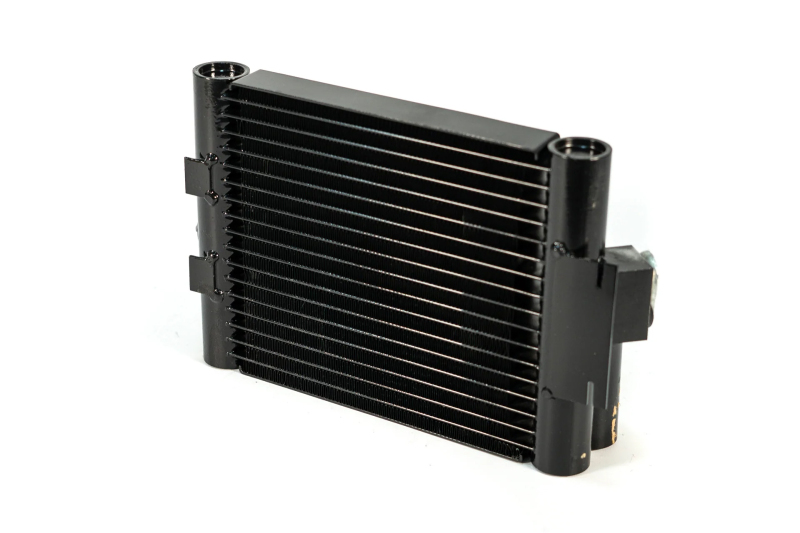

CSF 15-18 BMW M2 (F87) Race-Spec Oil Cooler

$406.48

Only 4 left in stock

Fits 2016-2018 BMW M2. CSF's race-spec oil cooler keeps engine oil temps down during demanding driving, preventing limp mode.

Key Features

Fits 2016-2018 BMW M2 (F87).
CSF's race-spec oil cooler uses a 1-row super-high pressure 26mm multi-channel microtube design.
Track tested to keep oil temperatures around 240? in 103? heat, preventing limp mode.

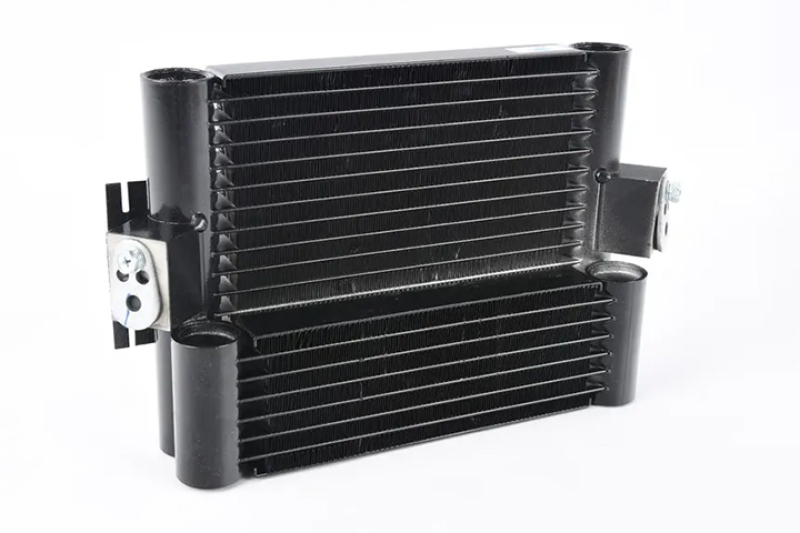

Features a 2-core in-series system with a front core having 17 cooling tubes (vs. OEM 15) and a secondary backside cooler with 6 additional rows.
Increases system oil volume by 0.5 quarts (0.47 liters).
Designed as a true 'drop-in fit', accepting all OEM oil-line connections, mounting brackets, and shroud/ducting.

Secure CheckoutFast Shipping631-982-0042

Will it fit your car?

Fits these vehicles

BMW M2 2016-2018

Product Details

The CSF Race-Spec Oil Cooler uses a 1-row, 26mm multi-channel microtube design, a key detail that helps manage heat in your 2016-2018 BMW M2. When you're pushing your M2 on the track or even just driving hard on the street, the engine oil can reach temperatures that trigger limp mode. This CSF cooler is designed to keep those temps in check, as proven in testing where it kept oil temperatures around 240? even in 103? heat.

This cooler is built using CSF's AC Condenser Technology, featuring a front core with 17 cooling tubes compared to the OEM's 15. It also includes a secondary, in-series backside cooler with an additional 6 rows. This setup increases the overall oil volume by about half a quart, which also contributes to better heat management. Importantly, it's a true drop-in fit, meaning it accepts all the original oil-line connections, mounting brackets, and shroud components, so installation is straightforward without needing any modifications.

During installation, you'll need to add an extra half quart of oil to the system, bringing the total fill to 7.5 quarts. This well-built cooler is a popular choice for M2 owners looking for improved cooling performance under demanding conditions.
