What is CSF's B-Tube Technology?

CSF's B-Tube Technology uses a specially engineered tube shaped like a 'B' instead of a standard oval. This design is brazed over the seam, making it stronger and increasing the heat transfer surface area by approximately 15% over regular tubes, leading to better cooling efficiency.

Does this radiator require any modifications to install on my Corvette?

No, this CSF radiator is designed as a true 'drop-in fit.' It requires no modifications to install, and the inlet/outlet connections are made to match the OE specifications so you can reuse your original hoses.

What is the benefit of the triple-pass flow structure?

The triple-pass flow structure allows the coolant to pass through the radiator core three times. This extended path helps to achieve the lowest possible coolant output temperatures, which is crucial for maintaining optimal engine performance under demanding conditions.

2014-2019 Chevrolet Corvette Radiator

Name: CSF 2014+ Chevrolet Corvette (C7) Z06 Radiator
Brand: CSF
SKU: csf-csf-2014-chevrolet-corvette-c7-z06-radiator-t14-205290
Price: 775.00 USD
Availability: InStock

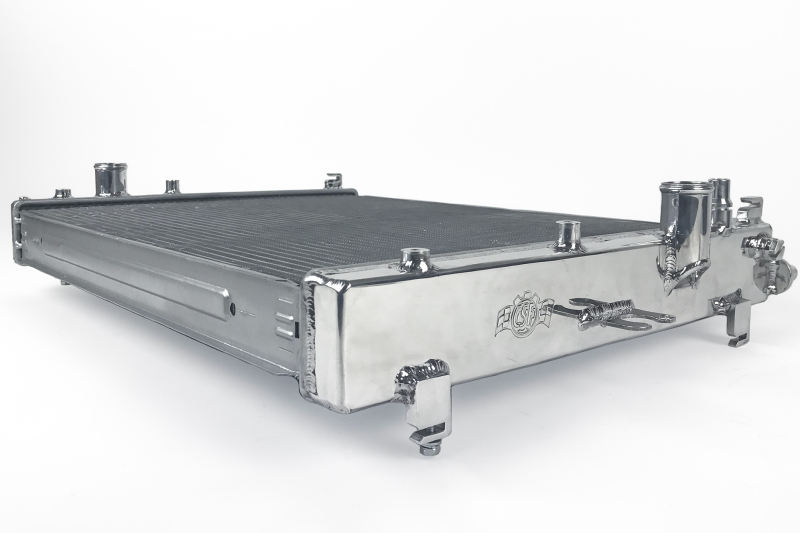

CSF 2014+ Chevrolet Corvette (C7) Z06 Radiator

$775.00

In Stock

CSF 2014+ Chevrolet Corvette (C7) Z06 Radiator. All-aluminum construction for improved cooling.

Key Features

Fits 2014-2019 Chevrolet Corvette.
All-aluminum construction with a 2-row, 52mm core featuring CSF's exclusive B-Tube Technology.
Triple-pass flow structure helps achieve the lowest possible coolant output temperatures.
Features ultra-efficient multi-louvered fins with an 8mm fin height for maximum surface area contact.
Includes CNC machined brackets and fittings for a superb fit and durability.
Designed as a direct, drop-in fit requiring no modifications for easy installation.

Secure CheckoutFast Shipping631-982-0042

Product Details

CSF has been making radiators for over 50 years, so they know a thing or two about keeping engines cool. If you've got a 2014-2019 Chevrolet Corvette, especially a Z06 or a high-horsepower build, you know how important it is to manage engine temps. This all-aluminum radiator is built to handle the heat, whether you're on the street or the track.

What makes this radiator stand out is CSF's exclusive B-Tube Technology. Instead of a standard oval tube, they use a specially shaped 'B' tube that's brazed over the seam. This design is stronger, uses lighter aluminum, and actually increases the heat transfer surface area by about 15% compared to regular tubes. It's like having two smaller tubes working together in the same space, allowing for a dual liquid laminar flow. Plus, it uses ultra-efficient, multi-louvered fins that are precisely aligned to maximize airflow and heat rejection, all tested in a wind tunnel.

You'll see significantly reduced engine temperatures, which means your Corvette can perform at its best for longer. It's designed as a true drop-in fit, meaning no modifications are needed for installation. The brackets are CNC machined and welded for durability, and the inlet and outlet connections match the factory setup, so you can reuse your original hoses. It also comes with integrated all-aluminum race-style bleeder screws for easier bleeding.
