What is the advantage of the Triple-Pass Flow Structure?

The Triple-Pass Flow Structure means the coolant travels across the radiator core three times before exiting. This extended path allows for more heat to be dissipated, resulting in significantly lower outlet coolant temperatures compared to a standard single-pass radiator.

Will this radiator fit with my aftermarket intercooler?

This radiator has a thicker 42mm core compared to the stock 26mm core. It will not fit with aftermarket intercoolers that have a core thickness greater than 60mm. CSF has confirmed fitment with intercoolers from AMS, APR, and 034 Motorsport.

Does this radiator come with everything needed for installation?

This radiator is designed as a 'drop-in fit' and accepts all original attaching OEM components, including the AC condenser, mounting brackets, and fan shroud. You can reuse your factory hoses and quick-connect fittings.

CSF High-Performance Radiator 7084 - 2015+ VW Golf/GTI

Name: CSF 2015+ Volkswagen Golf/GTI (VAG MQB) Triple-Pass Radiator
Brand: CSF
Price: 669.00 USD
Availability: InStock

CSF 2015+ Volkswagen Golf/GTI (VAG MQB) Triple-Pass Radiator

$669.00

In Stock

CSF 2015+ VW Golf/GTI Triple-Pass Radiator. All-aluminum construction with B-Tube tech for improved cooling.

Key Features

Fits 2015 and newer Volkswagen Golf/GTI (MQB platform) and many other Audi/VW models.
Triple-Pass Flow Structure allows coolant to cross the core three times for lower outlet temperatures.
Features a 2-row, 42mm core with CSF's exclusive B-Tube Technology for increased heat transfer surface area.
Ultra-efficient multi-louvered fins are precisely aligned to maximize airflow and heat rejection.
All-aluminum construction with a smooth satin finish and a race-style drain plug.
True 'drop-in fit' design requires no modifications and accepts all attaching OEM components.

Secure CheckoutFast Shipping631-982-0042

Will this fit your vehicle?

Product Details

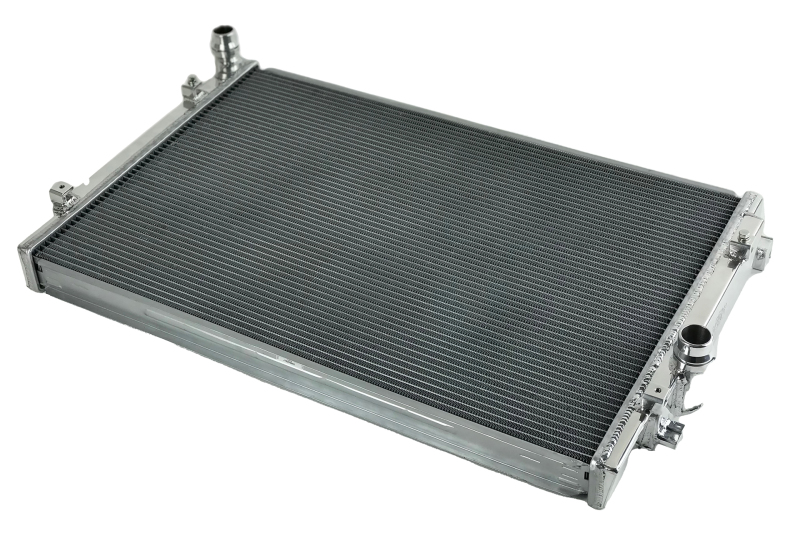

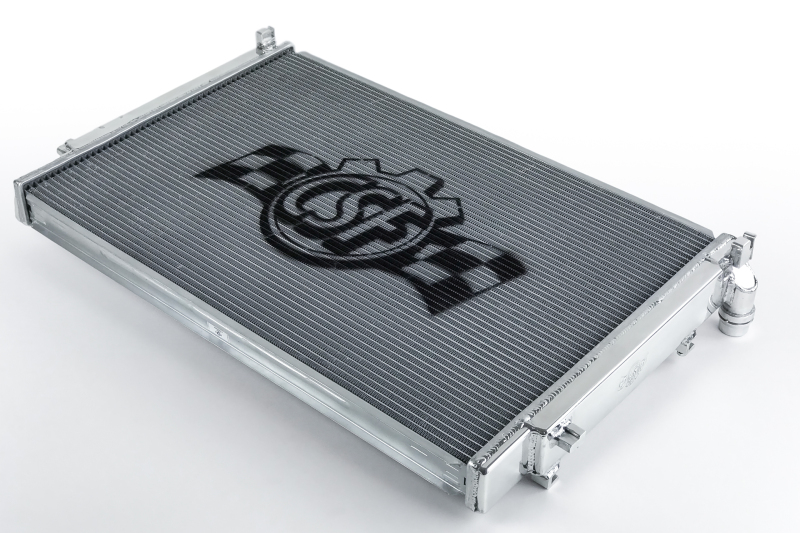

This is the CSF High-Performance All-Aluminum Radiator, designed for 2015 and newer Volkswagen Golf and GTI models on the MQB platform, along with a range of other Audi and VW vehicles. If you're pushing your engine hard, whether on the street or the track, keeping it cool is critical. This radiator is built to handle the extra heat generated by higher horsepower builds or demanding motorsports use.

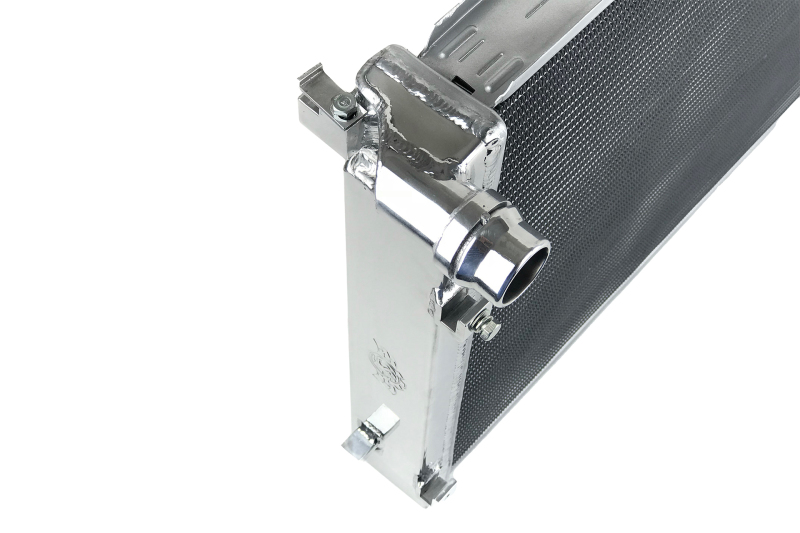

What sets this radiator apart is its Triple-Pass Flow Structure. Instead of coolant flowing through the core just once, it makes three passes. This design significantly lowers the outlet coolant temperature, meaning your engine stays cooler under load. It features a 2-row, 42mm core that utilizes CSF's exclusive B-Tube Technology. Unlike standard oval tubes, these B-tubes are stronger and increase the heat transfer surface area by about 15%, effectively acting like two smaller tubes in one. This advanced design, combined with multi-louvered fins precisely aligned for maximum airflow, ensures efficient heat rejection. The radiator also includes CNC machined brackets and fittings for a durable, precise fit, and it uses OE-style connections so you can reuse your factory hoses.

This radiator is a true 'drop-in fit,' meaning no modifications are needed for installation. It accepts all your original attaching components, including the AC condenser and fan shroud. It's important to note that due to its thicker 42mm core (compared to the stock 26mm), it may not fit with some aftermarket intercoolers that are thicker than 60mm. CSF confirms compatibility with intercoolers from AMS, APR, and 034 Motorsport.
