Does this radiator come with a transmission cooler?

Yes, this CSF radiator features a built-in, heavy-duty 5-plate transmission fluid cooler. It connects to your vehicle's original transmission cooler hoses.

Will this radiator fit my 2001 Toyota 4Runner without any modifications?

Yes, this radiator is designed as a true plug-and-play, drop-in fit for the 1996-2002 Toyota 4Runner. No modifications, trimming, or cutting are required for installation.

What is CSF's B-Tube technology?

CSF's B-Tube technology refers to the unique shape and construction of the cooling tubes within the radiator core. This design is intended to increase the surface area and improve heat transfer by about 15% compared to standard oval welded tubes.

1996-2002 Toyota 4Runner Radiator | CSF 7210

Name: CSF 96-02 Toyota 4Runner (2.7/3.4L) Heavy-Duty All-Aluminum Radiator
Brand: CSF
SKU: csf-csf-96-02-toyota-4runner-2-7-3-4l-heavy-duty-all-aluminum-radiator-t14-567081
Price: 595.00 USD
Availability: InStock

CSF 96-02 Toyota 4Runner (2.7/3.4L) Heavy-Duty All-Aluminum Radiator

$595.00

Only 8 left in stock

Fits 1996-2002 Toyota 4Runner. CSF's heavy-duty all-aluminum radiator offers improved cooling with a 2-row 42mm core and built-in transmission cooler.

Key Features

Fits 1996-2002 Toyota 4Runner (2.7L and 3.4L engines).
Features a 2-row, 42mm high-performance aluminum core for increased coolant capacity and heat dissipation.
Utilizes CSF's exclusive B-Tube technology for approximately 15% improved heat transfer over standard oval tubes.
Multi-louvered fins maximize airflow through the core for efficient cooling.
All-aluminum construction with TIG-welded end tanks for increased strength and durability.
Includes a built-in, heavy-duty 5-plate transmission fluid cooler to manage extra heat.

Secure CheckoutFast Shipping631-982-0042

Will it fit your car?

Fits these vehicles

Toyota 4Runner 1996-2002

Product Details

The 2-row, 42mm aluminum core in this CSF radiator is designed to handle more coolant and dissipate heat more effectively than stock. CSF uses their exclusive B-Tube technology, which is said to increase heat transfer by about 15% over standard oval welded tubes. This means your engine stays cooler, especially when you're pushing your 4Runner hard.

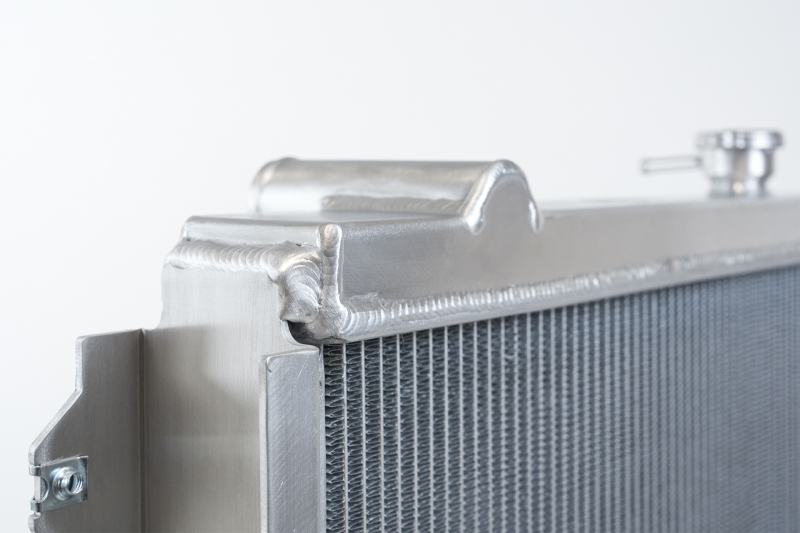

The fins on this radiator are multi-louvered and about 6.5mm tall, maximizing the surface area that air flows over to carry heat away. The end tanks are made from high-grade aluminum and are TIG welded to the core for a strong, reliable connection, unlike the weaker crimped plastic tanks found on the original equipment. Installation is straightforward as it's designed as a true plug-and-play replacement, meaning no modifications are needed. CSF even includes adhesive foam strips to help seal the fan shroud, which improves airflow efficiency from the fan.

This radiator also features a built-in, heavy-duty transmission fluid cooler with a 5-plate design. This is a significant upgrade, especially if you tow, crawl at low speeds, or have installed larger tires. When you increase tire diameter, your engine and transmission have to work harder, generating more heat. This CSF radiator is built to manage that extra heat, keeping your drivetrain running cooler and more reliably.
