CTA Tools
CTA ToolsSKU: XXXCTA5066

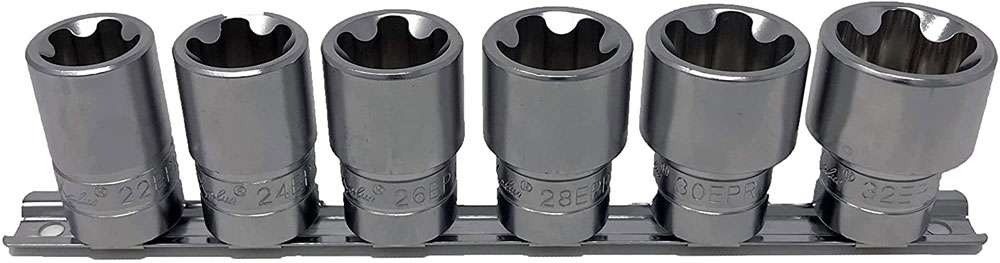

CTA 6 Piece 5pt. EPR Torx Plus Socket Set (1/2" Drive)
$57.95
Usually ships the next business day
NOTE: 5 sided Torx Plus EPR sockets are NOT to be confused with standard Torx Plus EP 6 sided Torx
Need Help?
631-225-1225Fast Shipping
Nationwide delivery
Secure Checkout
Safe & protected
Since 1957
Family-owned
Product Details
- 5 point Torx design
- Found in many new
domestic and import vehicles - Drive size: 1/2�
- Packaged on metal rail
- Torx sockets sizes:
- #5066X22 - 22EPR
- #5066X24 - 24EPR
- #5066X26 - 26EPR
- #5066X28 - 28EPR
- #5066X30 - 30EPR
- #5066X32 - 32EPR - NOTE: 5 sided Torx Plus EPR
sockets are NOT to be confused
with standard Torx Plus EP 6 sided Torx
| Drive | Socket | Max Torque Spec: (in-lb) & (N.m) | |
| 1/4" | EPR 6 | 130 in-lb | 13.69 N.m |
| EPR 7 | 190 in-lb | 21.47 N.m | |
| EPR 8 | 350 in-lb | 39.55 N.m | |
| EPR 10 | 500 in-lb | 68.6 N.m | |
| EPR 11 | 500 in-lb | 68.6 N.m | |
| 3/8" | EPR 12 | 1600 in-lb | 180.78 N.m |
| EPR 14 | 1900 in-lb | 214.67 N.m | |
| EPR 16 | 2200 in-lb | 225 N.m | |
| EPR 18 | 2200 in-lb | 225 N.m | |
| EPR 20 | 2200 in-lb | 225 N.m | |
| 1/2" | EPR 22 | 5000 in-lb | 569 N.m |
| EPR 24 | 5000 in-lb | 569 N.m | |
| EPR 26 | 5000 in-lb | 569 N.m | |
| EPR 28 | 5000 in-lb | 569 N.m | |
| EPR 30 | 5000 in-lb | 569 N.m | |
Specifications
CTA 6 Piece 5pt. EPR Torx Plus Socket Set (1/2" Drive)
$57.95
