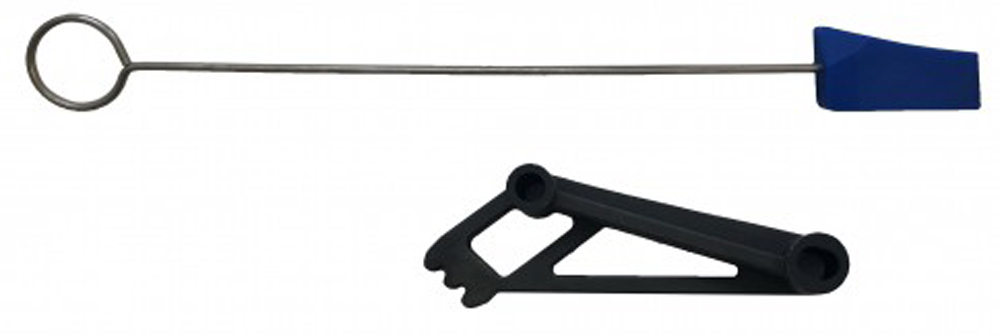

CTA Ford Camshaft Locking Set

• Services Ford 4.6L,
  5.4L & 6.8L 3V engines

• One tool locks camshaft and
  the other locks the timing chain



Instructions:

• Install camshaft sprocket and new
  camshaft bolt, and tighten the bolt manually

• Install tool and tighten the camshaft bolt to specific
  torque value according to original service manuals

• Install timing chain locking tool to lock the timing chain

• Make a mark across camshaft sprocket and timing chain

• Remove the camshaft sprocket for servicing

• Install the camshaft sprocket according to the original service manuals

• Remove timing chain locking tool

• CAUTION: Use hand tool and torque wrench for proper maintenance

• CAUTION: Never remove camshaft bolt holding tool while servicing





Applications:

Make	Model	Engine	Year
Ford	Mustang	4.6L V8	2005-2010
Ford	Super Duty	6.8L V10	2005-2010
Ford	F-150	4.6L V8	2008-2010
Ford	F-150	5.4L V8	2004-2010
Ford	F-Super Duty 250-550	5.4L V8	2004-2010
Ford	F-Super Duty 250-550	6.8L V10	2005-2018
Ford	F-Super Duty 650-750	6.8L V10	2012-2018
Ford	Falcon/Fairmont	5.4L V8	2003-2007
Ford	Explorer	4.6L V8	2005-2010
Ford	Sport Trac	4.6L V8	2006-2010
Ford	Crown Victoria	4.6L V8	1992-2012
Ford	Expedition	5.4L V8	2005-2014
Lincoln	Navigator	5.4L V8	2005-2014
Mercury	Mountaineer	4.6L V8	2005-2010
