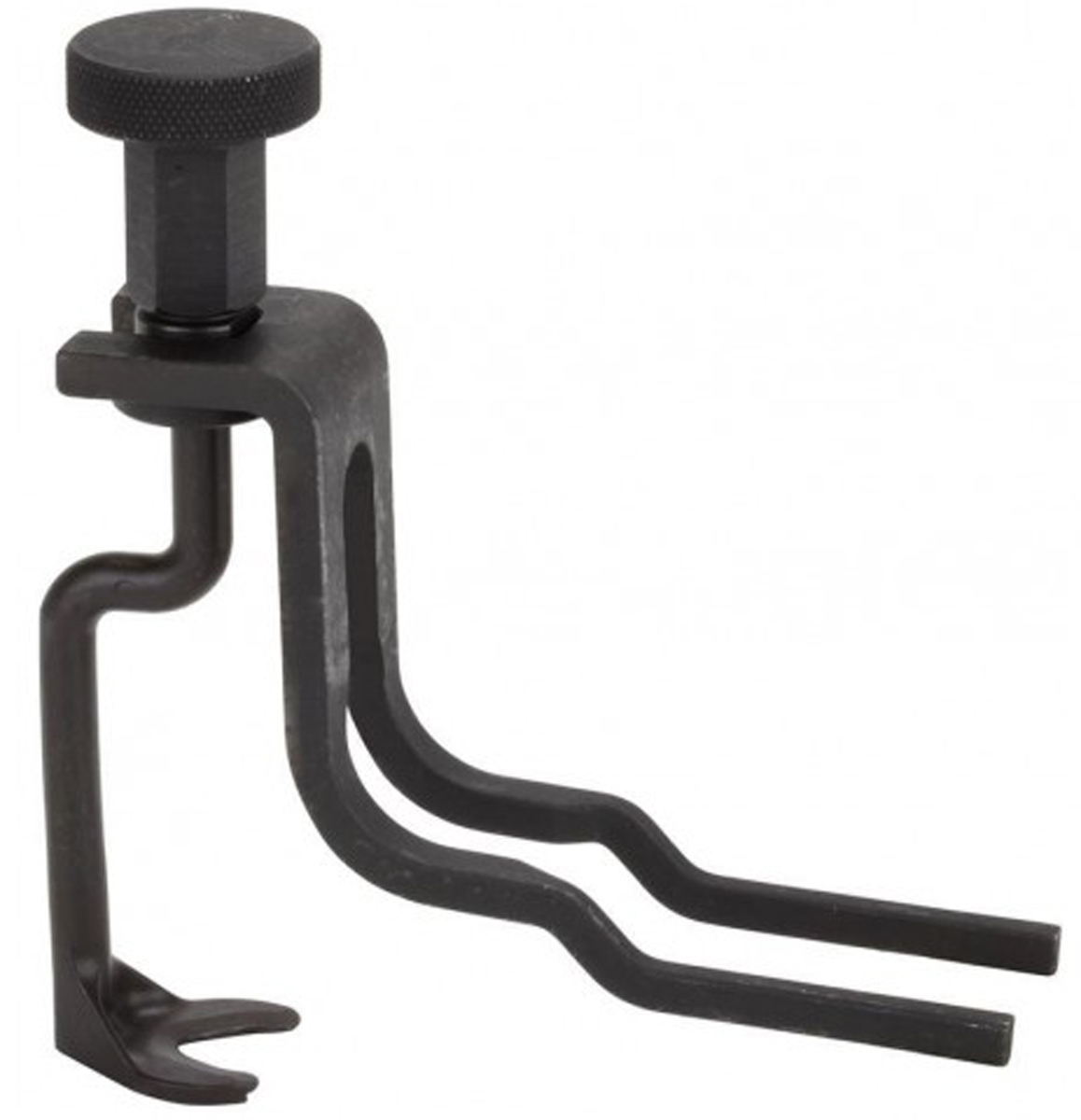

CTA Ford Valve Spring Compressor (4.6L, 5.4L & 6.8L 3V)

• Allows quicker & easier service for Ford
  vehicles w/ 4.6L, 5.4L & 6.8L 3V engine

• Service the:
  - Camshaft
  - Valve Seal
  - Valve Spring
  - Retainer



Instructions:

• Install 2-leg main body below the camshaft
  and above the engine block to form a pivot

• Install the holding hook to the main body,
  aim the hook at the value spring, and
  tighten the knob to hold the valve spring





Note:

• Make sure both legs of the tool sit flat on the
  other side of the head underneath the cam
  (Where valve cover rests on the head)

• Pay attention to the valve keepers

• Ensure they stay on while you pull your rollers

• They may pop up when depressing your springs





Applications:

Make	Model	Engine	Year
Ford	Mustang	4.6L V8	2005-2010
Ford	Super Duty	6.8L V10	2005-2010
Ford	F-150	4.6L V8	2008-2010
Ford	F-150	5.4L V8	2004-2010
Ford	F-Super Duty 250-550	5.4L V8	2004-2010
Ford	F-Super Duty 250-550	6.8L V10	2005-2018
Ford	F-Super Duty 650-750	6.8L V10	2012-2018
Ford	Falcon/Fairmont	5.4L V8	2003-2007
Ford	Explorer	4.6L V8	2005-2010
Ford	Sport Trac	4.6L V8	2006-2010
Ford	Crown Victoria	4.6L V8	1992-2012
Ford	Expedition	5.4L V8	2005-2014
Lincoln	Navigator	5.4L V8	2005-2014
Mercury	Mountaineer	4.6L V8	2005-2010
