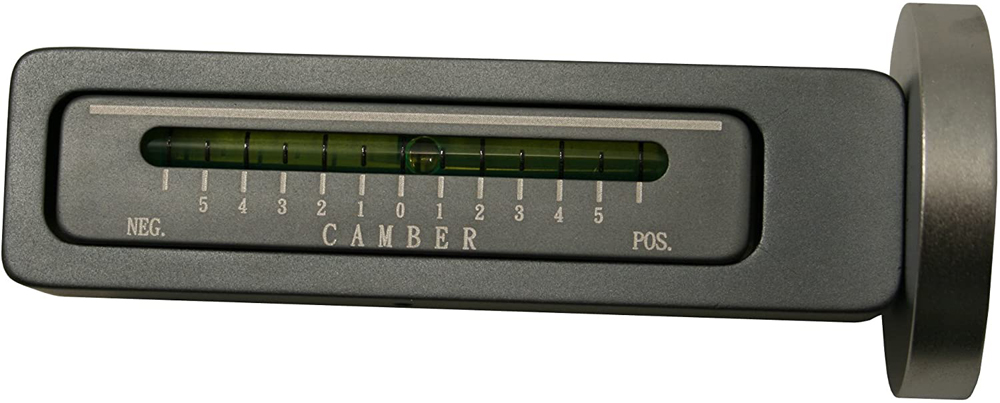

CTA Tools Strut Alignment Level

With thumbwheel on bottom and tool in
horizontal position, adjust to "zero" set

Place tool on flat part of hub or brake rotor
at 12 o'clock position with all lugs torqued to spec

Mark position of base with black
marker to use during reassembly

Read and record measurement
before disassembling of component

During assembly, adjust component to
measurement obtained during disassembly

NOTE: When measurement is back where
it was at the start of the job the camber should
be exactly the same as before disassembly
