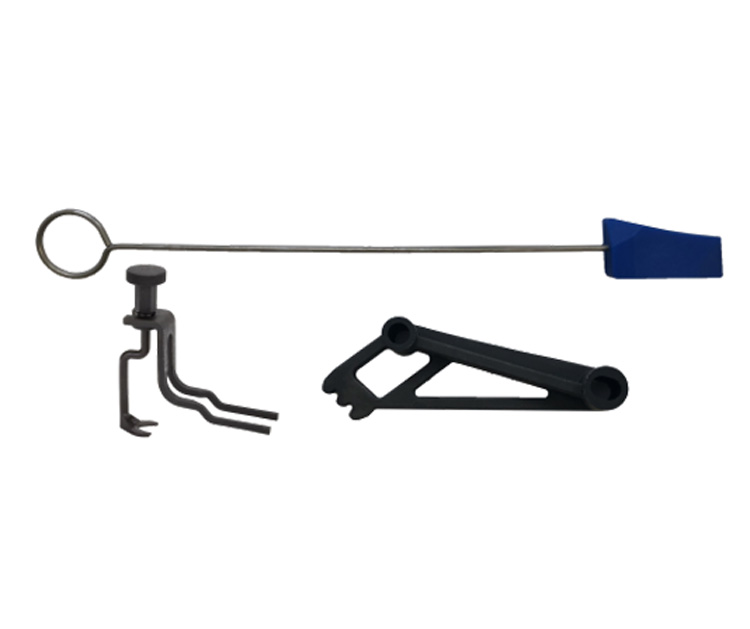

CTA Tools Ford Camshaft Locking Tool Kit

• One tool locks the camshaft while
  the other locks the timing chain

• Services mostly Ford 4.6L, 5.4L
  & 6.8L 3V engines

• Comes with a Ford valve spring compressor

• Comparable to Ford Factory Tools #567614 & 567617



Vehicle Applications:







Instructions:

• Install camshaft sprocket and new camshaft bolt,
  and tighten the bolt manually

• Install tool and tighten the camshaft bolt to specific
  torque value according to original service manuals

• CAUTION: Use hand tool and torque wrench for proper maintenance

• Install timing chain locking tool to lock the timing chain

• Make a mark across camshaft sprocket and timing chain

• Remove the camshaft sprocket for servicing

• Install the camshaft sprocket according to the original service manuals

• Remove timing chain locking tool

• CAUTION: Never remove camshaft bolt holding tool while servicing
