What material are these exhaust gaskets made from?

These gaskets are made from EnCore HTX-900, a composite material featuring graphite-coated fiber sheets bonded to an expanded steel core. This construction is designed for high heat resistance and sealing performance.

What is the port size of these gaskets?

The port size for these Edelbrock exhaust gaskets is 1.813 inches by 1.75 inches. This size is intended to match the port dimensions on Edelbrock cylinder heads for the specified engines.

Will these gaskets work with standard exhaust manifolds or only headers?

These gaskets are suitable for both exhaust manifold and header applications. Their construction and recovery rate help maintain a seal even if header bolt torque is lost.

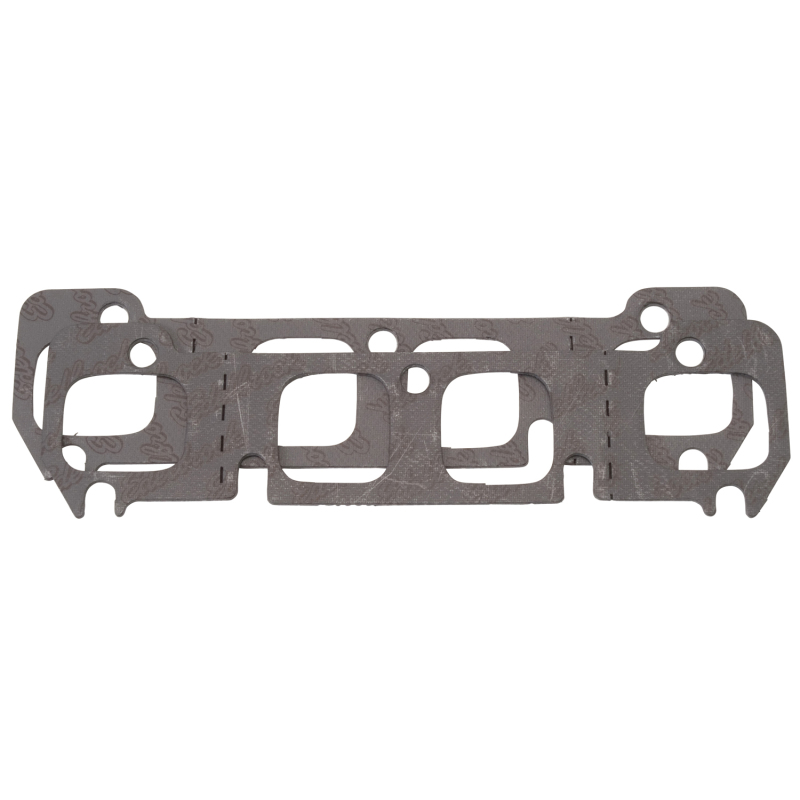

Edelbrock Gaskets Exhaust Chevrolet 348/409 Inwin for Edelbrock Cylinder Heads

1 / 2

Specifications

Brand: Edelbrock
Part #: 7241
UPC: 85347072415

Edelbrock Gaskets Exhaust Chevrolet 348/409 Inwin for Edelbrock Cylinder Heads

Name: Edelbrock Gaskets Exhaust Chevrolet 348/409 Inwin for Edelbrock Cylinder Heads
Brand: Edelbrock
SKU: edelbrock-edelbrock-gaskets-exhaust-chevrolet-348-409-inwin-for-edelbrock-cylind-t14-126751
Price: 32.95 USD
Availability: BackOrder

$32.95

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

Edelbrock exhaust gaskets for Chevy 348/409 W-Series engines. Made from a high-density composite for excellent sealing.

Key Features

Designed for 1958-1965 Chevy 348 and 409 'W Series' V8 engines.
Constructed from EnCore HTX-900, a high-density non-asbestos fiber/metal core composite.
Features graphite-coated, heat-resistant fiber blended sheets fused to an expanded steel core.
Offers high heat resistance and excellent load retention for reliable sealing.
Has a 50% recovery rate to accommodate potential loss of header bolt torque.
Port size measures 1.813 inches by 1.75 inches.

These exhaust gaskets are designed for 1958-1965 Chevrolet 348 and 409 'W Series' V8 engines.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Product Details

If you're installing Edelbrock cylinder heads on your 1958-1965 Chevy 348 or 409 'W Series' V8, you'll need a solid set of exhaust gaskets to seal up those manifolds or headers. These Edelbrock gaskets are built for that specific job, ensuring a good seal even under high heat.

They're constructed from EnCore HTX-900, a well-built composite material that combines graphite-coated fiber sheets with an expanded steel core. This design offers good heat resistance and holds its shape well, which is important because exhaust headers can sometimes lose bolt torque. The material has a 50% recovery rate, meaning it can expand a bit if that torque loosens, helping to maintain a seal. The port size on these gaskets is 1.813 inches by 1.75 inches, designed to match up with Edelbrock's cylinder head ports.
