What is the main benefit of a dual-pass heat exchanger design?

A dual-pass design means the coolant flows through the heat exchanger core twice. This extended path allows for more surface area contact and a longer duration for heat transfer, resulting in more efficient cooling of the supercharger's compressed air compared to a single-pass unit.

What is included with this Edelbrock heat exchanger?

The heat exchanger includes the main unit with a black finish, a 3/4-inch barbed inlet and outlet for plumbing, and four M6x1.0 threaded bungs for mounting. You will need to supply your own coolant lines and mounting hardware.

Can this heat exchanger be used on any supercharger system?

This heat exchanger is specifically designed to work with Edelbrock Universal or Enforcer Supercharger systems. While it's a universal part, its dimensions and connection types are optimized for these Edelbrock kits. Always confirm compatibility with your specific supercharger setup.

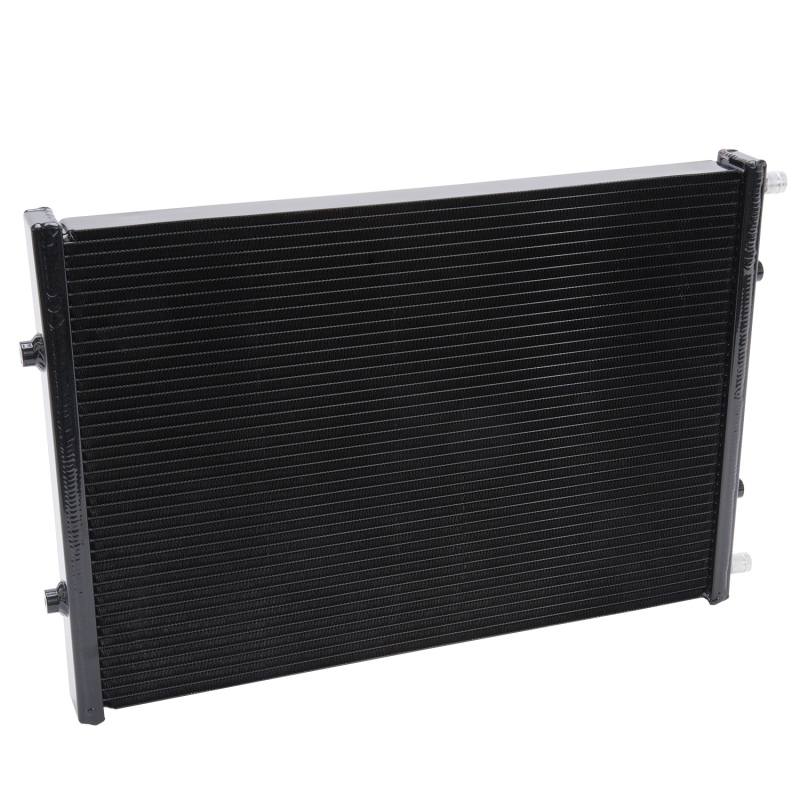

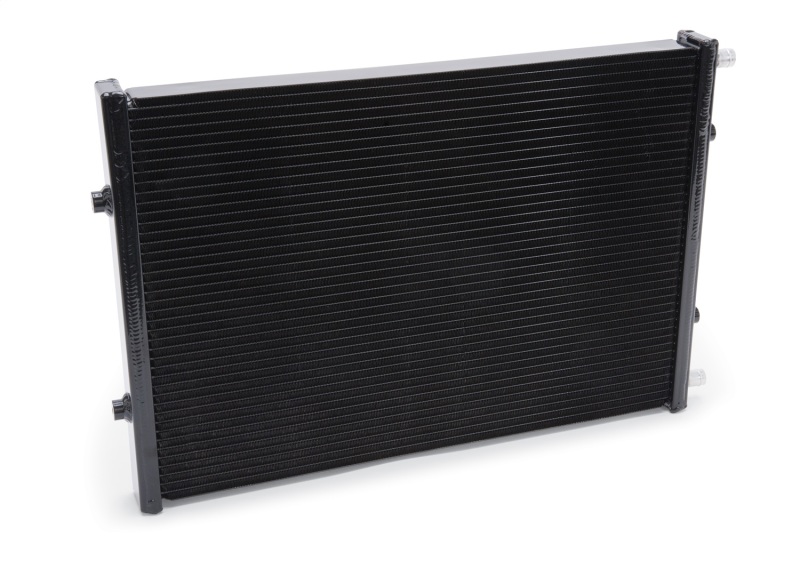

Edelbrock Heat Exchanger Dual Pass Single Row 24in x 16.5in x 2.12in - Black

1 / 4

Edelbrock

Specifications

Brand: Edelbrock
Part #: 15569
UPC: 085347155699

Edelbrock

Edelbrock Heat Exchanger Dual Pass Single Row 24in x 16.5in x 2.12in - Black

Name: Edelbrock Heat Exchanger Dual Pass Single Row 24in x 16.5in x 2.12in - Black
Brand: Edelbrock
Price: 868.83 USD
Availability: InStock

$868.83

Edelbrock Heat Exchanger Dual Pass Single Row 24in x 16.5in x 2.12in - Black. Boosts supercharger system performance with reliable cooling.

Key Features

Fits Edelbrock Universal or Enforcer Supercharger systems.
Dual pass, single row design for efficient cooling.
Measures 24 inches wide, 16.5 inches high, and 2.12 inches deep.
Offers a cooling capacity of 44,600 BTU/hr.
Includes 3/4-inch barbed inlet and outlet for coolant lines.
Features four M6x1.0 threaded bungs for mounting.

This is a universal heat exchanger designed to work with Edelbrock Universal or Enforcer Supercharger systems. Check your specific supercharger system's requirements for compatibility.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Product Details

This is the Edelbrock #15569 Universal Heat Exchanger, a key component for any forced induction setup using an Edelbrock Universal or Enforcer Supercharger system. Its primary job is to cool the compressed air coming from your supercharger before it enters the engine. Cooler air is denser, which means more oxygen can be packed into the cylinders, leading to a more powerful and efficient combustion. This particular unit is a dual-pass, single-row design, measuring 24 inches wide, 16.5 inches high, and 2.12 inches deep, and it's finished in a sleek black to blend into your engine bay.

The dual-pass design means the coolant travels through the core twice, allowing for more efficient heat dissipation compared to a single-pass unit. Edelbrock states this heat exchanger can handle a cooling capacity of 44,600 BTU per hour, making it well-suited for street performance applications where consistent, reliable cooling is crucial for maintaining optimal supercharger performance. It comes equipped with a 3/4-inch barbed inlet and outlet for easy plumbing of your coolant lines, and four M6x1.0 threaded bungs are integrated for secure mounting. This well-built unit is designed for durability and reliable operation, helping to ensure your supercharger system performs at its best.

When installing this heat exchanger, you'll need to consider how you'll route your coolant lines and secure the unit in place using the provided mounting bungs. It's a solid option for anyone looking to optimize their supercharged engine's performance and reliability. Please note that this part is not CARB approved and cannot be shipped to California.
