Edelbrock Perf RPM Cam and Lifters Kit Ford 289-302
Photo - Primary
Photo - Unmounted
Technical Drawing
Technical Drawing
Photo - out of package
1 / 6
Edelbrock
Edelbrock

Edelbrock Perf RPM Cam and Lifters Kit Ford 289-302

$507.28

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

Edelbrock Perf RPM Cam and Lifters Kit Ford 289-302. Boosts power from 1500-6500 rpm for street performance.

Key Features

  • Fits a wide range of Ford small-block V8 engines including 260, 289, and 302 applications.
  • Designed for high-performance street use, providing power from 1500 to 6500 RPM.
  • Camshaft specifications include 224 degrees intake duration and 234 degrees exhaust duration at .050 lift.
  • Valve lift figures are .496" for the intake and .520" for the exhaust.
  • Features a lobe separation of 112 degrees and an intake centerline of 107 degrees.

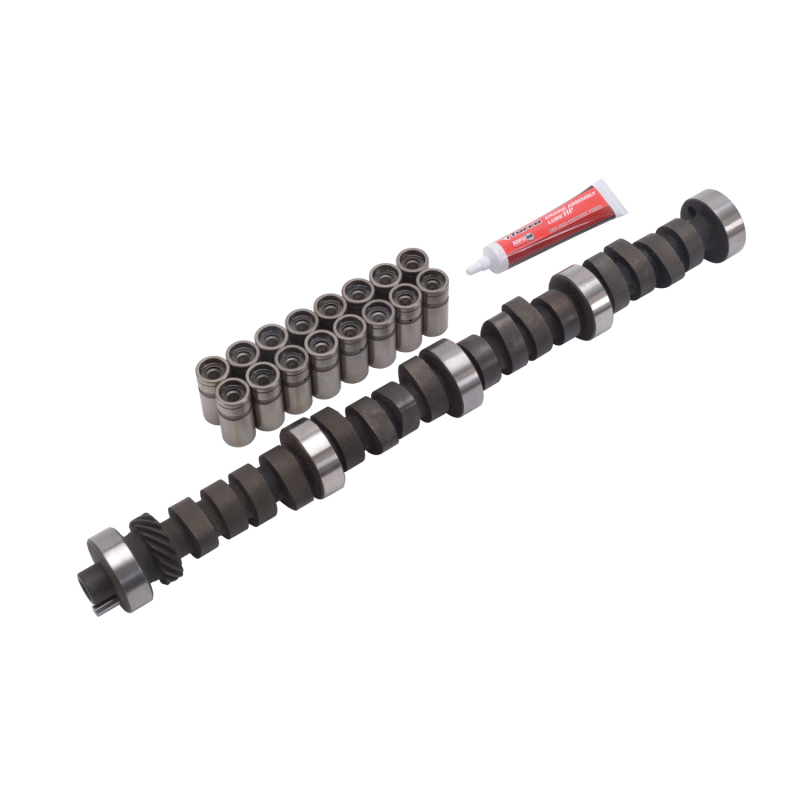

  • Includes hydraulic flat tappet lifters for a complete valvetrain upgrade.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Product Details

If you're looking to get more power out of your small-block Ford 289, 302, or even the 260 V8, this Edelbrock Performer RPM Cam and Lifters Kit is a solid choice. This kit is designed to give your engine a noticeable boost in performance, especially in the 1500 to 6500 RPM range, making it well-suited for high-performance street applications. It's a popular upgrade for classic Mustangs, Broncos, and many Ford trucks from the late 50s through the 90s.

Edelbrock has taken the guesswork out of selecting a camshaft by dyno-matching this Performer RPM camshaft with their Performer RPM manifolds. This means you get a well-coordinated setup that aims for strong high-rpm horsepower while still keeping acceptable low-end torque. The camshaft itself features a duration of 224 degrees on the intake and 234 degrees on the exhaust at .050 lift, with valve lift figures of .496 inches for the intake and .520 inches for the exhaust. This increased lift and duration over stock camshafts contribute to its performance gains. You'll typically see around 10 to 12 inches of manifold vacuum at idle with this setup.

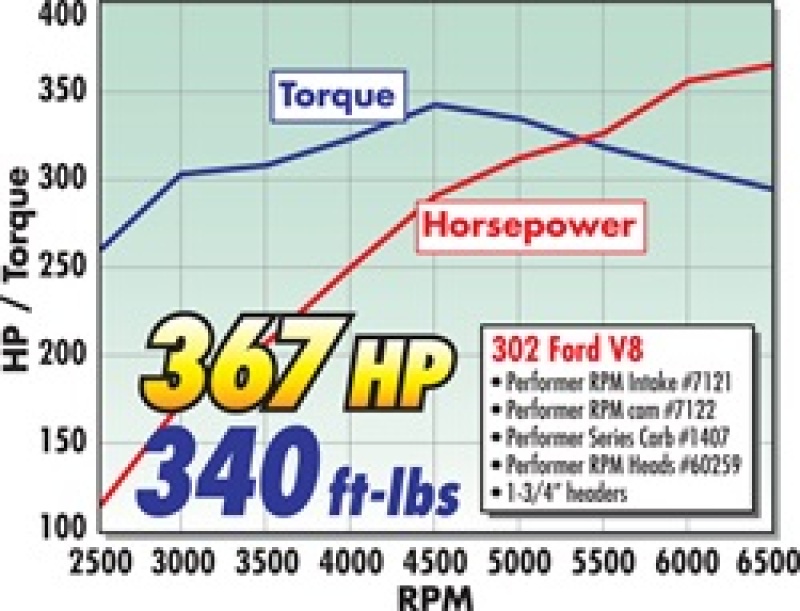

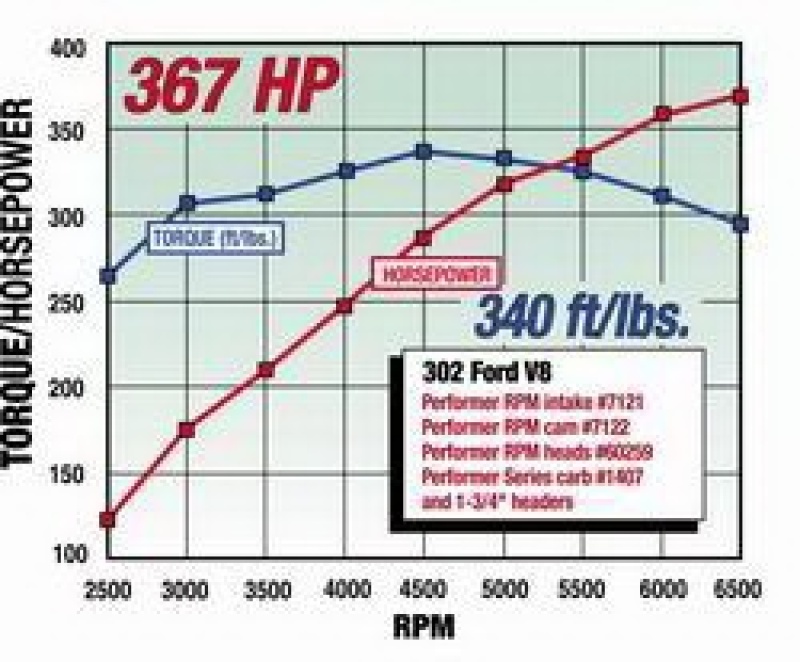

This kit includes the hydraulic flat tappet lifters needed to complete the installation. While this camshaft is designed for significant performance improvements, it's important to note that it is not CARB approved and cannot be shipped to California. For optimal results, consider pairing this camshaft with matching Edelbrock intake manifolds and cylinder heads, as demonstrated in their dyno tests which showed gains of 367 HP and 340 ft-lbs of torque on a 302 engine when used with specific Edelbrock components.

Specifications

Brand
Edelbrock
Manufacturer Part #
7122
UPC
85347071227
