Fabtech 05-07 Ford F250 4WD w/Factory Overload 6in 4Link Sys w/Dlss 4.0 C/O & Rr Dlss

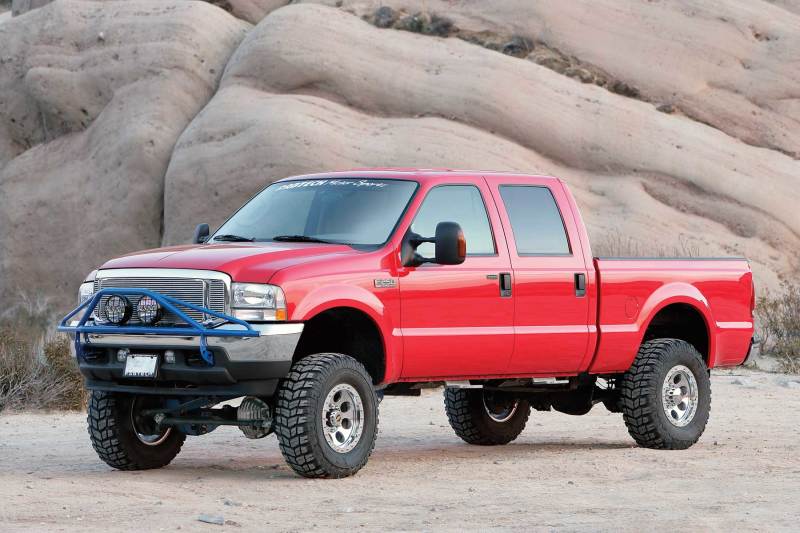

If you're looking to significantly improve the off-road capability and stance of your 2005-2007 Ford F-250 Super Duty 4WD with the factory overload springs, this 6-inch 4-Link system from Fabtech is a top-tier choice. This kit is designed to give you much greater articulation and wheel travel than stock, making it ideal for tackling rough terrain. The system includes a full 4-Link conversion for the front suspension, featuring large 2-inch diameter heavy-wall links that use race-style 1-inch Uniballs for exceptional strength and durability. These links attach to the frame using thick 1/4-inch steel brackets that bolt on without requiring any cutting or welding, simplifying the installation process.

At the heart of this system are the Dirt Logic 4.0 stainless steel coilover shocks for the front, which are built for high-performance damping and a comfortable ride on and off-road. The kit also comes with billet sway bar links to maintain proper sway bar function, a Trac Bar relocation bracket to correct steering geometry, and a new Pitman arm. For the rear, you'll get a block and U-bolt kit to achieve the 6-inch lift, along with 2.25-inch Dirt Logic stainless steel shocks to complement the front setup. This comprehensive package aims to provide a substantial upgrade in suspension performance and capability for your Super Duty.
