Fabtech 05-07 Ford F350 4WD 6in 4Link Sys w/Coils & Stealth

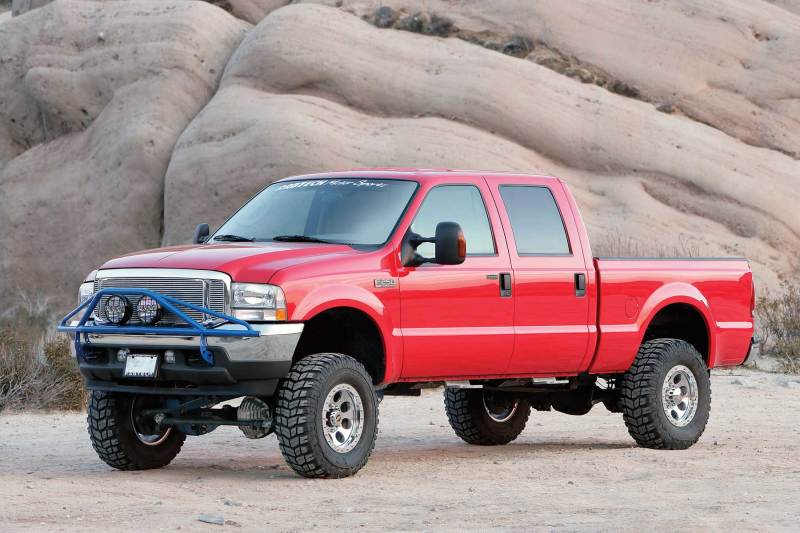

Photo - lifestyle view
1 / 2
Fabtech
Fabtech

Fabtech 05-07 Ford F350 4WD 6in 4Link Sys w/Coils & Stealth

$3143.57

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

Fits 2005-2007 Ford F-350 4WD. This 6-inch 4-link lift system with coils and Stealth shocks offers improved articulation and wheel travel.

Key Features

  • Fits 2005-2007 Ford F-350 Super Duty 4WD.
  • Provides a 6-inch suspension lift.
  • Features a 4-link front suspension system for improved articulation and wheel travel.
  • Includes heavy-duty 2-inch diameter links with 1/4-inch thick steel frame brackets.
  • Utilizes 1-inch Uniballs for superior strength and suspension movement.
  • Comes with replacement coil springs and Fabtech Stealth shocks.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Fits this vehicle

  • Ford F-350 Super Duty 2005-2007

Product Details

If you're looking to significantly improve the off-road capability and stance of your 2005-2007 Ford F-350 Super Duty 4WD, this 6-inch 4-Link System from Fabtech is a well-built option. This kit is designed to give your truck more wheel travel and better articulation, making it handle rough terrain more comfortably. It replaces the factory radius arms with a robust 4-link setup, which is a common upgrade for trucks that see a lot of off-road use.

The heart of this system is its heavy-duty 2-inch diameter links, constructed with thick 1/4-inch steel brackets that bolt directly to the frame, meaning no cutting or welding is required for installation. These links use 1-inch Uniballs, a race-inspired component known for its strength and ability to allow for greater suspension movement. The kit comes complete with replacement coil springs designed to achieve the 6-inch lift, along with Billet Sway bar links for improved sway control, a Trac Bar relocation bracket to center the front axle, and a Pitman arm. The rear lift is handled by a block and U-bolt kit.

This system also includes Fabtech's Stealth shocks, which are designed to work with the increased travel and provide a comfortable ride on and off-road. Everything you need for the front suspension upgrade is included, and the rear lift is straightforward with the provided blocks and U-bolts. This comprehensive kit aims to provide a significant improvement in both performance and appearance for your Super Duty.

Specifications

Brand
Fabtech
Manufacturer Part #
K20132M
