Specifications
- Brand
- Firestone
- Part #
- 9248
- UPC
- 767555104958
Firestone Air Tank 5 Gallon 7in. x 34in. (6) 1/2in. NPT Ports 150 PSI Max - Black (WR17609248)
$138.15
Firestone Air Tank 5 Gallon 7in. x 34in. (6) 1/2in. NPT Ports 150 PSI Max - Black (WR17609248). Provides compressed air for air helper springs.
Key Features
- The tank has a 5-gallon capacity for compressed air.
- It includes six 1/2-inch NPT ports and one 1/4-inch NPT port for air line connections.
- The steel tank is coated inside and out with baked black enamel to resist corrosion.
- It is tested to SAE J10 specifications and operates at a maximum of 150 PSI.

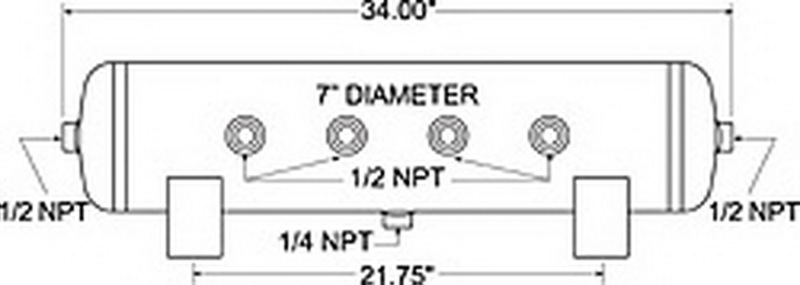

- Tank dimensions measure 34 inches long by 7 inches in diameter.
Product Details
This Firestone air tank is built with a steel construction that's coated inside and out with a baked black enamel. This coating helps prevent corrosion, keeping the tank in good shape for a long time. It's designed to hold 5 gallons of compressed air, giving you a ready supply for your air helper spring system. Having this reserve means your air springs can inflate faster when you need them.
You'll find plenty of connection points with six 1/2-inch NPT ports and one 1/4-inch NPT port, making it easy to plumb into your setup. The tank is tested to SAE J10 specifications and can handle up to 150 PSI, which is twice its working pressure. Its dimensions are 34 inches long with a 7-inch diameter, fitting into many common installation spots.
Specifications
- Brand
- Firestone
- Manufacturer Part #
- 9248
- UPC
- 767555104958
