Specifications
- Brand
- Firestone
- Part #
- 9246
- UPC
- 767555107966

Firestone Air Tank 5 Gallon 9.5in. x 20.75in. (4) 1/4in. NPT Ports 150 PSI - Black (WR17609246)
$130.09
Firestone Air Tank 5 Gallon 9.5in. x 20.75in. (4) 1/4in. NPT Ports 150 PSI - Black (WR17609246)Provides compressed air for air helper springs.
Key Features
- This product includes a 5-gallon air tank with a black enamel coating.
- It offers a source of compressed air for an air helper spring system.
- The tank allows for faster inflation of air springs due to its reserve capacity.
- It is equipped with four 1/4-inch NPT ports and one 1/8-inch NPT port for air line connections.
- Internal and external enamel coating helps resist corrosion.
- The tank is tested to be SAE J10 compliant and operates at a maximum of 150 PSI.
Product Details
This Firestone air tank gives you a ready supply of compressed air for your air helper spring system. It holds 5 gallons, which means you'll have a larger air reserve on hand, allowing for quicker inflation of your air springs when you need them. The tank is built to handle up to 150 PSI and features a total of five ports: four 1/4-inch NPT ports and one 1/8-inch NPT port, giving you plenty of options for connecting air lines and accessories.

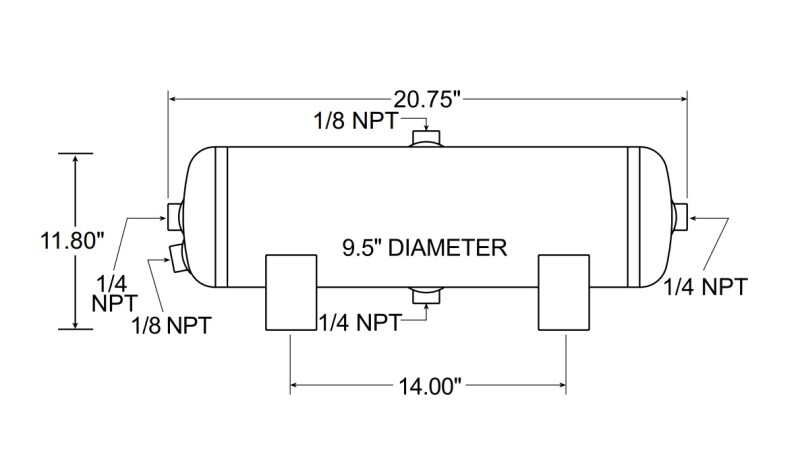

To ensure it holds up over time, the tank has an internal and external enamel coating that helps resist corrosion. It's also been pressure tested to twice its working pressure and meets SAE J10 specifications, so you know it's built to standard. The black enamel finish gives it a clean look, and the dimensions are 9.5 inches in diameter by 20.75 inches long.
Specifications
- Brand
- Firestone
- Manufacturer Part #
- 9246
- UPC
- 767555107966
