What is this part used for?

This is a replacement bellows for Firestone Ride-Rite air helper spring kits. It's the main rubber component that inflates with air to support your vehicle's load.

How does this part help my vehicle?

When used as part of a complete air helper spring system, this bellows allows you to adjust air pressure to increase your vehicle's load capacity, improve stability, and reduce suspension fatigue.

What are the mounting points on this bellows?

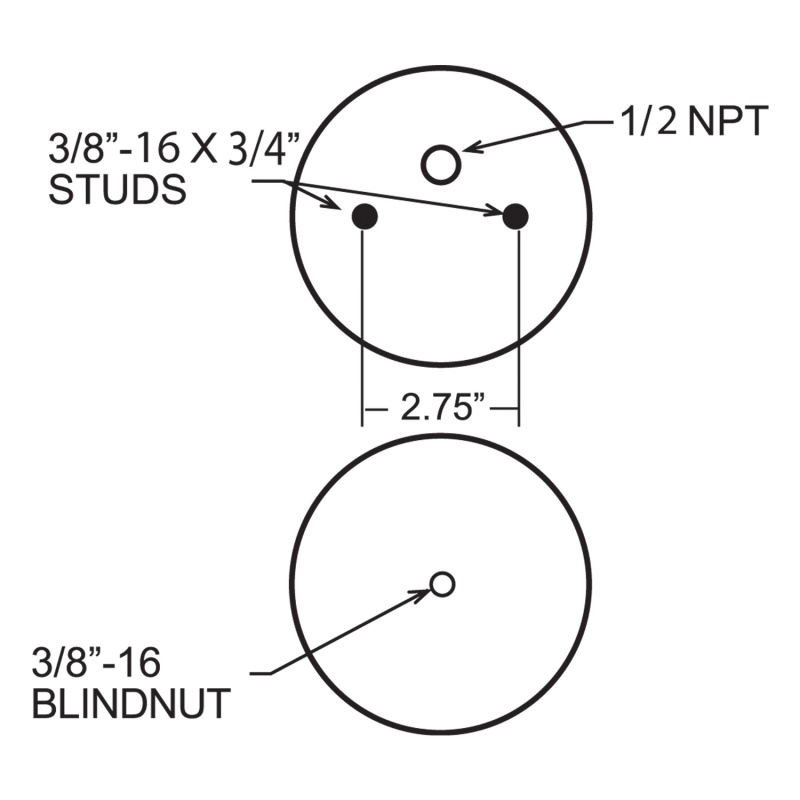

The 224C bellows has a 1/2 inch NPT port for air line connection and two 3/4 inch studs on the top mounting plate. The bottom mounting plate has a center blind nut.

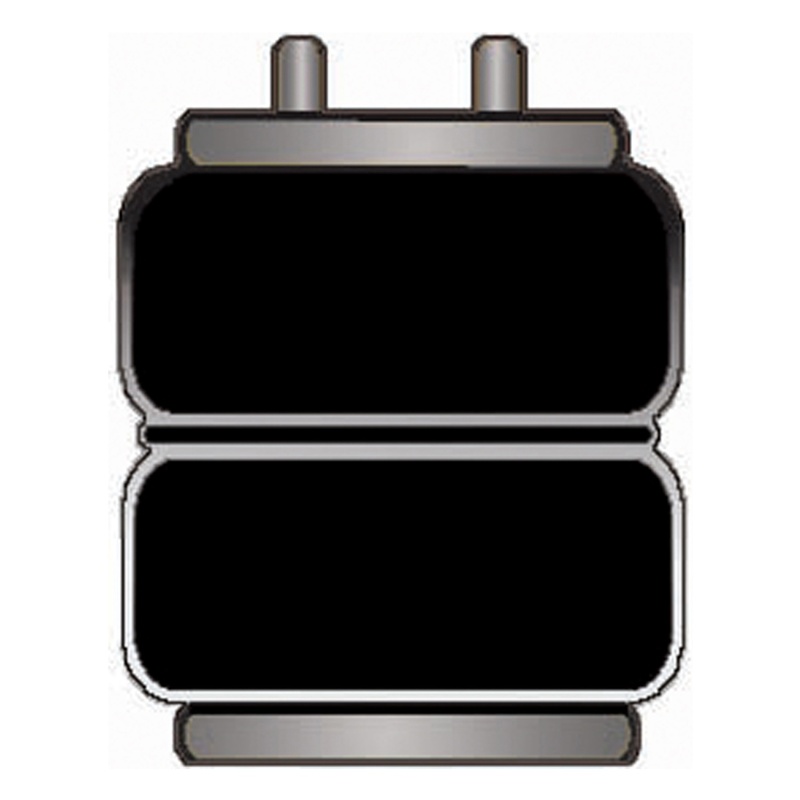

Firestone Ride-Rite Replacement Air Helper Spring 224C (W217606776)

1 / 4

Specifications

Brand: Firestone
Part #: 6776
UPC: 767555109144

Firestone Ride-Rite Replacement Air Helper Spring 224C (W217606776)

Name: Firestone Ride-Rite Replacement Air Helper Spring 224C (W217606776)
Brand: Firestone
SKU: firestone-firestone-ride-rite-replacement-air-helper-spring-224c-w217606776-t14-167715
Price: 236.65 USD
Availability: BackOrder

$236.65

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

Firestone Ride-Rite Replacement Air Helper Spring 224C (W217606776). Replacement bellows for air helper springs. Improves load capacity and stability.

Key Features

Fits Firestone Ride-Rite air helper spring systems.
Features a 1/2 inch NPT port and two 3/4 inch studs on top.
Includes a center blind nut on the bottom for mounting.
Helps increase vehicle load-carrying capacity and stability.
Reduces suspension fatigue and prevents bottoming out.
Allows for independent side-to-side air pressure adjustment to keep the vehicle level.

This is a replacement bellows for Firestone Ride-Rite air helper spring systems. Check your existing system's compatibility to ensure this part is the correct replacement.

Secure CheckoutFast Shipping631-982-0042

Product Details

This replacement bellows, the 224C, is designed to work with Firestone's popular Ride-Rite air helper spring systems. It features a 1/2 inch NPT port and two 3/4 inch studs on the top, with a center blind nut on the bottom for mounting. These air springs are built to help your light truck, RV, or van handle heavier loads more safely and comfortably.

By using adjustable air pressure, these springs can significantly increase your vehicle's load-carrying capacity and improve stability, especially when you're hauling off-center loads. They work by reducing suspension fatigue and preventing the vehicle from bottoming out, which also helps maintain a more level ride. The ability to adjust air pressure independently for each side means you can keep your vehicle level even when the weight isn't perfectly balanced.

Firestone's Ride-Rite kits are generally designed as no-drill systems, utilizing factory holes for mounting between the frame and suspension, making installation straightforward. This replacement bellows is a key component for maintaining the performance of your existing air helper spring setup.
