What is the maximum load capacity of this air helper spring bellows?

This Firestone Ride-Rite 224C bellows can support a maximum load of 2500 pounds when inflated to 100 psi. Always ensure your vehicle's suspension can handle the total combined weight.

What is the diameter and height of this air spring?

The 224C style bellows has a diameter of 7.25 inches and a height of 7 inches. This size is specific to certain Firestone Ride-Rite kits.

Does this bellows come with the air lines and fittings?

This product is a replacement bellows only. It includes the air spring bellows itself and features a 3/8 NPT air inlet, but you will need to use your existing air lines and control system.

Firestone Ride-Rite Replacement Air Helper Spring Rear 224C (W217606872)

1 / 4

Specifications

Brand: Firestone
Part #: 6872
UPC: 767555098516

Firestone Ride-Rite Replacement Air Helper Spring Rear 224C (W217606872)

Name: Firestone Ride-Rite Replacement Air Helper Spring Rear 224C (W217606872)
Brand: Firestone
SKU: firestone-firestone-ride-rite-replacement-air-helper-spring-rear-224c-w217606872-t14-167712
Price: 240.11 USD
Availability: BackOrder

$240.11

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

Firestone Ride-Rite Replacement Air Helper Spring 224C (W217606872). A direct fit replacement bellows for your air helper spring system.

Key Features

Fits Firestone Ride-Rite air helper spring systems using the 224C style bellows.

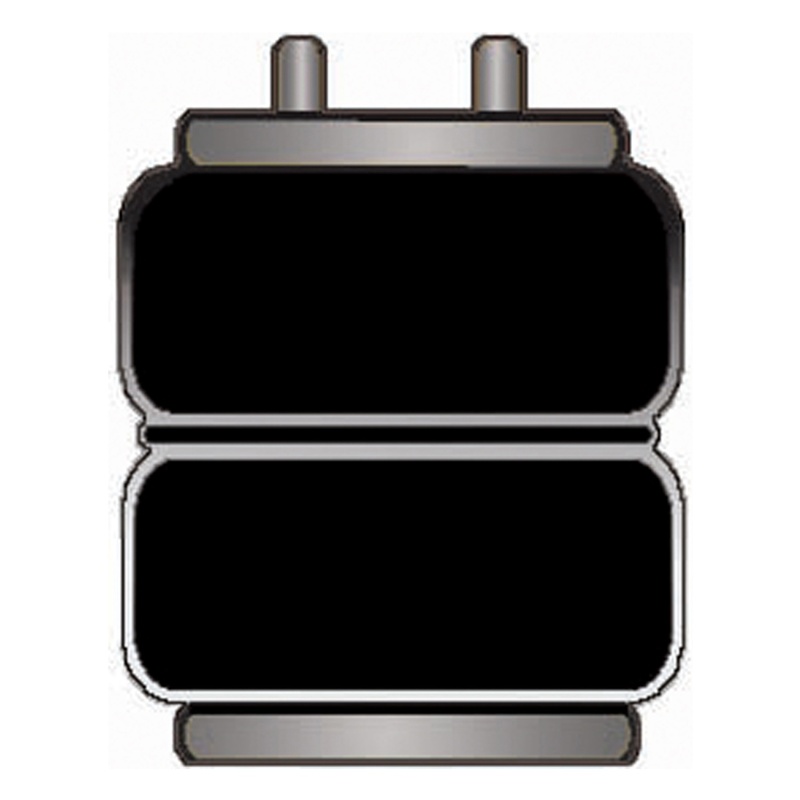

Double convoluted bellows design with a 7-inch height and 7.25-inch diameter.
Supports a maximum load of 2500 pounds when inflated to 100 psi.

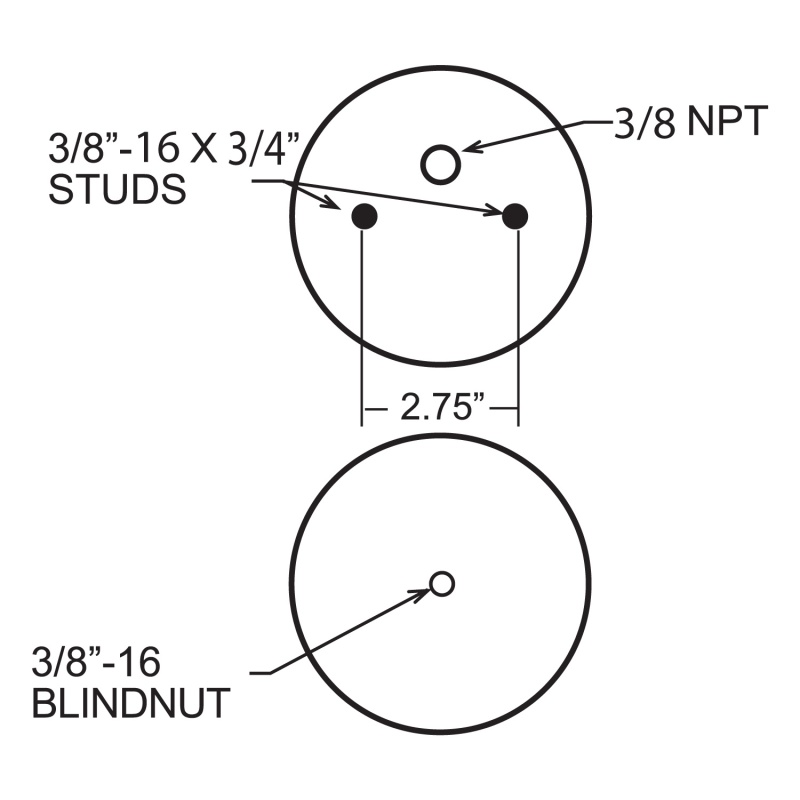

Features a 3/8 NPT air inlet for easy connection to air lines.
Adjustable air pressure allows for customized load support and helps keep the vehicle level.
Reduces suspension fatigue and helps prevent bottoming out under heavy loads.

This is a replacement bellows for Firestone Ride-Rite air helper spring kits. Verify your existing kit uses the 224C style bellows for proper fitment.

Secure CheckoutFast Shipping631-982-0042

Product Details

If you're hauling heavy loads or towing a trailer, you know how much strain it puts on your truck's rear suspension. Firestone Ride-Rite air helper springs are a popular way to add adjustable load support, and this 224C bellows is a direct replacement for that system. It's designed to fit between your vehicle's frame and suspension, helping to carry the load and keep your ride stable.

This double convoluted bellows has a 7-inch height and 7.25-inch diameter, and it can handle a maximum load of 2500 pounds at 100 psi. The air pressure inside is adjustable, allowing you to fine-tune the support based on your specific load. This not only helps prevent bottoming out but also keeps the vehicle level, even with off-center loads, which improves stability and can make for a more comfortable ride. The 3/8 NPT air inlet makes connecting your air lines straightforward.

This bellows is a replacement part for an existing Firestone Ride-Rite kit. Make sure to check your current system to confirm it uses the 224C style bellows to ensure a proper fit.
