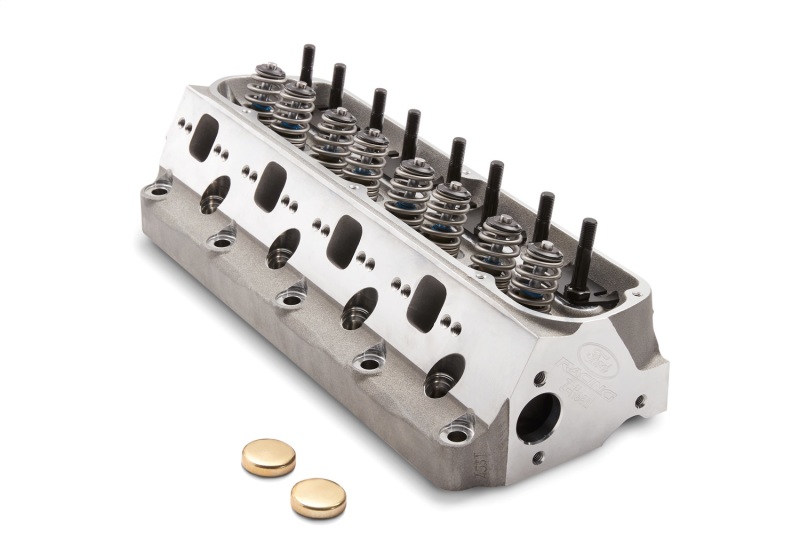

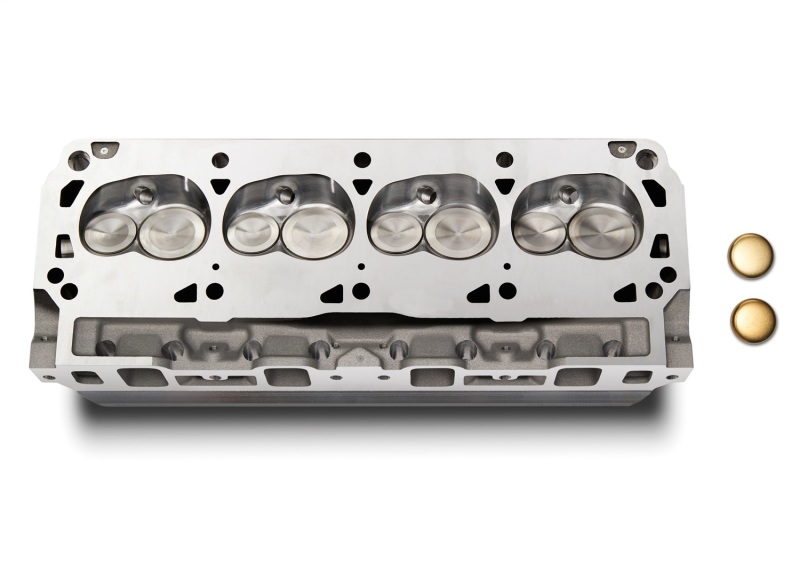

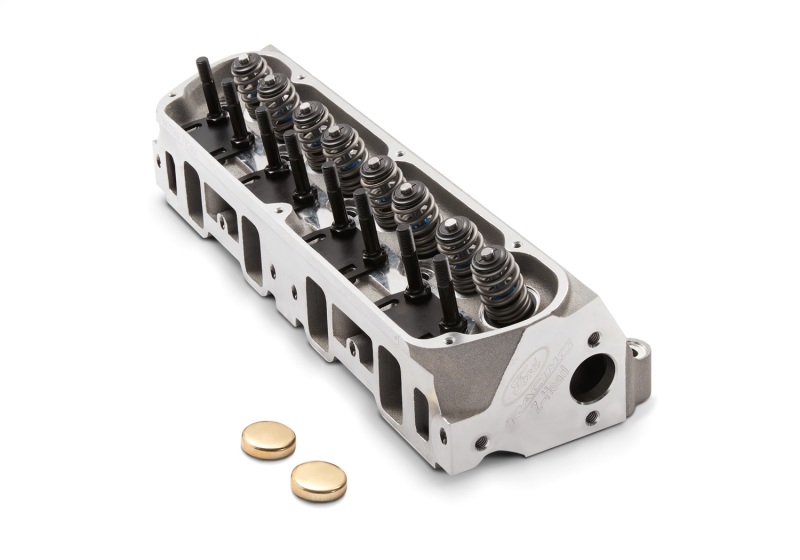

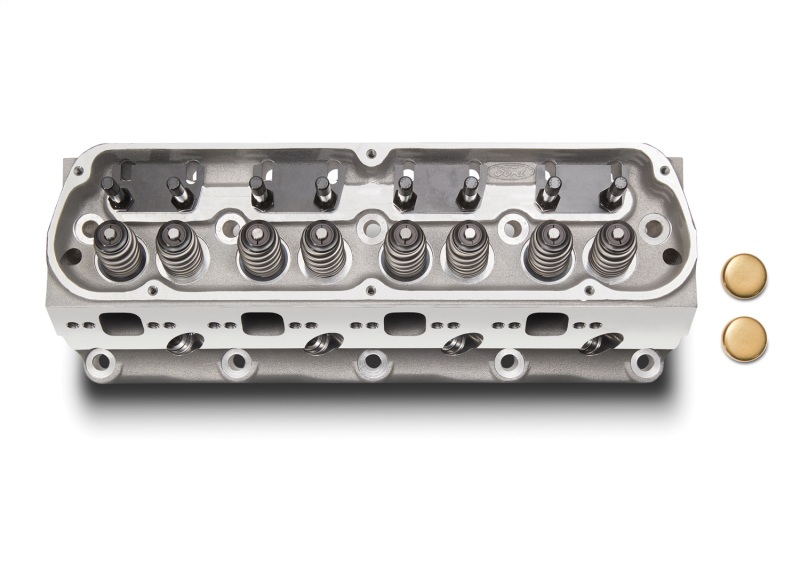

Ford Racing 302/351W Z-Head Aluminum - Assembled 63CC

When you're rebuilding the top end of your 302 or 351W engine, these Z-Heads from Ford Racing are a solid option. You get a pair of fully assembled aluminum cylinder heads, complete with installed steel alloy intake and exhaust valve seats, and manganese-bronze valve guides. The combustion chambers are CNC-machined to a precise 63cc volume, and the heads feature high-flow ports designed using solid modeling technology for improved airflow. They are cast from prime A356 T6 aluminum, a strong material chosen for its balance of weight and durability in performance applications. These heads fit a wide range of Ford vehicles, including Broncos, Econoline vans, and F-Series trucks from the late 60s through the mid-90s.

Ford Racing designed these heads with performance in mind. The 20-degree inline valves and the port volumes – 204cc for intake and 85cc for exhaust – are optimized for better breathing. While they come assembled, they do require a competition valve job and bowl blending to achieve their full potential. The laser-cut guideplates are included, and the heads are set up to accept both tapered seat and gasket-style 14mm spark plugs, giving you flexibility in your build. These heads are made in the USA, reflecting a commitment to quality manufacturing.

Because these heads are designed for competition use, they are not CARB approved and cannot be shipped to California. Be sure to check the manufacturer's specifications for any additional components or modifications needed for your specific engine build.
