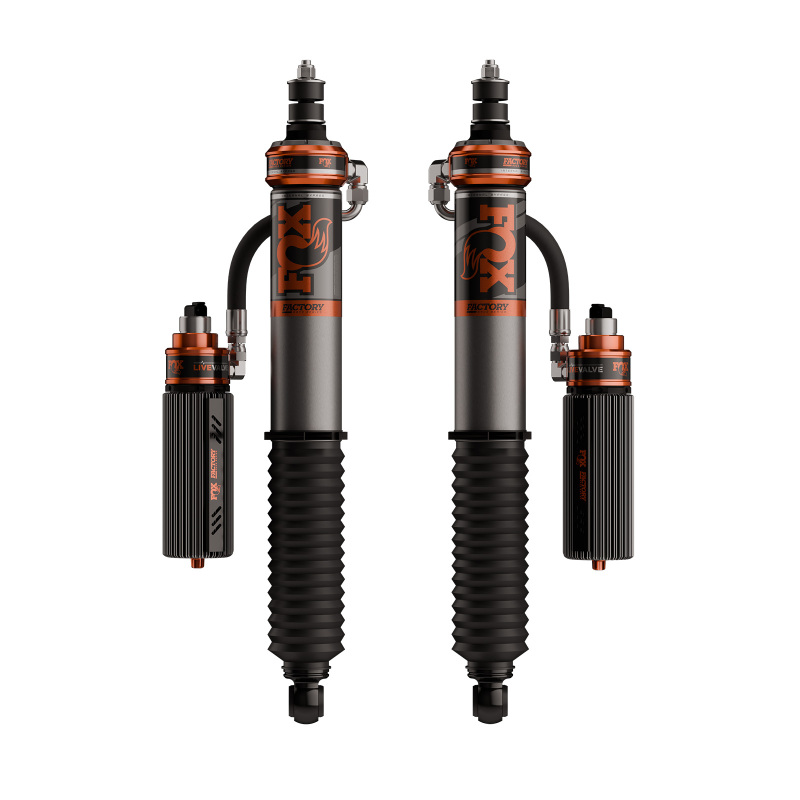

Fox 2024+ Toyota Tacoma 3.2 Factory Race Live Valve Internal Bypass Coilover Kit - 2-3in Lift

FOX's Live Valve technology does something no manual adjuster can -- it reads the terrain and your driving inputs 400 times per second and adjusts damping at all four corners automatically. On pavement, the ride stays smooth. On gravel, it firms up to keep the truck composed. In the whoops, it absorbs hits that would overwhelm a static-tuned shock. The 3.2-inch body on these Factory Race coilovers holds the oil volume and bypass valving to back up that electronic brain with real mechanical capability.

Connected Suspension -- Live Valve

Live Valve is FOX's connected suspension platform. Sensors monitor your speed, steering angle, braking, and terrain conditions continuously. The system adjusts compression and rebound damping in real time, independently at each corner. You do not have to stop and twist a knob when conditions change -- the system handles it faster than you could react.

3.2-Inch Internal Bypass

The 3.2-inch shock body is bigger than most coilovers on the market. More body diameter means more oil volume, which means more heat capacity before fade sets in. The internal bypass valving produces position-sensitive damping -- the shock gets progressively firmer as it compresses further, giving you a soft ride in normal driving and firm resistance when the suspension is working hard over big obstacles.

Variable Valve Control (VVC)

The DSC EVO technology features Variable Valve Control on the high-speed circuit. Unlike most compression adjusters that add preload, VVC adjusts leverage to isolate high-speed from low-speed damping precisely. The result is that you can add clicks of high-speed compression for big hits without sacrificing small-bump sensitivity on rough roads.

• 2-3 inch lift capability over stock

• Black anodized CNC machined aluminum components

• External reservoir system for fast heat dissipation

• Zinc plated seamless alloy body for corrosion resistance
