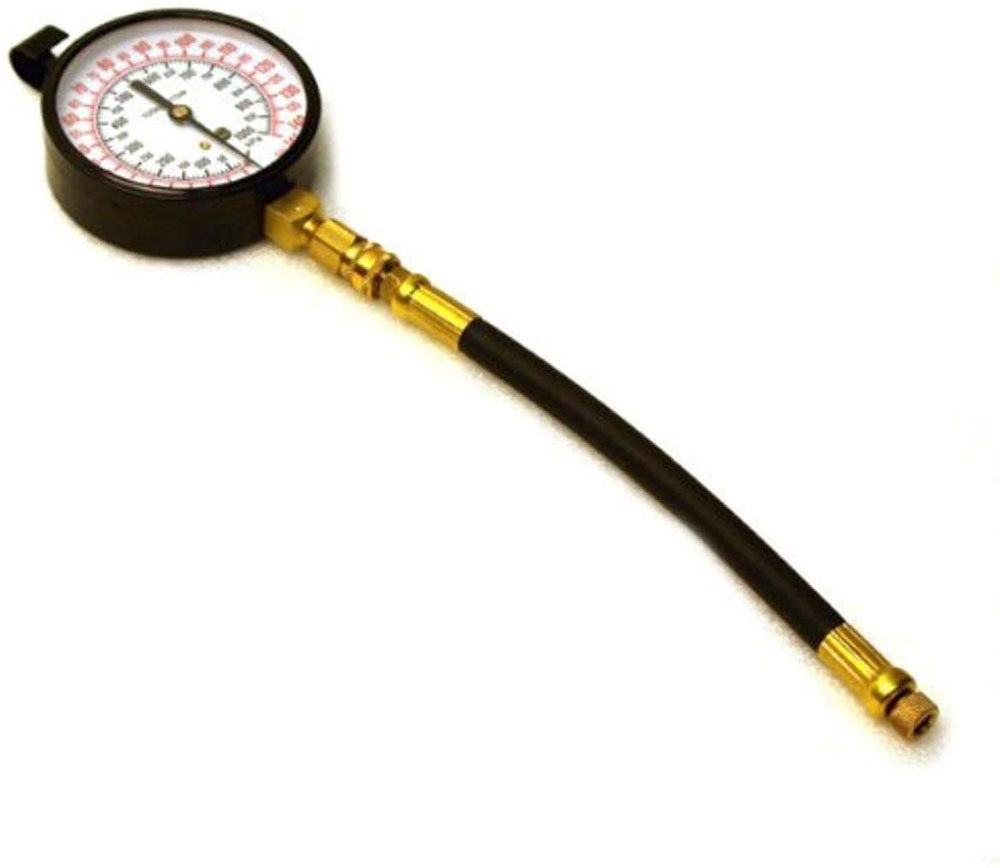

CTA Ford, BMW & Volvo Fuel Pressure Tester

• Takes fuel pressure on vehicles with the
  Schrader-type test port on the fuel rail
• 3-1/2" (90mm) gauge with dual
  calibration (5-145 PSI / 25-1,000 kPa)
• Quick couplers attached to both gauge and
  hose assembly to allow for additional adapter use
• ATTENTION - If gauge assembly is removed,
  re-apply thread seal when replacing gauge
• Heavy duty
• Very durable
• Made in USA

Instructions:

• Before making fuel injection test, check for
  adequate fuel and voltage � 12 volts or over
• With engine off, locate fuel pressure
  port and attach fuel pressure gauge
• CAUTION: Do not connect the valve
  to the air conditioning system
• Start the engine and observe pressure
• Higher pressures could be caused by a
  defective pressure regulator or a
  kink in the return line hose
• WARNING: Do not continue to operate
  with significantly higher than normal pressures
  as you may blow the fuel injection lines
• Lower pressures could be caused by a
  clogged fuel filter, defective fuel pump
  or pressure regulator
