What is the benefit of using Ni-Resist material for this turbine housing?

Ni-Resist is a type of cast iron alloy that offers superior resistance to high temperatures and thermal shock compared to standard cast iron. This means it's less likely to crack or warp under the extreme heat generated by exhaust gases, leading to greater durability in performance applications.

What does the 0.63 A/R ratio mean for performance?

The A/R ratio, or Area/Radius, affects how quickly the turbocharger spools up and how much air it can flow at higher engine speeds. A 0.63 A/R is considered a smaller ratio, which generally promotes faster boost response and quicker acceleration from a stop or at lower RPMs.

Does this turbine housing come with a wastegate actuator?

This product is the turbine housing only. It is designed for internal wastegate applications, meaning it has the port for a wastegate actuator, but the actuator itself is a separate component and is not included with this housing.

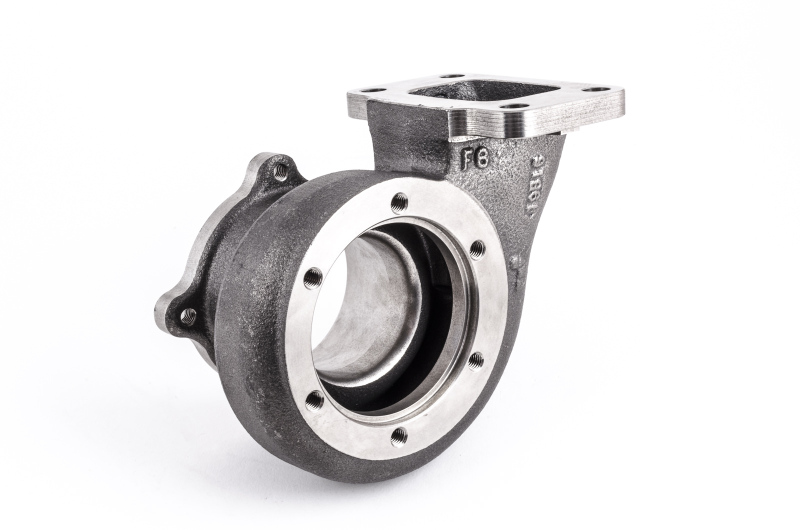

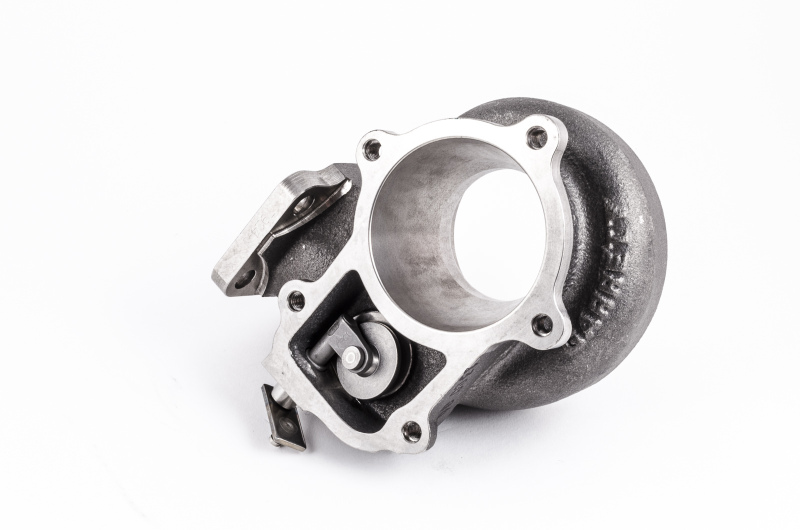

Garrett GT30R Turbine Housing 0.63 A/R T3 771300-0006

Name: Garrett GT30R THWA 0.63 A/R T3 (int w/g - 5 bolt out) (Ni-Resist)
Brand: Garrett
SKU: garrett-garrett-gt30r-thwa-0-63-a-r-t3-int-w-g-5-bolt-out-ni-resist-t14-22839
Price: 526.21 USD
Availability: InStock

Garrett GT30R THWA 0.63 A/R T3 (int w/g - 5 bolt out) (Ni-Resist)

$526.21

Only 1 left in stock

Garrett GT30R THWA 0.63 A/R T3 (int w/g - 5 bolt out) (Ni-Resist)grt771300-0006

Key Features

Fits Garrett GT30R turbochargers.
Features a 0.63 A/R ratio for a balance of spool and top-end flow.
T3 inlet flange for broad compatibility.
Designed for internal wastegate applications.
Includes a 5-bolt exhaust outlet pattern.
Constructed from Ni-Resist cast iron for high-temperature resistance.

This turbine housing is designed to fit Garrett GT30R turbochargers. Always confirm compatibility with your specific turbocharger core and manifold before installation.

Secure CheckoutFast Shipping631-982-0042

Product Details

This is a Garrett GT30R turbine housing, specifically the THWA model with a 0.63 A/R ratio and a T3 inlet flange. It's designed for internal wastegate applications and features a 5-bolt exhaust outlet. The Ni-Resist material used in its construction is known for its excellent thermal stability and resistance to high temperatures, which is crucial for the demanding environment inside a turbocharger. This housing is a key component for anyone looking to build or upgrade a performance turbo system, offering a specific airflow characteristic that can be tuned for improved engine response and power.

The 0.63 A/R (Area/Radius) ratio on this housing strikes a balance between quick turbo spool-up and the ability to flow enough exhaust gas at higher RPMs. A smaller A/R like this generally leads to faster boost response, making the engine feel more lively off the line and during mid-range acceleration. The T3 inlet flange is a very common size for many aftermarket and some factory turbocharger setups, making it a versatile choice for custom builds. The internal wastegate port is already integrated, simplifying installation if your turbo setup uses an internal wastegate. The 5-bolt exhaust outlet is also a standard pattern, allowing for easy connection to a variety of downpipes with the correct flange.

Garrett is a well-known name in the forced induction world, and this turbine housing is built to their standards. The Ni-Resist cast iron is a significant upgrade over standard cast iron for high-performance applications, as it can better withstand the extreme heat cycles without cracking or warping. This makes it a solid option for builds that will see frequent track use or aggressive driving. Keep in mind that this part is not CARB approved and cannot be shipped to California. Always refer to the manufacturer's installation instructions for proper fitment and assembly with your specific turbocharger core and exhaust manifold.
