Specifications
- Brand
- Gates
- Part #
- G31100-0406
- Dimensions
- 9.6" x 9.6" x 9.6"
- UPC
- 00029769154083
- Package Length
- 9.6 in
- Package Width
- 9.6 in
- Package Height
- 9.6 in
- Package Weight
- 25.3 lb
- Interchange Part Numbers
- IMI Norgren 95 453 018, Alkon Corp AQ-68-DOT-4X6, 04034354, Weatherhead 1868X4X6, NAPA G31100-0406, Parker 68PMT-4-6, Lawson 91787

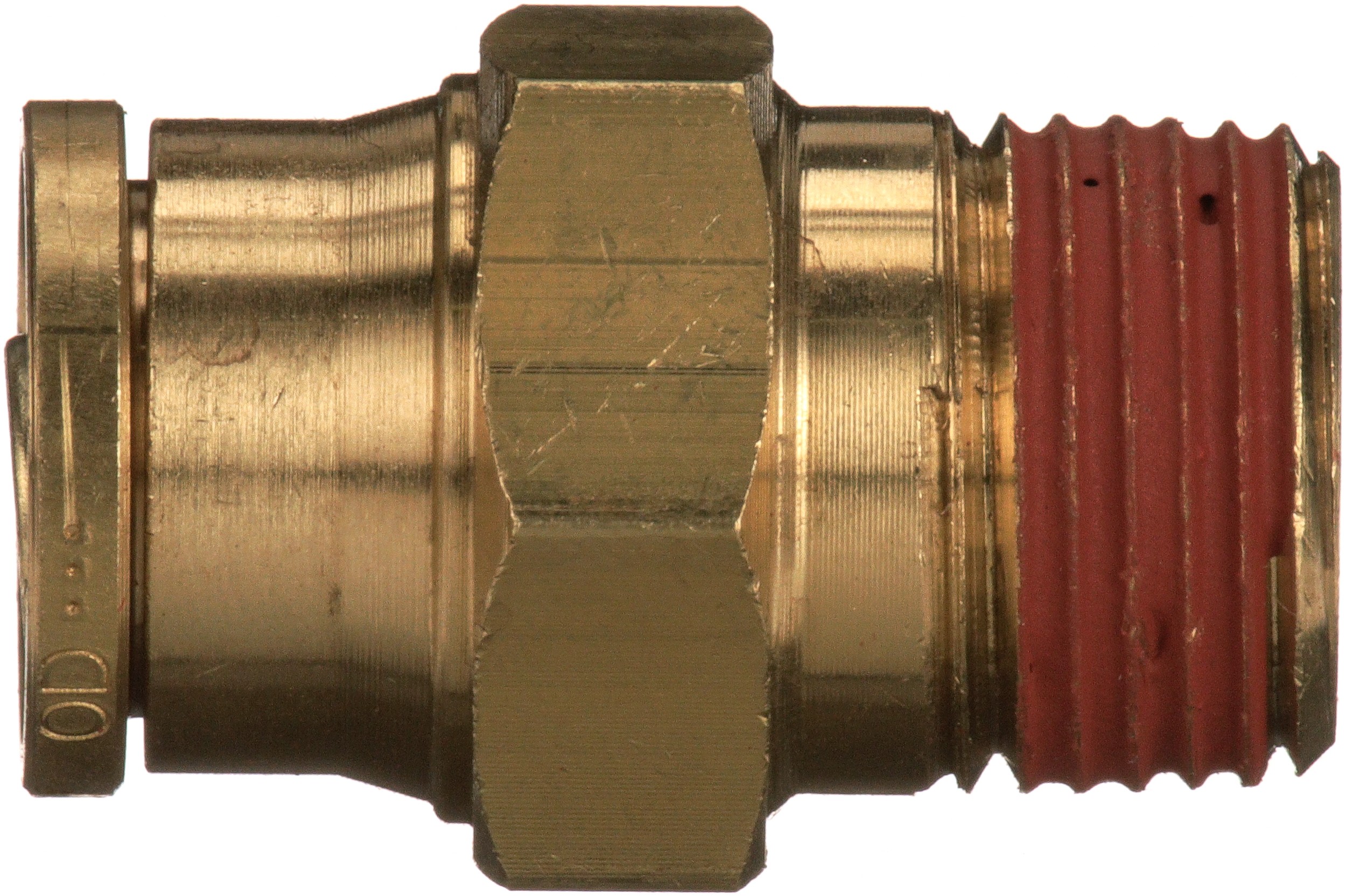

Air Brake to Male Pipe (SureLok)
$8.12
Only 6 left in stock
Key Features
- Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
- Tube support prevents tube collapse during severe loading conditions
- Collet teeth grip the tube, holding it firmly in the fitting
- Internal O-Ring provides a seal and necessary interference between tube and fitting body
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 9.6 in
Add your vehicle to track confirmations →
About this part
Product Details
Recommended for air brake systems – compressed air connectors or suspension, steering, engine transmission or other onboard vehicle applications. Not for fuel, oil or water. Easy to assemble, push to connect, one piece fitting. Reusable and field serviceable. Designed for strength and durability. Provides significant reduction in air system leakage. Meets DOT FMVSS 571.106, SAE J1131, DIN 74324 and German TUV requirements. For use with SAE J844 or DIN 74324 nylon tubing. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).
Description
Air Brake to Male Pipe (SureLok)Specifications
- Brand
- Gates
- Manufacturer Part #
- G31100-0406
- Dimensions
- 9.6" x 9.6" x 9.6"
- UPC
- 00029769154083
- Package Length
- 9.6 in
- Package Width
- 9.6 in
- Package Height
- 9.6 in
- Package Weight
- 25.3 lb
- Interchange Part Numbers
- IMI Norgren 95 453 018, Alkon Corp AQ-68-DOT-4X6, 04034354, Weatherhead 1868X4X6, NAPA G31100-0406, Parker 68PMT-4-6, Lawson 91787
Air Brake to Male Pipe (SureLok)
$8.12
