Specifications
- Brand
- Gates
- Part #
- G20407-1212
- Dimensions
- 4.7" x 1.7" x 1.7"
- UPC
- 00072053399523
- Package Length
- 4.7 in
- Package Width
- 1.7 in
- Package Height
- 1.7 in
- Package Weight
- 0.86 lb
- Interchange Part Numbers
- Aeroquip 1E12CTA12, Dayco 101851U, N12-12FLC45, Goodyear 29190-1212, Weatherhead 4SP12WK42, Goodyear 28190-1212, Aeroquip 4S12CTA12, Weatherhead 57012SK42, Weatherhead 57012S-K42, NAPA G20407-1212, Parker 1XF78-12-12, M83941-12-12

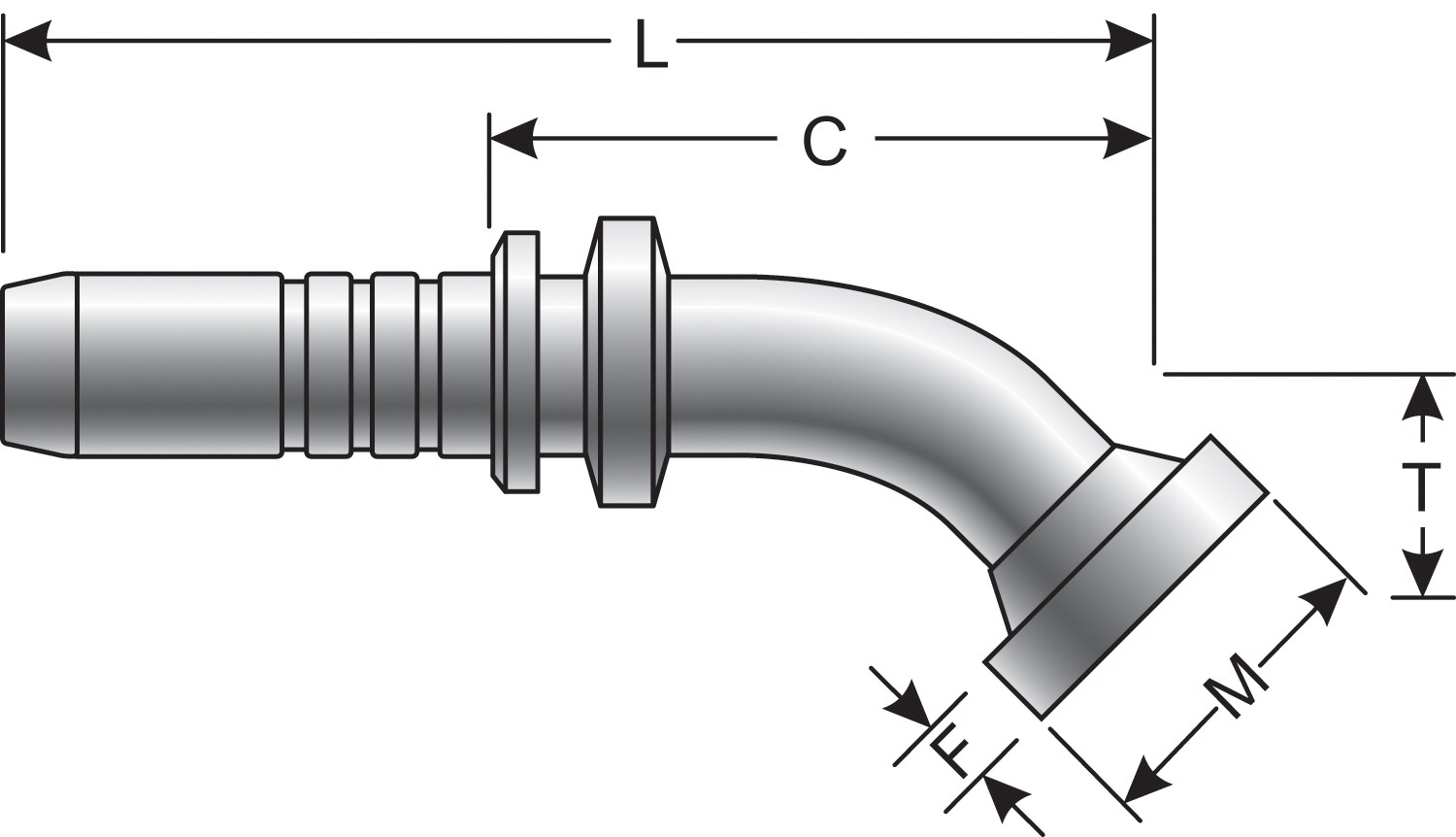

Caterpillar Style O-Ring Flange - 45 Bent Tube (GlobalSpiral)
$73.91
In Stock
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 4.7 in
Add your vehicle to track confirmations →
About this part
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. MGS Couplings for use with MC4-20 Crimper Only.
Description
Caterpillar Style O-Ring Flange - 45 Bent Tube (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20407-1212
- Dimensions
- 4.7" x 1.7" x 1.7"
- UPC
- 00072053399523
- Package Length
- 4.7 in
- Package Width
- 1.7 in
- Package Height
- 1.7 in
- Package Weight
- 0.86 lb
- Interchange Part Numbers
- Aeroquip 1E12CTA12, Dayco 101851U, N12-12FLC45, Goodyear 29190-1212, Weatherhead 4SP12WK42, Goodyear 28190-1212, Aeroquip 4S12CTA12, Weatherhead 57012SK42, Weatherhead 57012S-K42, NAPA G20407-1212, Parker 1XF78-12-12, M83941-12-12
