Specifications
- Brand
- Gates
- Part #
- G20410-2024
- Dimensions
- 7.0" x 2.5" x 2.5"
- UPC
- 00072053456387
- Package Length
- 7.0 in
- Package Width
- 2.5 in
- Package Height
- 2.5 in
- Package Weight
- 2.73 lb
- Interchange Part Numbers
- Aeroquip 6S24CTE20, Parker 1XM78-24-20, NAPA G20410-2024, 04031158, Aeroquip 4S24CTE20, Weatherhead 6SP20WBE24, Goodyear 28194-2024

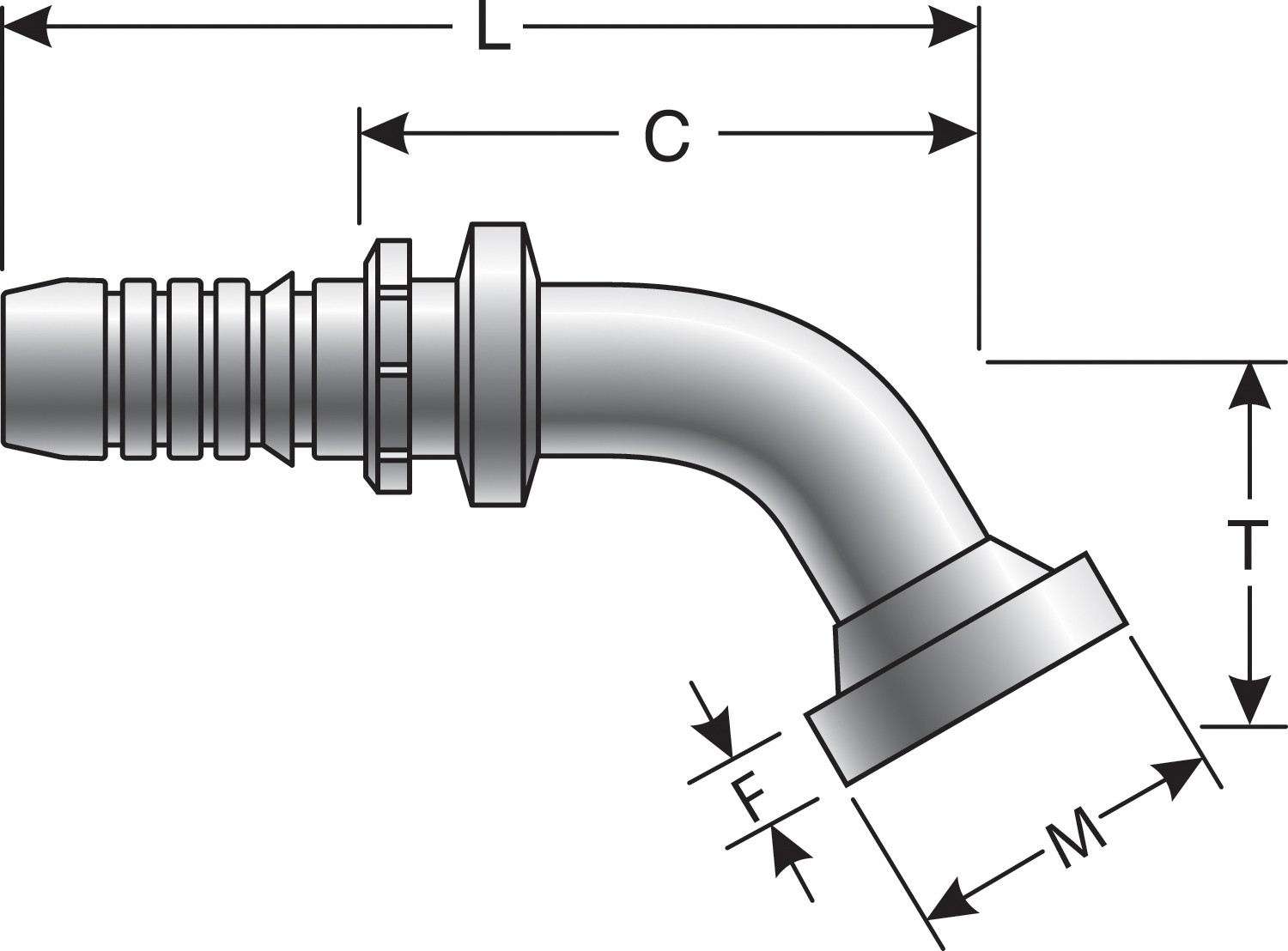

Caterpillar Style O-Ring Flange - 67 1/2 Bent Tube (GlobalSpiral)
$163.18
In Stock
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 7.0 in
Add your vehicle to track confirmations →
About this part
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. MGS Couplings for use with MC4-20 Crimper Only.
Description
Caterpillar Style O-Ring Flange - 67 1/2 Bent Tube (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20410-2024
- Dimensions
- 7.0" x 2.5" x 2.5"
- UPC
- 00072053456387
- Package Length
- 7.0 in
- Package Width
- 2.5 in
- Package Height
- 2.5 in
- Package Weight
- 2.73 lb
- Interchange Part Numbers
- Aeroquip 6S24CTE20, Parker 1XM78-24-20, NAPA G20410-2024, 04031158, Aeroquip 4S24CTE20, Weatherhead 6SP20WBE24, Goodyear 28194-2024
